640453-7
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .100 TIN Headers & Wire Housings FLAT HEADER 7P Right Angle Post tin Header;MTA-100;7;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP 07P MTA100 HDR ASSY SQ R/A |
| Category |
Business
| Other Names | A19342 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant,UL94V-0 |
| UL Rating | 获得认可 | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| UL File Number | E28476 | Approval Agency | CSA,UL |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | 焊接 |
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Length | 17.78 mm [ .7 in ] | Packaging | Bulk |
| Port Size | 0.025in. | Shrouding | No |
| Body Color | 自然 | Wire Gauge | 28-22 |
| Termination | Solder | Contact Type | Male Pin |
| Length - Pin | 0.14" | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | White |
| Mounting Type | Right Angle | Angle of Throw | Right |
| Connector Type | Header, Unshrouded | Contact Finish | Tin Over Nickel |
| Contact Timing | Without | Mounting Style | PCMount |
| Number of Rows | 1 | Plating - Body | Tin |
| Shell Material | 普通 | Connector Usage | Header |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Length - Overall | 0.7" |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Pin Hole Diameter | 0.1" |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Without | Number of Contacts | 7 |
| Termination Finish | 不带 | Contact Termination | Tin |
| Insulation Diameter | 0.06"(SingleWire),0.05"(MassTerminationWires) | Number of Positions | 7 |
| Backshell Interrupts | Without | Compatible Shell Size | MTA .100 连接器组件 |
| Contact Length - Post | 3.56 mm [ .14 in ] | Center Contact Plating | 0.100in. |
| Length - Post (Mating) | 0.14in. | Mounting Hole Diameter | 0.04" |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Material - Post | Copper Alloy |
| Surface Mount Land Size | Without | Termination Post Length | 3.56 [0.140] |
| Contact Finish Thickness | 3.81 µm [ 150 µin ] | Small Diameter Recovered | No |
| Static Discharge Shielding | 不带 | Jacket (Insulation) Thickness | 1.27 µm, 50 µin |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | MTA-100 | Features | IDC,Pinstrip |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Printed Circuit Board |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55to+105°C | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts
643813-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 22AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 7P red tin 22 AWG Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100CONNECTORTIN,07PMTA100CONNASSYPOLRIB 07P MTA100 CONN ASSY POL RIB
3-643815-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 26AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 7P blue tin 26 AWG Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA100 CONN ASSY POL RIB
3-640441-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 24AWG MTA100 MTA 7 way cable SKT 2.54mm Headers & Wire Housings CLOSED W/O TABS 7P white tin 24 AWG Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 7WAY Connector;ClosedEnd;7;0.100in.;24AWG Cable socket, straight 7P, 3-640441-7, TE Connectivity TE Connectivity MTA-100 系列 7路 2.54mm节距 直角 电缆安装 母 IDC 连接器 07P MTA100 CONN ASSY WHT
1375820-7
te connectivity / amp
Conn Housing RCP 7 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 7POS CST-100 II CST-100 II Socket Housing 7P Headers & Wire Housings RCPT 7 POS CST-100 Conn Housing RCP 7 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 7Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 7POS, 2.54MM CST-100IIHOUSING7POS CST-100 II HOUSING 7 POS
3-641237-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG MTA-100 Headers & Wire Housings 07P MTA100 CONN ASSY RED 30AU Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA100 CONN ASSY RED 30AU
640621-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 24AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 7P white tin 24 AWG 07P MTA100 CONN ASSY F/T NATL
644426-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG MTA-100
3-644702-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG .100 RED Headers & Wire Housings 07P MTA100 CONN ASSY F/T LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:7 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA100 CONN ASSY F/T LF
3-640442-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 26AWG MTA100 7 way MTA cable mount skt,2.54mm 26awg Headers & Wire Housings CLOSED W/O TABS 7P blue tin 26 AWG Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, IDC, 26AWG, 7WAY 07PMTA100CONNASSYBLU TE Connectivity MTA-100 系列 7路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 07P MTA100 CONN ASSY BLU
3-647480-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 26AWG .100 BLUE Headers & Wire Housings 07P MTA100 CONN ASSY W/TABS LF 07P MTA100 CONN ASSY W/TABS LF
3-641314-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 28AWG .100 GREEN
3-644726-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 26AWG .100 BLUE Headers & Wire Housings 07P MTA100 CONN ASSY W/TB LF 07P MTA100 CONN ASSY W/TB LF
3-641198-7
te connectivity / amp
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS 22AWG .100 RED Headers & Wire Housings 07P MTA100 CONN ASSY RED LF 07P MTA100 CONN ASSY RED LF

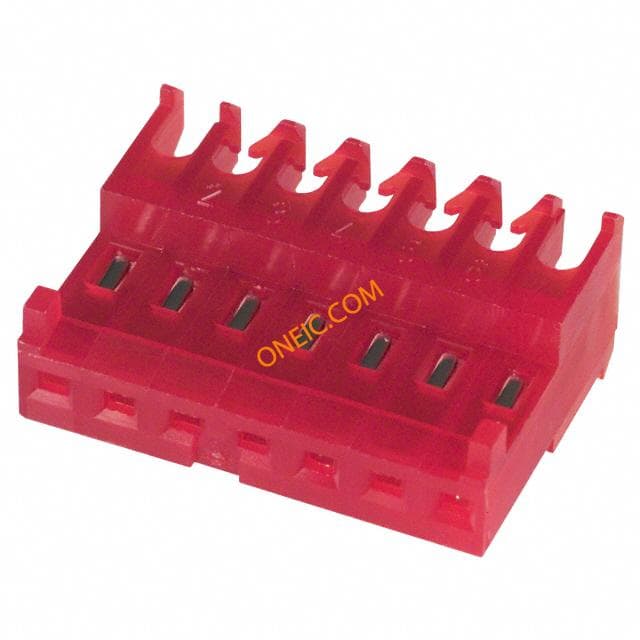

644540-7
