640443-5
| Manufacturer | |
| Description | Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5POS 28AWG MTA100 Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 05P MTA100 CONN ASSY GRN |
| Category |
Business
| Other Names | A19053 | Standard Package | Bulk |
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage - Supply | 250 | Voltage - Rated AC | 250 |
| Connector Impedance | IDC | Current Rating (Max) | 5 |
Mechanical
| Color | Green | Pitch | 2.54 mm |
| Height | 6.99 mm [ .275 in ] | Length | 12.7 mm [ .5 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Exit | 90° | Cable Type | 分离式导线, 绞线 |
| Wire Gauge | 28 AWG | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | Green | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Closed End | Contact Finish | Tin-Lead Over Nickel |
| Contact Timing | Without | Fastening Type | Locking Ramp |
| Mounting Style | 不带 | Number of Rows | 1 |
| Shell Material | 标准 | Connector Usage | Receptacle |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | 插座 |
| Mating Orientation | Without | Number of Contacts | 5 |
| Termination Finish | 带有 | Contact Termination | Locking Lance |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 5 |
| Compatible Shell Size | MTA .100 头和 MTA .100 IDC 柱形连接器 | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡铅 | Contact Layout, Typical | 2.54 [0.100] |
| Surface Mount Land Size | Without | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.08-0.09² [28] |
| Static Discharge Shielding | 带有 | ||
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Features | Closed End |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Similar Parts
2-644488-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 5POS .100 TIN Header right angle 5 way Pin MTA-100 Headers & Wire Housings SHROUDED HEADER 5P Right Angle Post tin Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 5Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Headerrightangle5wayPinMTA-100 TE Connectivity MTA-100 系列 5路 2.54mm节距 直角 公 IDC 连接器 , 通孔 05P MTA100 SHRD HDR F/L R/A SN
3-647009-5
te connectivity / amp
Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 5POS 24AWG .100 WHITE
644803-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG .100 5POS TIN Headers & Wire Housings 05P MTA100 SHRD HDR ASSYT RA FL
644486-5
TE Connectivity / AMP
Headers & Wire Housings SHROUDED HEADER 5P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 5POS TIN Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector5 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641214-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 5POS 30AU Headers & Wire Housings POLARIZED HEADER 5P R.A. Post gold Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

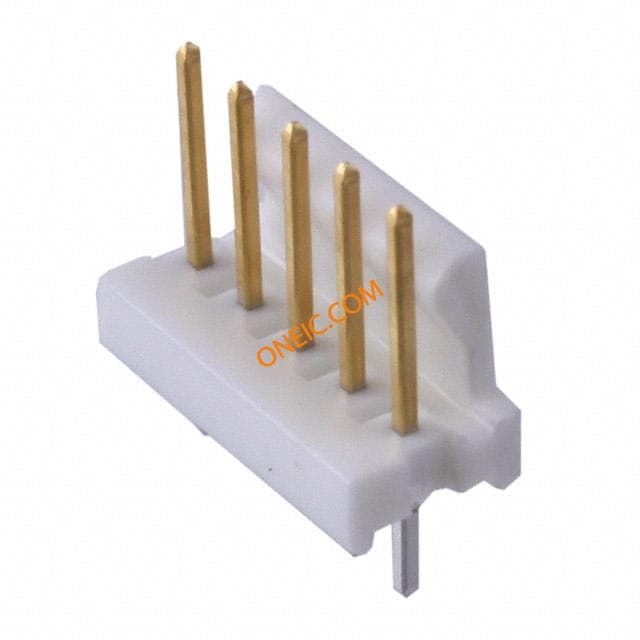

3-641126-5
