640427-7
| Manufacturer | |
| Description | Conn IDC Connector F 7 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 20AWG MTA156 Headers & Wire Housings CLOSED W/O TABS 7P L.R. yellow 20 AWG 07P MTA156 CONN ASSY 20AWG YEL |
| Category |
Business
| Other Names | A19595 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 600 VAC | Switch Function | Locking Ramp |
| Voltage - Supply | 600 | Connector Impedance | 刺破式压接 (IDC) |
| Current Rating (Max) | 7 A | ||
Mechanical
| Color | Yellow | Pitch | 3.96 mm |
| Height | 9.02 mm [ .355 in ] | Length | 27.74 mm [ 1.092 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Body Color | 黄色 |
| Cable Type | 分离式导线 | Wire Gauge | 20 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin-Lead Over Nickel | Contact Timing | Without |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Pins | 7 | Number of Rows | 1 |
| Package / Case | Receptacle | Shell Material | 标准外形 |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Package Quantity | 250 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 7 | Contact Termination | Locking Lance |
| Insulation Diameter | 2.41 mm [ .095 in ] | Number of Positions | 7 |
| Compatible Shell Size | MTA .156 公端 | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡铅 | Contact Layout, Typical | 直插式 |
| Contact Finish Thickness | 80µin (2.03µm) | Static Discharge Shielding | 带有 |
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-156 | Features | Closed End |
| Product Type | Connector Assemblies | Installation Type | Closed End |
| Output Configuration | 90° | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
640383-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR SQ SN
640385-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
641208-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 7POS 30AU Headers & Wire Housings FRCTN LK HDR STR 7P Square post gold Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header7 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY FL ST 30AU
640384-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Round post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR RND SN
643995-6
te connectivity / amp
Conn IDC Connector M 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 6POS 22AWG MTA-156 Headers & Wire Housings 06P MTA156 PST CONN ASSY 22AWG 06P MTA156 PST CONN ASSY 22AWG 06P MTA156 PST CONN ASSY 22AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644766-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD
641120-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD Headers & Wire Housings 07P MTA156 HDR ASSY FL/ST 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644751-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings 7P HDR ASSY R/A 07P MTA156 HDR ASSY R/A
647123-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 TIN Headers & Wire Housings 07P MTA156 SHRD HDR ASSY SQ SN 07P MTA156 SHRD HDR ASSY SQ SN 07P MTA156 SHRD HDR ASSY SQ SN Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
647481-6
te connectivity / amp
Conn IDC Connector M 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 06P MTA156 PLUG CONN 18AWG FT Headers & Wire Housings 06P MTA156 PSTD CONN 18AWG FT 06P MTA156 PSTD CONN 18AWG FT 06P MTA156 PSTD CONN 18AWG FT Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641439-6
te connectivity / amp
Conn IDC Connector M 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 6POS MTA156 26AWG BLUE Headers & Wire Housings 06P MTA156 PST CON ASSY BLUE 06P MTA156 PST CON ASSY BLUE 06P MTA156 PST CON ASSY BLUE Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640389-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A F/L
640388-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 7P Round post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector7 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 7POS, 3.96MM MTA-156HEADER-TIN,07PMTA156HDRASSYRNSTRF/L TE Connectivity MTA-156 系列 3.96mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 07P MTA156 HDR ASSY RN STR F/L
647143-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD 07P MTA156 SHRD HDR ASSY SQ AU 07P MTA156 SHRD HDR ASSY SQ AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640445-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR STR 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 7WAY Connector,MTA-156;Male;7;CopperAlloy;7;600;0.156in.;Polyester;White 07P MTA156 HDR ASSY FL/STR SN
644752-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings HEADER VERT 7POS TIN Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ STR F/L
641210-7
TE Connectivity / AMP
Headers & Wire Housings FRCTN LK HDR RA 7P Square post gold MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS R/A .156 30GOLD

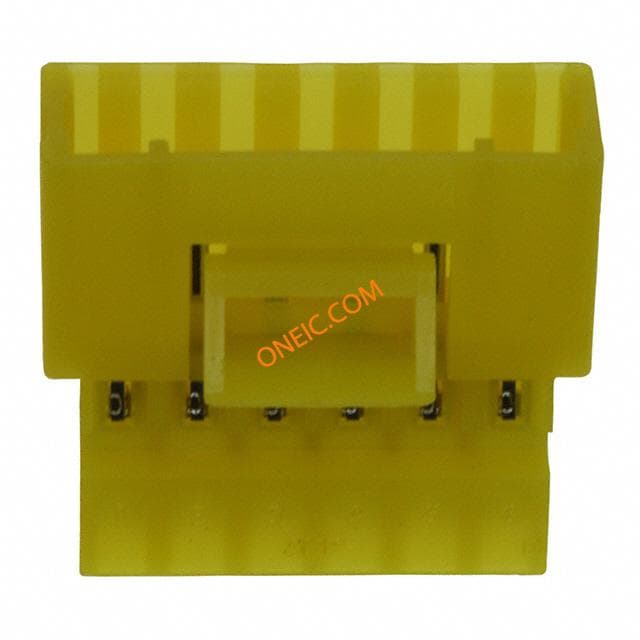

641436-6
