60635-1
| Manufacturer | |
| Description | Quick Disconnect Terminal 10-14AWG RCP 8.5mm Tin Strip on Reel Terminals .250 FAST REC 14-10 FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 10-14 AWG .250 Receptacle terminal,FASTON 250,AWG 14-10 Quick Disconnect Terminal 10-14AWG RCP 8.5mm Tin Strip on Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP FASTONPREMIERRECST,.250FASTREC14-10TPBR TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FASTON 250 RECEPTACLE 14-10 AWG TPBR |
| Category |
Business
| Product | Faston Terminals | Product Category | Terminals |
| Standard Package | 6,000 | Factory Pack Quantity | 6000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| UL Listing | Listed | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | Yes | ||
Electrical
| Connector - Voltage Input | Without | ||
Mechanical
| Color | Tin | Depth | 8.5 mm |
| Finish | Tin | Length | 19.69 mm |
| Weight | 0.01 | Material | Brass |
| Packaging | Reel | Tab Width | 6.35 x 0.81 [.250 x .032] |
| Thickness | 0.46 [0.018] | Cable Type | Stranded |
| Insulation | Not Insulated | Tab Length | 0.305" (7.75mm) |
| Wire Gauge | 14-10 | Termination | Crimp |
| Body Material | Brass | Mounting Type | Wire |
| Stud/Tab Size | 0.301 in x 0.305 in | Tab Thickness | 0.032" (0.81mm) |
| Terminal Type | Standard | Angle of Throw | Straight |
| Connector Type | Quick Disconnect Terminal | Contact Finish | Tin |
| Plating - Body | Tin | Bundle Diameter | 5 mm |
| Connector Style | Straight | Foil Crimp Area | F-Crimp |
| Insertion Force | Normal | Contact Material | Brass |
| Insulation Color | :Uninsulated | Length - Overall | Premier |
| Package Quantity | Strip | Primary Material | QuickDisconnect |
| Insulation Height | Insulation Support | Termination Style | Crimp |
| Insulation Diameter | (2) 4.06 [.140] Max., 5.72-6.99 [.225-.275] | Wire Gauge or Range - AWG | :14AWG |
| Wire Gauge or Range - mm2 | (2) 2.00; [(2) 14], 2.00-6.00² [14-10] | 2nd Connector Mounting Feature | No |
Product Info
| Note | 9,600 CMA maximum. | Type | Quick Disconnect Ter |
| Gender | Female | Series | 250 |
| Manufacturer | AMP | Product Type | Receptacle |
Similar Parts
1-520935-2
te connectivity / amp
Conn Housing RCP 2 POS 15.11mm Crimp ST Cable Mount Positive Lock Connectors CONN RCPT HSG 2POS .250 RED Terminals HSG RECP.POSI LOCK&STD FAST250 Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 x 0.81 mmLine = FASTON .250Number of Positions = 2Color = RedSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL 250 HOUSING REC RED 6/6 NYLON V2
1-480416-8
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece FASTON Uninsulated Receptacles & Housings CONN RCPT HSG .250 1POS NATRL Headers & Wire Housings HSG 250 S CIR FAST 4/6 NAT FASTON Uninsulated Receptacles & Housings Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 250 HSG NYLON NAT
926539-5
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Cable Mount Loose Piece Headers & Wire Housings HOUSING BLACK FASTON Uninsulated Receptacles & Housings CONN HOUSING 1POS .250 BLACK FASTON, housing, black, 6.35 Conn Housing RCP 1 POS Crimp ST Cable Mount Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmPolyester MaterialHousing Color = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON,HOUSING,BLACK,6.35 TE Connectivity AMP FASTON 系列 1 触点 黑色 尼龙 压接端子外壳 FASTON 250 HSG PBT BLACK
170823-2
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .250 FASTON .250,Connector sleeve,natural Terminals INSU SLV 250 SER Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece Product Highlights:Insulation SleeveInsulation Diameter = 2.50 [.098] Max. mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .250Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONNECTORSLEEVE,NATURAL TE Connectivity 24mm 压接端子盖
1-735075-0
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece FASTON Uninsulated Receptacles & Housings CONN RCPT HSG .250 1POS NATRL Crimp, Faston, housing, 6.35mm, 1 way Terminals FASTON HSG FEM 6 35 1W Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmPolyamide 6.6 MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING HOUSING, FASTON, 6.35MM, 1WAY TE Connectivity AMP FASTON 系列 1 触点 尼龙 66 压接端子外壳 FASTON .258 SERIES (6.35 MM)

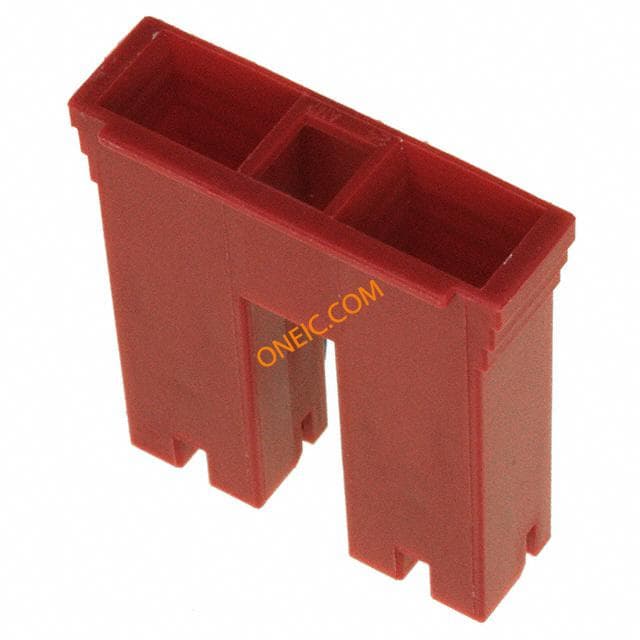

520935-2
te connectivity / amp
Conn Housing RCP 2 POS 15.11mm Crimp ST Cable Mount Positive Lock Connectors CONN POS LOCK & STD HSG RED .250 Terminals .25 POS LOCK Conn Housing RCP 2 POS 15.11mm Crimp ST Cable Mount Product Highlights:Receptacle HousingTab Fit = 6.35 x 0.81 mmLine = FASTON .250Receptacle Style = StraightNumber of Positions = 2Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL & STANDARD FASTON 250 HSG REC RED NYL
521229-1
te connectivity / amp
Conn Housing RCP 2 POS ST Headers & Wire Housings 250 FASTON RECPT HSG FASTON Uninsulated Receptacles & Housings CONN RCPT HSG .250 2POS NATRL 250 FASTON RECPT HSG 250 FASTON RECPT HSG Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING PL 250 HOUSING RECEPTACLE NYLON 6/6
170823-6
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .250 FASTON .250,Connector sleeve,natural Terminals SLEEVE FOR 250 F Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece Product Highlights:Insulation SleeveInsulation Diameter = 4.80 [.189] mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .250Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONNECTORSLEEVE,NATURAL TE Connectivity 25mm 压接端子盖

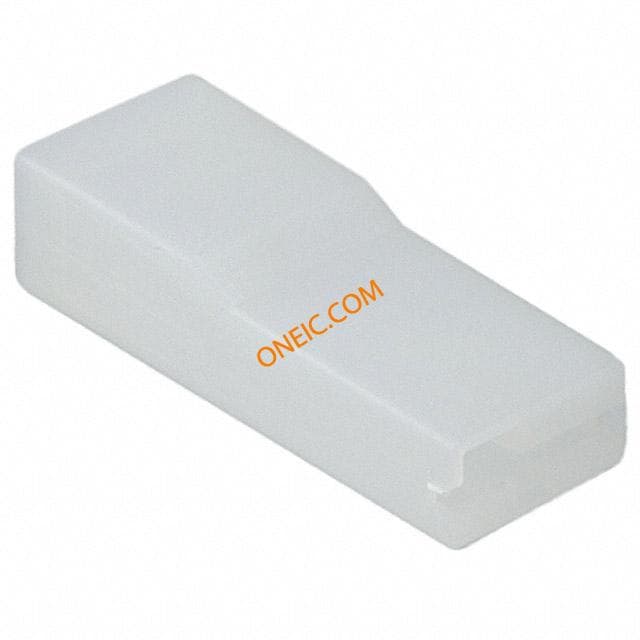

280232-6
