6-487937-0
| Manufacturer | |
| Description | Conn Housing RCP 60 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 60POS.050 DUAL W/LATCH FFC & FPC Connectors 060 HOUSING FFC 50CL DR LATCH Conn Housing RCP 60 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 60Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 060 HOUSING FFC 50CL DR LATCH |
| Category |
Business
| Product Category | FFC & FPC Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 100V | Voltage - Supply | 100 |
| Resistance - Input | 5000 | Voltage - Clamping | 300 |
| Connector Impedance | 锁闩, 锁闩 | Voltage - Breakdown | 300 |
| Current Rating (Max) | 1.5A | Insulation Resistance | 5,000 |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Cable Type | Flexible Flat Conductor Cable |
| 2nd Connector | With | Edge Contacts | No |
| Mounting Type | Straight | Connector Type | Housing for Female Contacts |
| Mounting Style | Cable | Number of Rows | 2 |
| Connector Usage | Receptacle | Insertion Force | Normal |
| Locking Feature | Latch | Housing Material | Thermoplastic |
| Package Quantity | 200 | Panel Mount Type | 不带 |
| Termination Style | 插座 | FFC, FCB Thickness | 0.05-0.08mm |
| Number of Contacts | 60 | Number of Positions | 60 |
| Mounting Hole Diameter | 带有 | Center Contact Material | 1.27 [0.050] |
Product Info
| Type | Housing | Gender | RCP |
| Features | Latch Lock | Product Type | Housing |
Environmental
| Temperature Range | -55 â +105 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
Similar Parts
104549-8
te connectivity / amp
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 60POS AU Headers & Wire Housings 60P DRST SMD HDR 396 60 SYS50 SURFMNT HDR DRST SHRD
147377-6
te connectivity / amp
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN HEADER 60POS SHD DL SMD AU Headers & Wire Housings 60 SYS50 SMT HDR DR 750 .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 60Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYS50 SMT HDR DR SHD W/O HD
104068-6
te connectivity / amp
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 60POS AU Headers & Wire Housings 60 SYS 50 DRST SHRD Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 60Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 HDR DRST SHRD

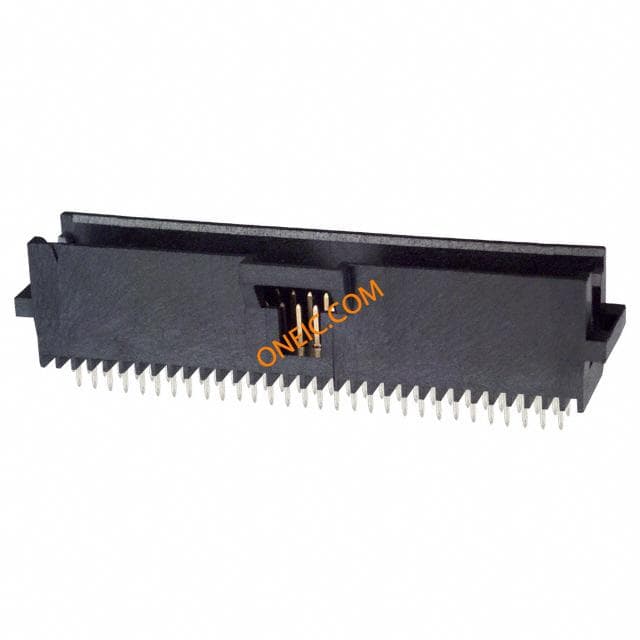

5-104068-6
te connectivity / amp
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 60POS 30AU Headers & Wire Housings 60 POS HDR VERT DUAL ROW Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 60Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 60 SYSTEM 50 HDR DRST SHRD

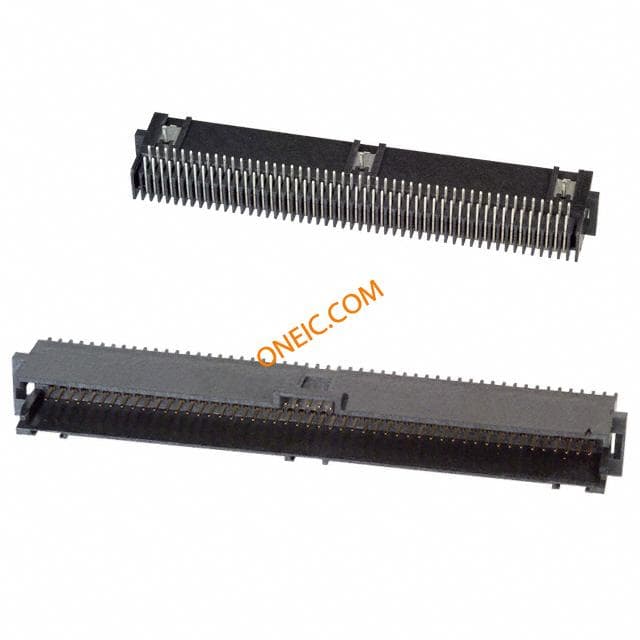

5-104069-7
