6-104477-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 10POS DL R/A GOLD Headers & Wire Housings 10 SYS50 HDR DRRA 145 SOLDESN .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 10Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 10 SYS50 HDR DRRA 145 SOLDESN |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 40 |
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 制动器闭锁 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 500 VAC |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Base Type | 不带 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Row Spacing | 0.100" (2.54mm) | Stabilizers | Without |
| Termination | Solder | 2nd Connector | With |
| Housing Color | Black | Mounting Type | Right Angle |
| Connector Type | Shrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Thru Hole | Number of Rows | 2 |
| Shell Material | 2- 面 | Height (Inches) | 0.350" (8.89mm) |
| Insert Material | 铜合金 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Mounting Feature | 压具柱体 |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Style | Through Hole | Diameter - Outside | .381 mm [ .015 in ] |
| Number of Contacts | 10 | Termination Finish | 带罩 |
| Number of Positions | 10 | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.125" (3.18mm) | Termination Post Length | 3.68 [0.145] |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
| Termination Finish Thickness | 150 – 250 | ||
Product Info
| Note | Note 1: Hold down posts located as shown for 16 through 100 position headers.; | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU System 50 |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Header Assembly | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65 – 105 | ||
Documents & Media
Similar Parts
1-487937-0
te connectivity / amp
Conn Housing RCP 10 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 10POS.050 DUAL W/LATCH Headers & Wire Housings RECPT 2X05P 050X100 Conn Housing RCP 10 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 10Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 010 HOUSING FFC 50CL DR LATCH
5-104078-3
te connectivity / amp
Conn Socket Strip RCP 10 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 10POS .050" STR GOLD Board to Board & Mezzanine Connectors 10 SYSTEM 50 RCPT ASSY DRST SN 5-104078-3 Conn Socket Strip RCP 10 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Connector - Receptacle10 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU BOARD-BOARD CONNECTOR RECEPTACLE, 10WAY, 2ROW TE Connectivity AMPMODU System 50 系列 2行 10路 垂直 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 10 SYSTEM 50 RCPT ASSY DRST SN
5-147378-1
te connectivity / amp
Conn Socket Strip RCP 10 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 10POS DUAL SMD GOLD Board to Board & Mezzanine Connectors 10 SYS50 SMT RCP DR SHD SN .050 X .100 AMPMODU System 50 Product Highlights:Receptacle AssemblyNumber of Positions = 10Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 10 SYS50 SMT RCP DR SHD SN

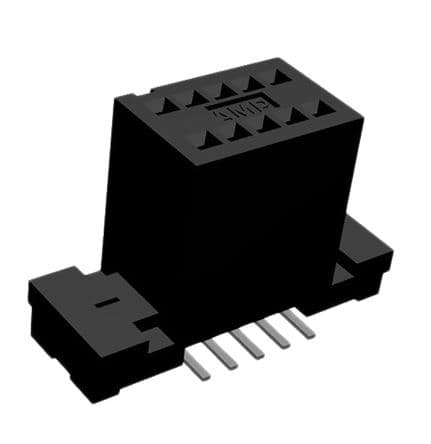

5-104550-1
