6-104068-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 34 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 34POS 30AU Conn Shrouded Header HDR 34 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 34Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 34 SYSTEM 50 HDR DRST SHRD |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Input | 150 – 250 | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 制动器闭锁 |
| Frequency Stability | 不带 | Voltage - Breakdown | 500 |
| Current Rating (Max) | 1 | Insulation Resistance | 5,000 |
| Voltage - Protection Rating (VPR) | 500 V | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Base Type | 带有 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Lead Style | 圆形, 圆形 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Thru Hole |
| Number of Rows | 2 | Shell Material | 2- 面 |
| Height (Inches) | 0.390" (9.91mm) | Insert Material | 铜合金 |
| Locking Feature | 带有 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | Tube |
| Panel Mount Type | 通孔 | Termination Style | 插针 |
| Diameter - Outside | .381 mm [ .015 in ] | Number of Contacts | 34 |
| Termination Finish | 带罩 | Number of Positions | 34 |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.125" (3.18mm) |
| Termination Post Length | 2.54 [0.100] | Contact Finish Thickness | 30µin (0.76µm) |
| Height Stacking (Mating) | 0.450" (11.43mm) | Static Discharge Shielding | 不带 |
Product Info
| Note | **Circuit identification feature omitted on 10 and 12 position headers. | Type | Shrouded Header |
| Gender | HDR | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header Assembly |
| Selectively Loaded | 否 | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65 – 105 | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Similar Parts
3-487937-4
te connectivity / amp
Conn Housing RCP 34 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 34POS.050 DUAL W/LATCH FFC & FPC Connectors RCPT 34P.050 W/LATCH Conn Housing RCP 34 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 34Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 034 HOUSING FFC 50CL DR LATCH
3-487938-4
te connectivity / amp
Conn Housing RCP 34 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 34POS .050 DUAL ROW
6-104078-0
te connectivity / amp
Conn Socket Strip RCP 34 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 34POS .050 VERT DUAL Board to Board & Mezzanine Connectors 34 SYS 50 RCPT ASSY DRST SN .050 X .100 AMPMODU System 50 Product Highlights:Receptacle AssemblyNumber of Positions = 34Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 34 SYSTEM 50 RCPT ASSY DRST SN
3-111196-0
te connectivity / amp

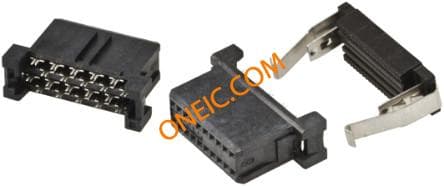

Conn IDC Connector RCP 34 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 34POS .050X.100 IDC Connector IDC 34 way socket System 50 Headers & Wire Housings 050X100 REC 2X17P Conn IDC Connector RCP 34 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 34Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 1.27MM Connectors,ribboncablereceptacle,34Pos.,DualRow,.050CL,Black TE Connectivity AMP-LATCH System 50 系列 2行 34路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 034 RCPT SYSTEM 50 30 DPLX
