6-103640-4
| Manufacturer | |
| Description | Conn IDC Connector RCP 15 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 15 MTE RCPT SR LATCH .100CL Headers & Wire Housings 15 MTE RCPT SR LATCH .100CL 15 MTE RCPT SR LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 14 |
| Standard Package | Rail / Tube | Factory Pack Quantity | 14 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 250 VAC | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Voltage - Protection Rating (VPR) | 600 V | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Lock Type | Latch | Packaging | Tube |
| Wire Type | Discrete or Ribbon Cable | Body Color | 黑色 |
| Wire Gauge | 26-30 AWG | Row Spacing | 2.54 mm |
| Termination | 15 mΩ | Contact Type | Female Socket |
| 2nd Connector | With | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Operating Force | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 14 |
| Cable Termination | IDC | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 15 |
| Insulation Diameter | .76 – 1.37 mm | Number of Positions | 15 |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Series | AMPMODU MTE |
| Features | Closed End | Product Type | Receptacles / Sockets - Housings |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
6-103639-4
te connectivity / amp
Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 15POS PCB TIN Headers & Wire Housings 15 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 15Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, HEADER, 2.54MM, 15WAY 15 MTE HDR SRST LATCH .100CL
6-104910-4
te connectivity / amp

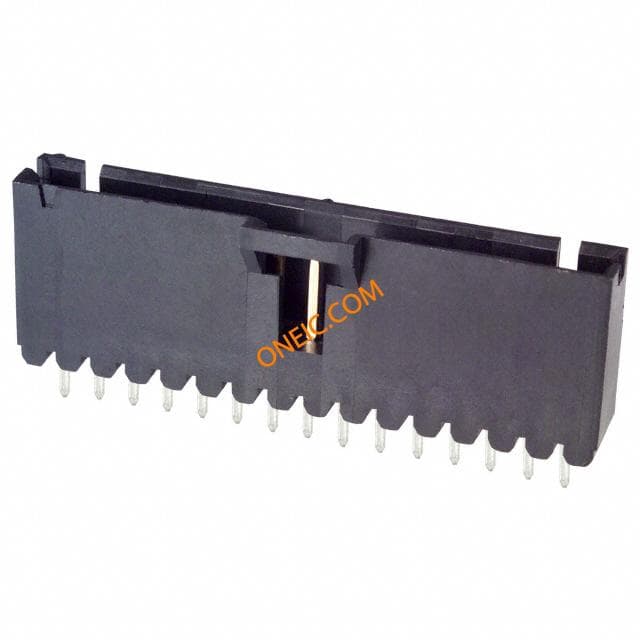

Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 15POS 15AU Header 15 way pin 2.54mm IDC AmpModu Headers & Wire Housings 15MTE HDR SRST LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 15Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 15路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 15 MTE HDR SRST LATCH .100CL
