点击放大查看
6-103639-5
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Headers & Wire Housings HDR PIN 1X16C VRT THRU HOLE .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 16POS PCB TIN Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 16Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE HDR SRST LATCH .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Switch Function | Latched |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 13.59 mm [ .535 in ] | Length | 43.18 mm [ 1.7 in ] |
| Packaging | Tube | Body Color | 黑色 |
| Lead Style | 直角 | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Pitch - Post | 2.54 [.100] | Polarization | Latched |
| Contact Shape | Square | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Crimp, Insulation Displacement Crimp (IDC) |
| Contact Finish | Tin Over Nickel | Contact Timing | Without |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Plating - Body | Tin | Insert Material | 黄铜 |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Mounting Feature | 压具 | Package Quantity | Tube |
| Panel Mount Type | 垂直 | Size / Dimension | 0.64 [.025] |
| Termination Style | IDC | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 16 |
| Termination Finish | 带有 | Number of Positions | 16 |
| Compatible Shell Size | 母端护套组件 | Contact Length - Post | 3.3 mm [ .13 in ] |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Length - Mating | 0.230" (5.84mm) | Surface Mount Land Size | Without |
| Termination Post Length | 5.84 mm [ .23 in ] | Contact Finish Thickness | 100µin (2.54µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Use Keying Tool No. 91417-1 to remove post for keying. | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| Product Type | Headers - Shrouded | Connection Type | Printed Circuit Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
1-103644-5
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual Headers & Wire Housings 16 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16 POS 22-26AWG 15AU Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual Product Highlights:HousingPreloadedNumber of Positions = 16Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE RCPT SR LATCH .100CL
6-103900-5
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 16MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-487769-4
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 016 HOUSING FFC RCPT 100CL SR FFC & FPC Connectors 016 HSG RCPT 100CL 1-487769-4 Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Search Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
1-103734-5
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE RCPT SR LATCH .100CL Headers & Wire Housings 16 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

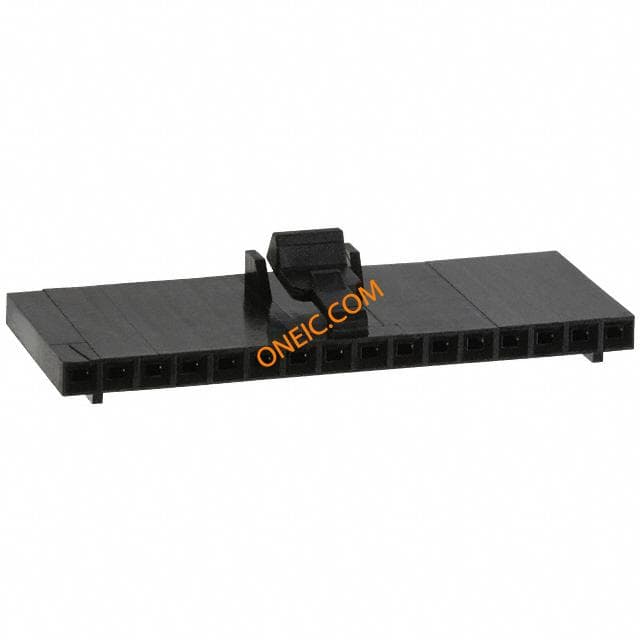

1-104257-5
