6-103167-0
| Manufacturer | |
| Description | Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 26POS 30AU Headers & Wire Housings ACTION PIN R.A. 26P dual .150 end .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA SHRD LF |
| Category |
Business
| Tradename | AMPMODU | Other Names | A33147 |
| Standard Pack | 112 | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 112 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LE7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 带有 | Packaging | Tray |
| Body Color | 黑色 | End - Size | 3.81 mm [ .15 in ] |
| Lead Style | 直角 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| 2nd Connector | With | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Detent Lock | Mounting Style | 标准 |
| Number of Rows | 2 | Shell Material | 4- 面 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 112 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 26 | Termination Finish | 带罩 |
| Number of Positions | 26 | Length - Post (Mating) | 8.08 mm |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.318" (8.08mm) |
| Termination Post Length | 3.43 mm | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 100 – 200 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Product Type | Headers | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | - 55 C to + 105 C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Documents & Media
Similar Parts
2-87631-1
te connectivity / amp

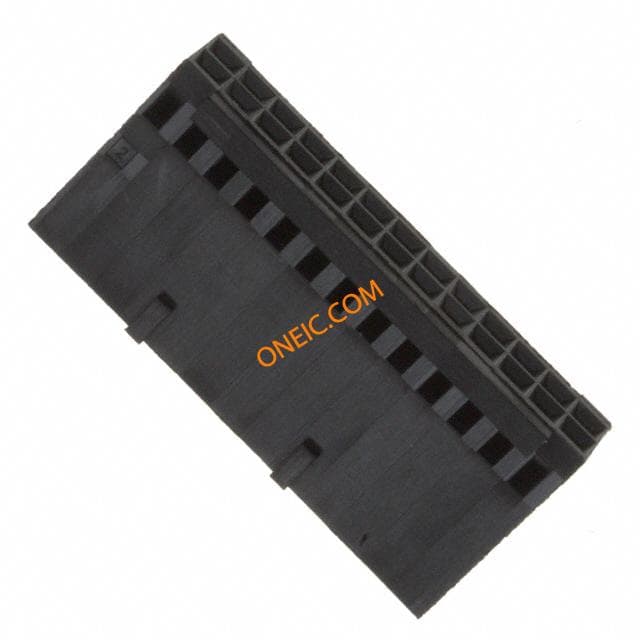

Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 POL DUAL Housing FH 26way 2row Rec 2.54mm AmpModu Headers & Wire Housings MOD IV CRIMP SNAPIN Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,26POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 26 路 直 母 电缆安装 PCB 壳体 26 MODIV HSG COMP DR .100 POL
3-87977-8
te connectivity / amp

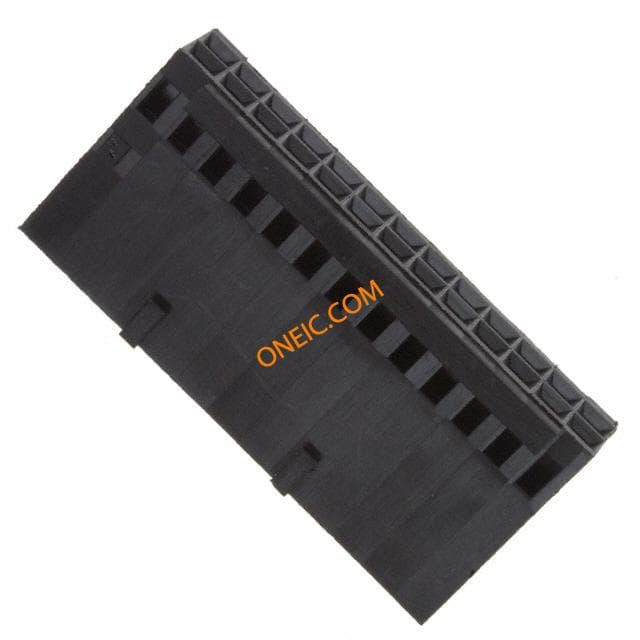

Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 POL DUAL Headers & Wire Housings 26 HSG COMP DR .1POL Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 26 MODIV HSG COMP DR .100 POL
86177-4
te connectivity / amp
Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 DUAL ROW 26 MODIV HSG COMP DR .100CL
2-87631-2
te connectivity / amp

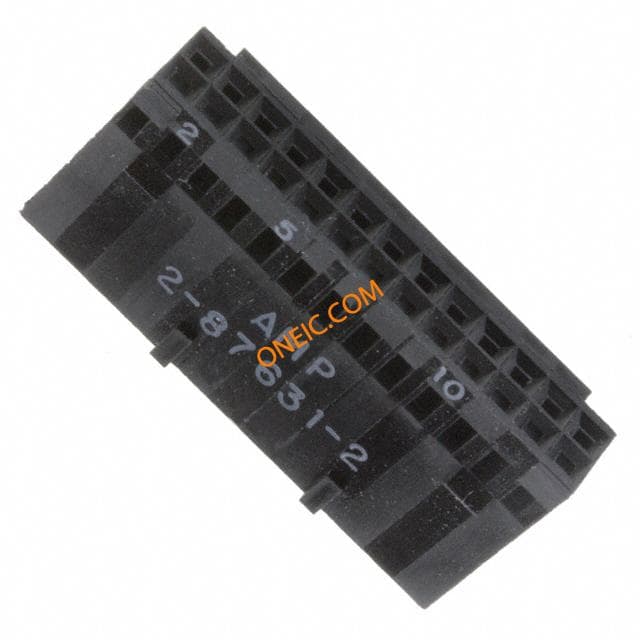

Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 POL DUAL Headers & Wire Housings POLARIZED HSG 26 DBL detent latching Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;26;250VAC;3A;750V 26 MODIV HSG DR MRKD .100 POL
87733-4
te connectivity / amp
Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 26POS .100 POL W/STR Headers & Wire Housings MOD IV DUAL ROW 26P Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM 26 MODIV HSG W/STR RLF DR MRKD
2-87456-1
te connectivity / amp
Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 DUAL ROW Headers & Wire Housings 26 MODIV HSG COMP DR Conn Housing RCP 26 POS 2.54mm Crimp ST Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,26POSITION,.100IN,DUALROW 26 MODIV HSG COMP DR .100CL
1-87977-1
te connectivity / amp

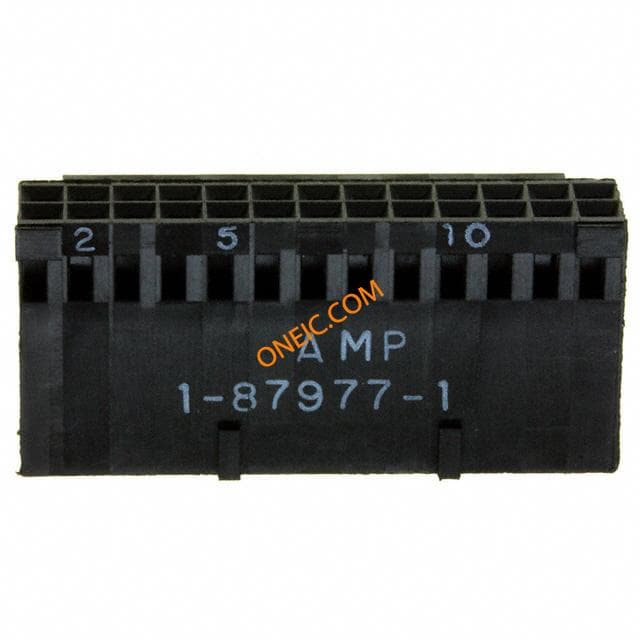

Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 POL DUAL Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 26 MODIV HSG DR MRKD .100 POL
