6-102617-0
| Manufacturer | |
| Description | Conn Shrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 24POS 15AU Headers & Wire Housings SHROUDED RA DUAL 24 detent windows Conn Shrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHeader Type = Shrouded24 PositionsMating Post Length = 8.08 mm2.54 mm CenterlineSearch Keywords:board to board, AMPMODU, pcb connectors, 24 MODII HDR DRRA SHRD LF |
| Category |
Business
| Tradename | AMPMODU | Other Names | A34347 |
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 144 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LE7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhms |
| Voltage - Protection Rating (VPR) | 750 Vrms | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 带有 | Packaging | Tray |
| Body Color | 黑色 | End - Size | 1.68 mm [ .066 in ] |
| Lead Style | 直角 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| 2nd Connector | With | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Detent Lock | Mounting Style | 标准 |
| Number of Rows | 2 | Shell Material | 4- 面 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 144 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 24 | Termination Finish | 带罩 |
| Number of Positions | 24 | Length - Post (Mating) | 8.08 mm |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.318" (8.08mm) |
| Termination Post Length | 3.43 mm | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 100 – 200 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Product Type | Headers | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | - 55 C to + 105 C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Similar Parts

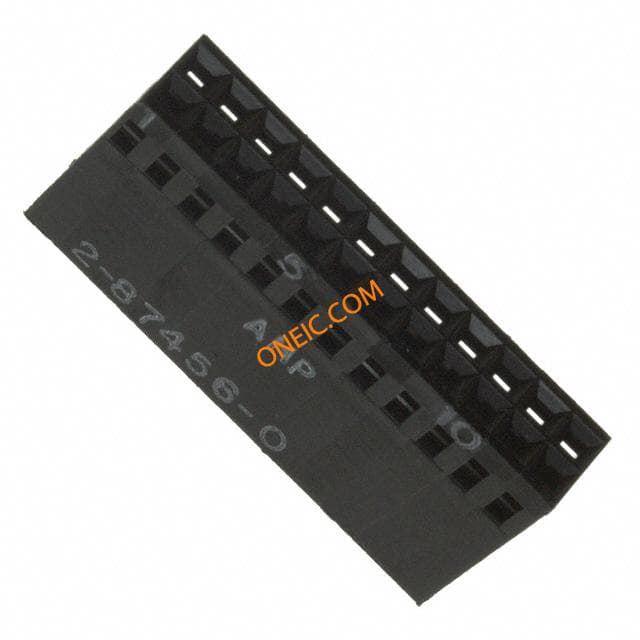

2-87456-0
