点击放大查看
6-102398-5
| Manufacturer | |
| Description | Conn IDC Connector RCP 34 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 34POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 34P 26-22 Conn IDC Connector RCP 34 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Connector;MT(IDC);26to22AWG;InsulationDisplacementCrimp(IDC);Dual 34 AMPMODU MT ASSY DR .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 70 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85444920 |
| Approval Agency | CSA,UL | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 3 A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.005 | Packaging | Tray |
| Wire Type | Discrete or Ribbon Cable | Wire Gauge | 22-26 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Wire |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 1.7" |
| Primary Material | InterconnectSystem | Cable Termination | IDC |
| Pin Hole Diameter | 0.1" | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 34 |
| Contact Termination | :IDC / IDT | Number of Positions | 34 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | AMPMODU MT | Features | Closed End |
| Manufacturer | AMPMODU/MTSeries | Product Type | Receptacles / Sockets - Housings |
| Matrix (Columns x Rows) | 0.1x0.1 | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
6-103168-5
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 34POS 30AU Headers & Wire Housings HDR 2X17P VRT T/H Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM 34 MODII HDR DRST SHRD .100CL
1-104352-6
te connectivity / amp
Conn Unshrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 34POS DUAL TIN
1-103168-5
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 34POS 30AU Headers & Wire Housings SHROUDED VER DUAL 34 detent windows Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 34Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRST SHRD .100CL
6-102617-5
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 34POS 15AU Headers & Wire Housings 34P HDR DRRA SHRD .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRRA SHRD LF
1-104350-6
te connectivity / amp
Conn Unshrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 34POS DUAL 30AU Headers & Wire Housings 34 MODII HDR DRST B/A W/HD 34 MODII HDR DRST B/A W/HD 34 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,
1-87589-3
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 34POS PCB TIN Headers & Wire Housings SHROUDED VER DUAL 34 detent windows .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded34 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRST SHRD .100CL
1-102618-5
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 34POS 15AU Headers & Wire Housings SHROUDED VER DUAL 34 detent windows Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded34 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRST SHRD .100CL
1-87608-3
te connectivity / amp
Conn Coupler Header M/M 34 POS 2.54mm ST Panel Mount .100 inch AMPMODU Headers CONN HEADER 34POS SHRD DL .100 Headers & Wire Housings HDR 34P SHRD DL .100 Conn Coupler Header M/M 34 POS 2.54mm ST Panel Mount Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded with Pins on Both Sides34 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 34 MODII HDR DRST SHRD .100CL

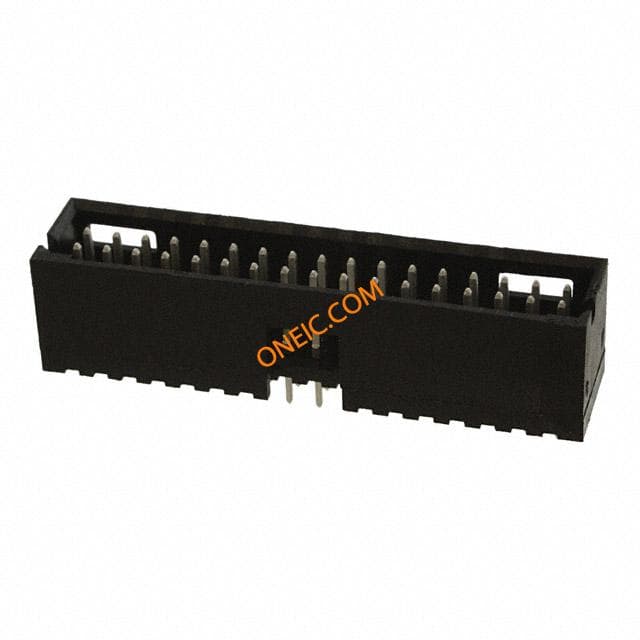

6-87589-3
