554548-1
| Manufacturer | |
| Description | Connector Accessories Connector Kit Plug 50 POS Bulk 2.16 [.085] IDC Connectors CONN CHAMP PLUG 50POS .085 IDC Headers & Wire Housings PLUG KIT 50 POS B SLOT INT LKG 2.16 [.085] IDC Connectors Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics |
| Category |
Business
| Standard Pack | 1 | Product Category | Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Mechanical
| Color | Blue | Cable Exit | 90° |
| Cable Type | 7 Strand, Solid | Copper Type | B |
| Shield Type | No | Termination | IDC |
| 2nd Connector | With | Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug | Contact Finish | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| Flange Feature | Insert, Threaded (4-40) | Number of Rows | 2 |
| Connector Style | Center Strip Contacts | Locking Feature | Integral Locking Latch |
| Profile (W x H) | Standard | Package Quantity | Bulk |
| Panel Mount Type | Without | Number of Positions | 50 |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - mm2 | 0.20² [24] |
| Outside Cable Diameter (Min) | 10.80 [0.425] | ||
Product Info
| Note | Adjustable Cable Clamp; Meets requirements of FCC Part 68 RJ21 for standard tel | Type | Connector Kit |
| Gender | Plug | Features | Assembly Kit, Backshell, Cable Clamp |
| Product Type | Connector Kit | RF Family/Standard | 554548-1 |
Environmental
| Protection Range | Without | ||
Documents & Media
Similar Parts
553603-1
te connectivity / amp
Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH RECEPT-SCREW Conn SCSI RCP 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CHAMPLATCHCONNECTOR,RCPTASSY,50POSN,SCRLK,LPF 50 Position 1.27 mm Pitch Cable to Board IDC Receptacle Connector TE Connectivity CHAMP Latch 系列 2行 50路 1.27mm节距 母 IDC 连接器 , 面板安装 RCPT ASSY,50 POSN,SCR LK,L PF
5553921-1
te connectivity / amp
Conn IDC Connector F 50 POS 2.16mm IDT Cable Mount Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 50 POSN, B SLOT I/O Connectors LOCKING LATCH 50P receptacle black Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Conn IEEE 488 RCP 50 POS 2.16mm IDT ST Panel Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPCONNECTORASSY,ASSY,RCPT,50POSN,BSLOT
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool

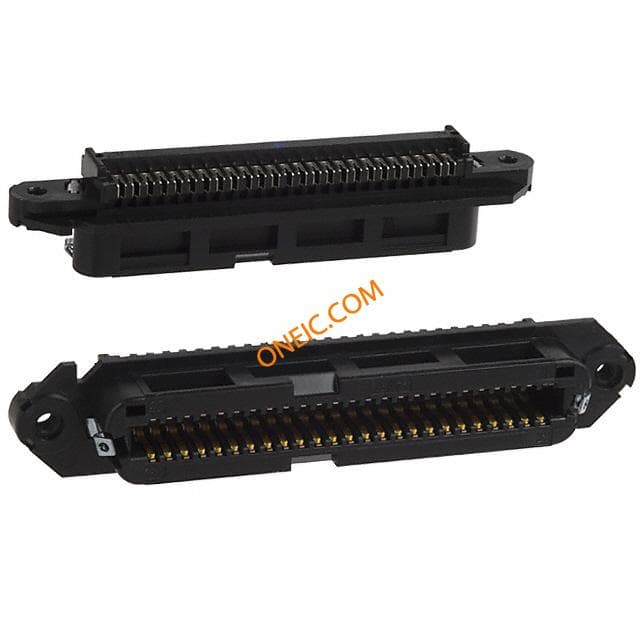

553921-1
