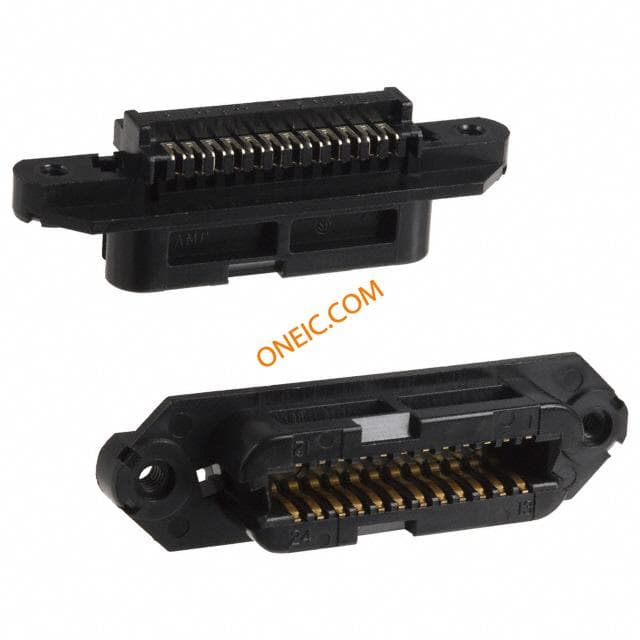

554103-1
| Manufacturer | |
| Description | Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray I/O Connectors PLUG 24P PANEL MNT low profile plastic 2.16 [.085] IDC Connectors PLUG ASSY,24 POSN,PNL MTG,L PF Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 24Low ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP Latch 系列 2行 24路 1.27mm节距 公 IDC 连接器 , 面板安装 |
| Category |
Business
| Lead Time | 84 Days | Subcategory | Connector SCSI |
| Product Category | I/O Connectors | Standard Package | Trays |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Connector Impedance | 螺钉锁, 螺钉锁, 释放锁 | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Tray | Shielding | 否 |
| Cable Type | Ribbon Cable | Orientation | 直 |
| Row Spacing | 1.27 mm [ .05 in ] | Shield Type | No |
| Termination | IDT | 2nd Connector | With |
| Mounting Type | Cable Mount | Connector Type | Plug |
| Contact Finish | Gold | Flange Feature | Hollow, Unthreaded |
| Mounting Style | Cable | Number of Rows | 2 |
| Shell Material | 热塑性 | Connector Style | Center Strip Contacts |
| Insert Material | 磷青铜 | Locking Feature | Bail Lock, Screwlocks |
| Profile (W x H) | Low | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | Tray |
| Panel Mount Type | With | Termination Rows | IDC |
| Termination Style | IDC | Wire Gauge - Ends | 28 |
| Number of Contacts | 24 | Number of Positions | 24 |
| Row Spacing - Mating | 1.27 [0.050] | Contact Finish Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - AWG | 30 – 26 | Wire Gauge or Range - mm2 | .05 – .13 |
Product Info
| Type | SCSI | Gender | PL |
| Series | CHAMP Latch | Features | IDC Connectors |
| Product Type | Connector | ||
