553600-1
| Manufacturer | |
| Description | Conn SCSI PL 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 36 PIN CHAMP LATCH PLUG-SCREW I/O Connectors PLUG 36P SCREW LOCK low profile plastic Conn SCSI PL 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics PLUG ASSY,36 POSN,SCR LK,L PF |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector SCSI |
| Product Category | Connectors | Standard Package | Trays |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Connector Impedance | 螺钉锁, 螺钉锁 | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Tray | Shielding | 否 |
| Cable Type | Ribbon Cable | Row Spacing | 1.27 mm [ .05 in ] |
| Shield Type | No | Termination | IDT |
| 2nd Connector | With | Mounting Type | Cable Mount |
| Connector Type | Plug | Contact Finish | Gold Flash over Palladium Nickel over Nickel, Gold over Nickel |
| Flange Feature | Insert, Threaded (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | 热塑性 |
| Connector Style | Center Strip Contacts | Insert Material | 磷青铜 |
| Locking Feature | Screwlocks | Profile (W x H) | Low |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Package Quantity | Tray | Panel Mount Type | With |
| Termination Style | Solder Pin | Wire Gauge - Ends | 28 |
| Number of Contacts | 36 | Number of Positions | 36 |
| Row Spacing - Mating | 1.27 [0.050] | Contact Finish Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - AWG | 30 – 26 | Wire Gauge or Range - mm2 | .05 – .13 |
Product Info
| Type | SCSI | Gender | PL |
| Product Type | Connector | ||
Documents & Media
Similar Parts
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool
552314-1
te connectivity / amp
Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 36 POS, B SLOT I/O Connectors RECPT 36P 24-26 AWG Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 36Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;ScrewLockReceptacle;36Position
2-552475-1
te connectivity / amp
Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36Terminal 1Port Tray 2.16 [.085] IDC Connectors 36 CONTACTS, CHAMP RECEPTACLE I/O Connectors RECPT 36P PNL MNT 26-28 AWG Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Conn IEEE 488 RCP 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port Tray Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

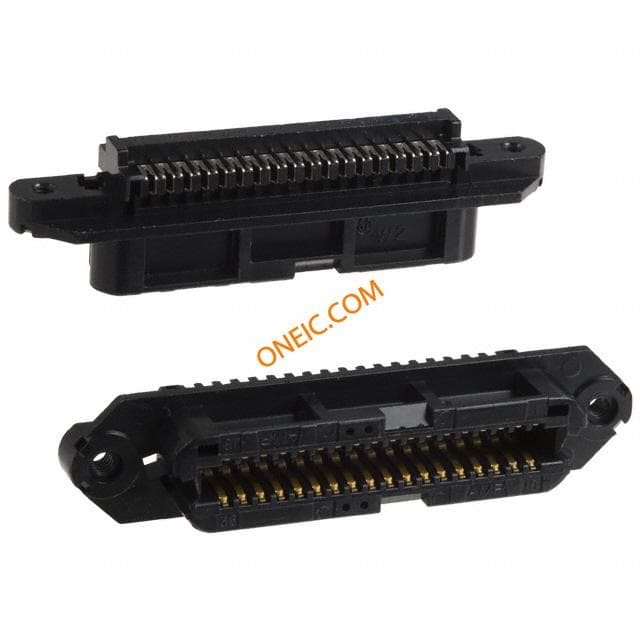

1319948
