552315-1
| Manufacturer | |
| Description | Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 64 POS, B SLOT I/O Connectors RECPT 64P 24-26 AWG Conn IEEE 488 RCP 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 64Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 64POS, IDC/IDT CHAMPIDCConnector;ScrewLockReceptacle;64Position 2.16 [.085] IDC Connectors; Connector Classification: IDC Product Category: Connectors Connector 64 Positions Receptacle TE Connectivity CHAMP-LOK 系列 2行 64路 2.159mm节距 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| Product | Micro Ribbon Connectors | Lead Time | 20 Days |
| Subcategory | Connector Interface | Product Category | Connectors |
| Standard Package | Trays | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Mechanical
| Color | Black | Pitch | 2.16 mm |
| Weight | 0.009 | Packaging | Tray |
| Thickness | Thick | Cable Type | 7 Strand, Solid |
| Wire Gauge | 26-24AWG(Solid),24AWG(Stranded) | Copper Type | B |
| Shield Type | No | Termination | IDC |
| 2nd Connector | With | Housing Color | Blue |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| Flange Feature | Insert, Threaded (4-40) | Mounting Style | Cable |
| Number of Rows | 2 | Connector Style | RS |
| Locking Feature | Bail Lock, Screwlocks | Profile (W x H) | Standard |
| Contact Material | Copper Alloy | Housing Material | Polyphenylene |
| Length - Overall | 3.875" | Package Quantity | Tray |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.85" | Termination Style | Wire |
| Number of Contacts | 64 | Contact Termination | :IDC / IDT |
| Insulation Diameter | 1.14 [.045] Max. | Number of Positions | 64 |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - mm2 | 0.20² [24] |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IEEE 488 | Gender | RCP |
| Series | :Champ | Features | IDC connectors, blue dot designation |
| Manufacturer | CHAMP-LOK | Product Type | Connector |
Documents & Media
Similar Parts
5406049-1
te connectivity / amp
Conn IEEE 488 PL 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Loose Piece CONN CHAMP PLUG 64POS IDC Conn IEEE 488 PL 64 POS 2.16mm IDT RA Cable Mount 64 Terminal 1 Port Loose Piece Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics ASSY PLUG,64POS,SHLD CHAMP
230238-1
te connectivity / amp
Assembly Tools, Extractor Tool Hand Tools EXTRACTOR CONTACT EXTRACTION TOOL EXTRACTOR Extraction Tool Body Ma
553444-5
te connectivity / amp
Conn IEEE 488 PL 64 POS 2.16mm Press Fit ST Thru-Hole 64 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN PLUG 64POS VERT ACTION PIN Headers & Wire Housings PLUG 64P VERT PCB Conn IEEE 488 PL 64 POS 2.16mm Press Fit ST Thru-Hole 64 Terminal 1 Port Product Highlights:PlugNumber of Positions = 64PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics PLUG ASSY,ACTION PIN,CHAMP-LOK
552082-1
te connectivity / amp

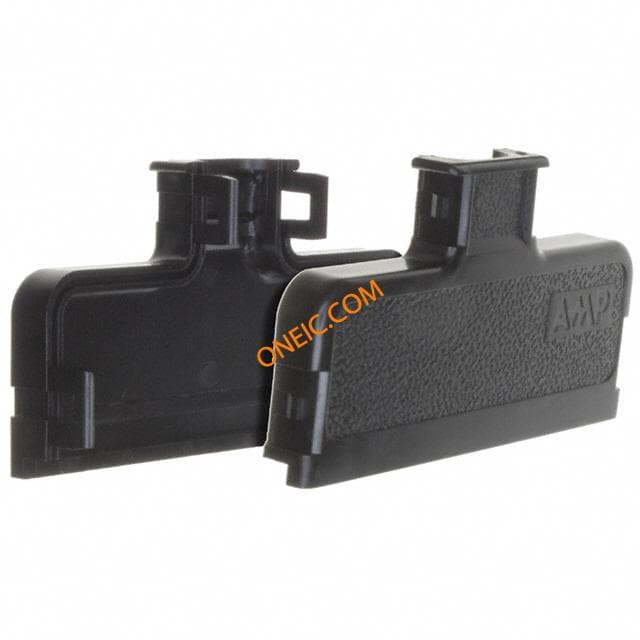

Connector Accessories 64 POS Snap-On Strain Relief Cover Black Bulk 2.16 [.085] Accessories and Hardware 180 DEG COVER KIT 64 POS Headers & Wire Housings STRAIN RELIEF CVR 64 180 Snap-On Connector Accessories 64 POS Snap-On Strain Relief Cover Black Bulk Product Highlights:CoverCover Type = Strain ReliefSnap-On Cover/Strain Relief Retention Method180° Cable Exit AngleNumber of Positions = 64Search Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics STRAIN RELIEF COVER KIT, POLYPHENYLENE CHAMPIDC180degreeSnap-OnStrainReliefCover;64Position TE Connectivity 黑色 聚苯硫醚 应力释放 外罩, 使用于 CHAMP 系列
