552282-1
| Manufacturer | |
| Description | Conn IEEE 488 PL 14 POS 2.16mm IDT RA Cable Mount 14Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 14 POS, B SLOT I/O Connectors PLUG 14P SCREW LOCK Conn IEEE 488 PL 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Conn IEEE 488 PL 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 14PlugNot ShieldedWithout Panel AttachmentSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 14POS, IDC/IDT CHAMPIDCConnector;Plug,14Position;ScrewLock TE Connectivity CHAMP-LOK 系列 14路 2.16mm节距 公 IDC 连接器 , 电缆安装 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Interface |
| Product Category | Connectors | Standard Package | Trays |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Mechanical
| Color | Black | Pitch | 2.16 mm |
| Weight | 0.004 | Packaging | Tray |
| Thickness | Thick | Cable Type | 7 Strand, Solid |
| Wire Gauge | 24-26AWG(Solid),24AWG(Stranded) | Copper Type | B |
| Shield Type | No | Termination | IDC |
| 2nd Connector | With | Housing Color | Blue |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug | Contact Finish | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| Flange Feature | Insert, Threaded (4-40) | Mounting Style | Cable |
| Number of Rows | 2 | Connector Style | PS |
| Locking Feature | Screwlocks | Profile (W x H) | Standard |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 1.75" | Package Quantity | Tray |
| Panel Mount Type | Without | Primary Material | Industrial |
| Pin Hole Diameter | 0.085" | Termination Style | IDC |
| Number of Contacts | 14 | Contact Termination | :IDC / IDT |
| Insulation Diameter | 1.14 [.045] Max. | Number of Positions | 14 |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - mm2 | 0.20² [24] |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IEEE 488 | Gender | PL |
| Series | :Champ | Features | IDC Connectors |
| Manufacturer | CHAMPIDC | Product Type | Connector |
Documents & Media
Similar Parts
230238-1
te connectivity / amp
Assembly Tools, Extractor Tool Hand Tools EXTRACTOR CONTACT EXTRACTION TOOL EXTRACTOR Extraction Tool Body Ma
552312-1
te connectivity / amp
Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 14 POS, B SLOT CHAMP-LOK IDC Receptacle B Slot 14P I/O Connectors RECPT 14P 24-26 AWG Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 14Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;ScrewLockReceptacle;14Position
2-552271-1
te connectivity / amp
Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 14 POS, B SLOT Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Search Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP-LOK 系列 2行 14路 2.16mm节距 母 IDC 连接器 , 电缆安装
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool
229384-1
te connectivity / amp
Insertion / Extraction Tool Types, Standard Extraction Tool Hand Tools T-HANDLE INSERTION T-HANDLE WIRE INSERTION TOOL Insertion Tool, T-Grip INSERTION,HAND,T-GRIPFORCHAMPCONNECTORS Insertion tool, 229384-1, TE Connectivity
2-552079-1
te connectivity / amp

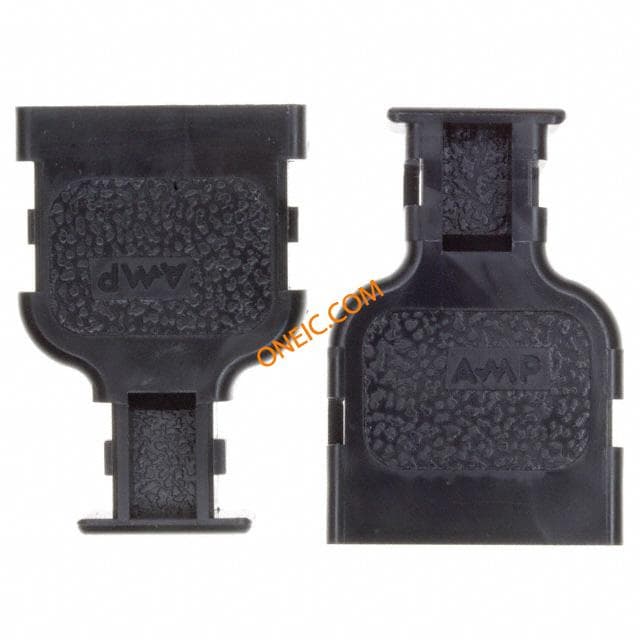

Connector Accessories Cover Black 14 POS Bulk 2.16 [.085] Accessories and Hardware CONN COVER STR RLF 14POS 180DEG Headers & Wire Housings STRAIN RELIEF CVR 14 180 Snap-On Connector Accessories 2.16mm IEEE 488 14 POS Cover Kit Thermoplastic Black Bulk Connector Accessories 2.16mm IEEE 488 14 POS Cover Kit Thermoplastic Black Bulk Product Highlights:CoverCover Type = Strain ReliefSnap-On Cover/Strain Relief Retention Method180° Cable Exit AngleNumber of Positions = 14Search Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics STRAIN RELIEF COVER KIT, THERMOPLASTIC CHAMPIDC180degreeSnap-OnStrainReliefCover;14Position TE Connectivity 50路 10.92 mm 直径电缆 应力消除盖 , 使用于CHAMP 系列连接器 COVER KIT 180 DEG 14 POS BLK
