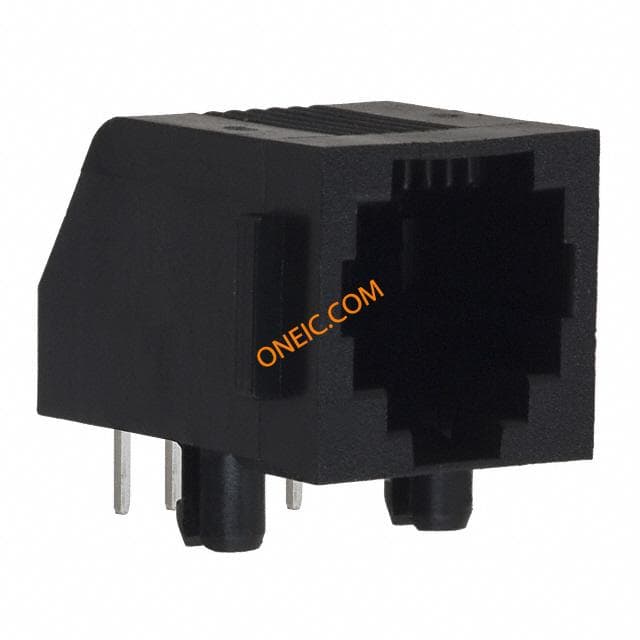

5520250-3
| Manufacturer | |
| Description | Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 6P6C Cat 3 RJ25 PCB right angle modular jack Modular Connectors / Ethernet Connectors 6/6 SIDE ENTRY Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ25Number of Positions = 6Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO ModularJack,RJ25,6Position,RightAnglePCBMount,Cat3,Black Jack, 6/6, PCB installation 90°, 5520250-3, TE Connectivity TE Connectivity Cat3 6P6C 直角 通孔安装 RJ25 模块化插孔连接器 MJ,R/A,6P/6C,PNL STOPS,TRAY |
| Category |
Business
| Part # Aliases | AMP-0-5520250-3 CF8925-000 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Trays | Factory Pack Quantity | 608 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Approval Agency | UL,CSA | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| LED | Without | Voltage Rating | 150 V |
| Number of Poles | 6 | Contact Resistance | 30 mohm |
| Current Rating (Max) | 1.5 A | Voltage - Supply (Min) | 150VAC |
| Connector - Voltage Input | Cat3 | ||
Mechanical
| Size | 20.8 x 15.9 x 16.1 mm | Color | Black |
| Depth | 20.83 mm | Pitch | 2.54 mm |
| Height | 16.13 mm | Length | 20.8 |
| LED Color | Does Not Contain LED | Lock Type | Standard |
| Packaging | Tray | Shielding | Unshielded |
| Body Color | 黑色 | Jaw Opening | Down |
| Orientation | 90° Angle (Right) | Shield Type | No |
| Termination | Solder | Length - Pin | 3.8 mm [ .15 in ] |
| Housing Color | Black | Inverted Jack | No |
| Mounting Type | Through Hole | Tab Direction | Down |
| Angle of Throw | Right | Connector Type | RJ25 |
| Contact Finish | Tin over Nickel | Flange Feature | No |
| Grounding Type | Without | Mounting Style | Thru Hole |
| Number of Rows | 1 | Board Thickness | 1.57 [0.062] |
| Height (Inches) | 16.13 [0.635] | Insert Material | 磷青铜 |
| Profile (W x H) | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Polyester (PBT) | Length - Overall | 15.88 mm |
| Package Quantity | Tray | Panel Mount Type | With |
| Primary Material | Modular | Termination Style | Solder |
| Number of Contacts | 6 | Number of Positions | 6 |
| Cable Length - Unexposed | 3.80 [0.150] | Contact Finish Thickness | 50µin (1.27µm) |
| Number of Positions/Bay/Row | 6P6C | ||
Product Info
| Mode | Single | Type | RJ-25 |
| Grade | Cat3 | Gender | F |
| Series | Single Port Modular Jack | Features | Board Lock, Panel Stops |
| Key Type | 否 | Direction | 直角 |
| Port Style | Single | USOC Codes | RJ25 |
| Performance | Cat3 | Coded, Keyed | No |
| Preinstalled | 是 | Product Type | Jack |
| Specifications | RJ25 | Category Number | Cat 3 |
| Number of Lines | 6P6C | Number of Ports | 1 |
| Jack Configuration | 1 x 1 | Network Technology | Cat3 |
| RF Family/Standard | 5520250 | Other Specifications | 不带 |
| Output Configuration | Through Hole | Performance Category | Cat 3 |
| Number of Positions Loaded | 6 | Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
Environmental
| Ratings | Cat3 | Operating Temperature | -40°C ~ 85°C |
| Thermal Resistance of Package | 1.57 mm [ .062 in ] | ||
