5413524-5
| Manufacturer | |
| Description | Conn BNC RCP 50Ohm Solder RA Thru-Hole Gold Decoupled BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors JACK R/A 50 OHM AU JACK DECOUPLER PCB RTANG JACK DECOUPLER PCB RTANG Search Keywords:NIC, Network Interface Cards, PC Cards, RF, |
| Category |
Business
| Product | PCB Connectors | Standard Pack | 31 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 31 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ESD Protection | Without |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| PLL | 9400 | Impedance | 50 Ohm |
| Capacitance | 9,400 | Voltage Rating | 500 V |
| Frequency - Max | 4GHz | Voltage - Rated DC | 1500 |
| Connector Impedance | Standard | Impedance (Max) (Zzt) | 50 |
| Insulation Resistance | 5000 MOhms | Voltage - DC Reverse (Vr) (Max) | 1500 |
Mechanical
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Right Angle | Termination | Solder |
| Body Material | Zinc | Mounting Type | Through Hole |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Compliant |
| Plating - Body | Nickel | Connector Style | BNC |
| Height (Inches) | 15.88 [0.625] | Profile (W x H) | Standard |
| Contact Material | Phosphor Bronze | Mounting Feature | 符合标准的插针 |
| Panel Mount Type | Lockwasher and Nut | Primary Material | 锌 |
| Shield Termination | Press-Fit | Contact Termination | Solder |
| Dielectric Material | Polymethylpentene | Center Contact Finish | 金 |
| Center Contact Plating | Gold | Length - Post (Mating) | 2.79 [0.110] |
| Center Contact Material | Phosphor Bronze | Contact Finish Thickness | 889 |
| 1st Connector Mounting Type | Panel | Outside Pipe Diameter (Max) | 14.529 mm [ .572 in ] |
Product Info
| Type | BNC | Grade | 商业 |
| Gender | RCP | Features | Decoupling Capacitance |
| Polarity | Standard | Sealable | 否 |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | PCB | RF Family/Standard | 5413524 |
Environmental
| Temperature Rating | Standard | Operating Temperature | - 55 C to + 85 C |
Documents & Media
Similar Parts
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN
1-1634816-0
te connectivity / amp

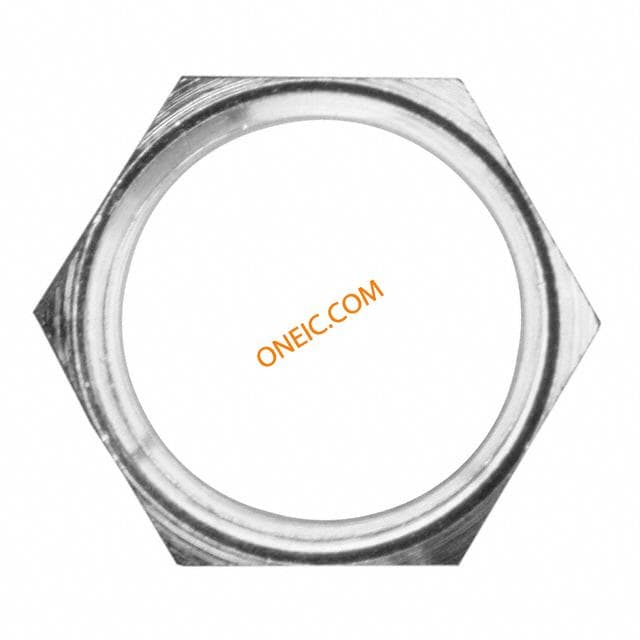

Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器
1-1634817-0
te connectivity / amp

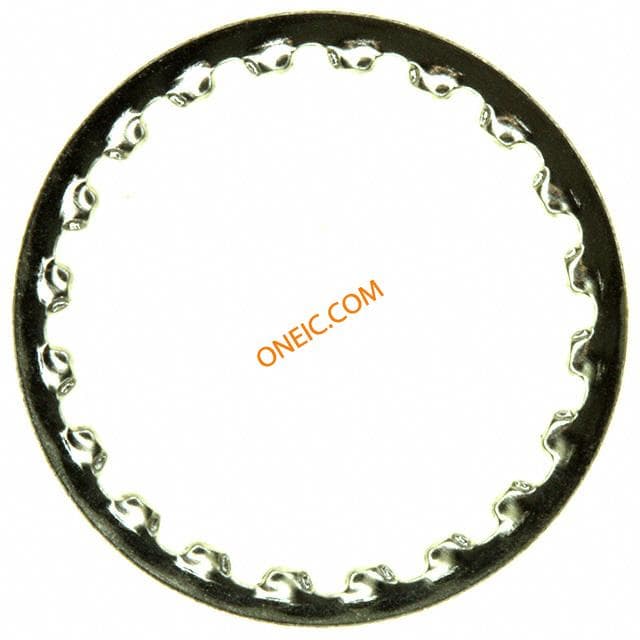

Connector Accessories Lockwasher Steel BNC RF Connectors CONN BNC/TNC LOCKWASHER BNC/TNC lockwasher Screws & Fasteners Lockwasher Connector Accessories Lockwasher Steel Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 LOCKWASHER, BNC / TNC BNC/TNCLOCKWASHER Lock washer BNC, 1-1634817-0, TE Connectivity TE Connectivity 垫片, 使用于BNC 和 TNC 连接器 BNC / TNC Lockwasher
