53880-4
| Manufacturer | |
| Description | Contact Crimp ST Cable Mount Loose Piece Power Lock Connectors CONN TERM 6-10AWG CRIMP PWR LOCK Contact Crimp 10-6AWG Power Lock Power to the Board CONTACT CRIMP 10-6 Series 2 Contact Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 5.00-15.00² [10-6] mm [AWG]Product Series = Series IIWire Termination Type = CrimpLoose PieceSearch Keywords:cabled power, power wiring devices, high current, PowerConnectorContact;Copper;Silver;10to6AWG;Crimp(Wire);0.048in. TE Connectivity 2 系列 触点, 使用于紧凑型电源连接器 CONTACT,PWR LK,SRS2,LS PC,CRMP |
| Category |
Business
| Other Names | 538804 | Product Category | Power to the Board |
| Standard Package | Bulk | Factory Pack Quantity | 250 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHScompliant,ELVcompliant |
| UL Rating | 获得认可 | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | Approved Countries | 是 |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | 否 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 53 A | Connector - Voltage Input | Crimp |
Mechanical
| Pitch | Not Required mm | Packaging | Bulk |
| Thickness | 0.048in. | Cable Type | 实芯, 绞线 |
| Wire Gauge | 6-10 AWG | Termination | Crimp |
| Contact Type | Power | Mounting Type | Straight |
| Pin or Socket | Non-Gendered | Cable Diameter | 9072 – 26244 |
| Connector Type | Connector Power | Contact Finish | Silver |
| Mounting Style | Cable | Insert Material | 铜 |
| Thickness (Max) | 1.22 [0.048] | Contact Material | Copper |
| Housing Material | Not Required | Length - Overall | 32.64 mm |
| Package Quantity | Loose Piece | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male), Socket (Female) | Number of Contacts | 1 POS |
| Contact Termination | Crimp | Contact Mating Finish | Silver |
| Contact Finish Thickness | 200µin (5.08µm) | Wire Gauge or Range - AWG | 10-6 |
| Wire Gauge or Range - mm2 | 5.00-15.00² [10-6] | ||
Product Info
| Mfr | .838 – 1.27 | Type | Contact |
| Series | Series II | Manufacturer | AMPBrand |
| Product Type | Contact | Accessory Type | Contact |
| Number of Ports | 1 Port | Application Specifics | Power |
| For Use With/Related Products | Compact Power Connector | ||
Environmental
| Operating Temperature | - 55 C to + 85 C | ||
Documents & Media
Similar Parts
68321-1
te connectivity / amp
ROTA-CRIMP HT POWERLOCK 14-6 Crimpers ROTA-CRIMP TOOL 14-6 AWG TOOL HAND ROTA-CRIMP 6-10AWG

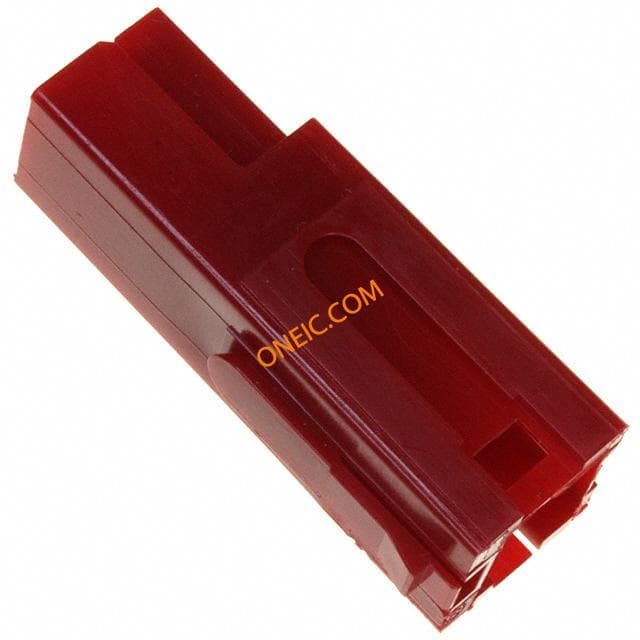

53884-4
te connectivity / amp
Conn Housing RCP 1 POS ST Power Lock Connectors CONN HOUSING 1POS RED POWER LOCK Housing 1 way in line Power lock Power to the Board HOUSING ASSY RED 10-6 AWG Conn Housing RCP 1 POS ST Product Highlights:HousingNumber of Positions = 1Housing Color = RedWithout Mounting FlangeProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, Connector,PowerLock;Polycarbonate;1;Hermaphroditic;In-Line;Red TE Connectivity 2 系列 外壳, 使用于插座连接器 HSG ASSY,PWR LK,SRS2,1 POS,RED

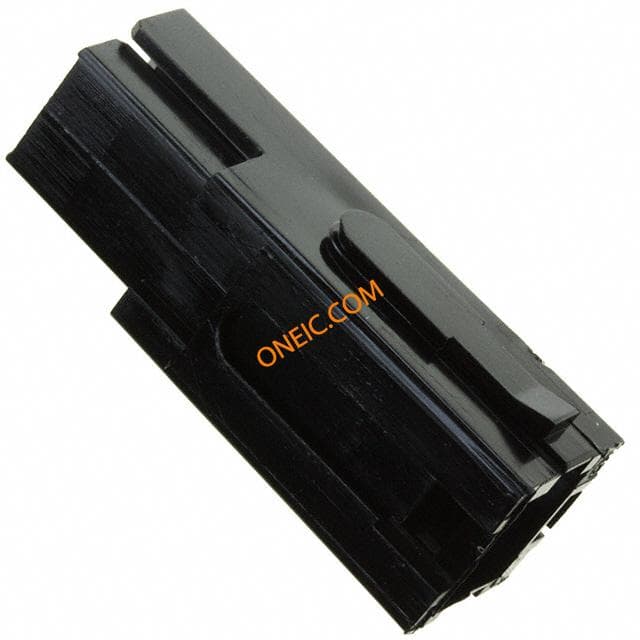

53884-3
te connectivity / amp
Conn Housing RCP 1 POS ST Power Lock Connectors CONN HOUSING 1POS BLK POWER LOCK Power Lock II Housing assembly 1P Power to the Board HOUSING ASSY BLACK 10-6 AWG Conn Housing RCP 1 POS ST Product Highlights:HousingNumber of Positions = 1Housing Color = BlackWithout Mounting FlangeProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, RECTANGULAR CONNECTOR, 1POS, CRIMP Connector,PowerLock;Polycarbonate;1;Hermaphroditic;In-Line;Black HSG ASSY,PWR LK,SRS2,1 POS,BLK

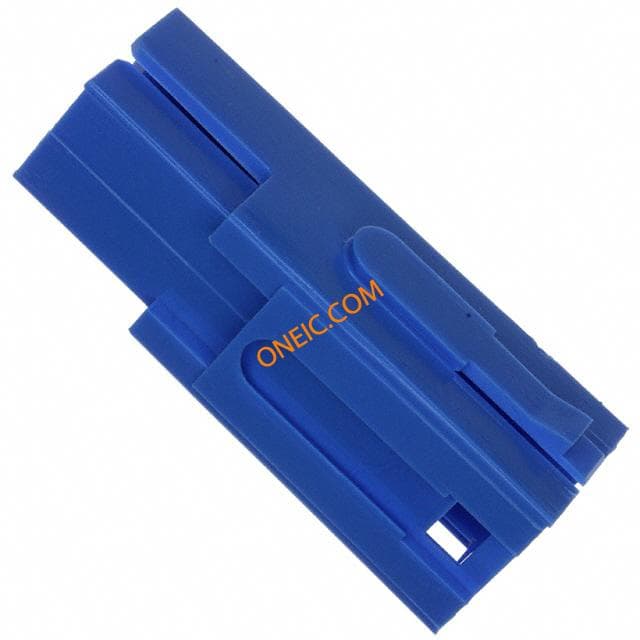

53884-1
