535598-4
| Manufacturer | |
| Description | Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 6POS .100 DUAL T/H AU 06 MODIV VRT DR CE RCPT ASSY |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standards | CSA LR7189, UL E28476 |
| MIL-C-55032 | 否 | Material Flammability Rating | UL 94V-0 |
Electrical
| Resistance - Input | 5000 | Voltage - Clamping | 750 |
| Voltage - Rated AC | 333 | Current Rating (Max) | 2 |
| Resistance - Initial (Ri) (Min) | 12 | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 5.03 mm [ .198 in ] | Packaging | Tube |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Female Socket |
| Actuator Type | 不带 | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | 低 | Number of Rows | 2 |
| Insert Material | 磷青铜 | Housing Material | 聚酯 - GF |
| Package Quantity | 390 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | 插座 | Number of Contacts | 6 |
| Contact Tail Length | 3.18 | Number of Positions | 6 |
| Compatible Shell Size | 与接头配合 | Contact Layout, Typical | 短点 |
| Termination Post Length | 3.18 mm [ .125 in ] | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Note | TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。 | Type | Socket Strip |
| Gender | RCP | Series | AMPMODU, MOD IV |
| Sealable | 否 | Stackable | 是 |
| Product Type | 连接器 | Assembly Configuration | 板支座 |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Range | 否 | Operating Pressure | 标准 |
| Operating Temperature | -65 – 125 | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Similar Parts
104354-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS R/A DUAL Headers & Wire Housings 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,
5-103166-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 6POS 30AU Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 6WAY 06 MODII HDR DRRA SHRD LF
102055-2
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 6POS DUAL R/A GOLD Headers & Wire Housings 6 MODII HEADER .100 3248 Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRRA 3/4SHRD .100
5-103168-1
te connectivity / amp

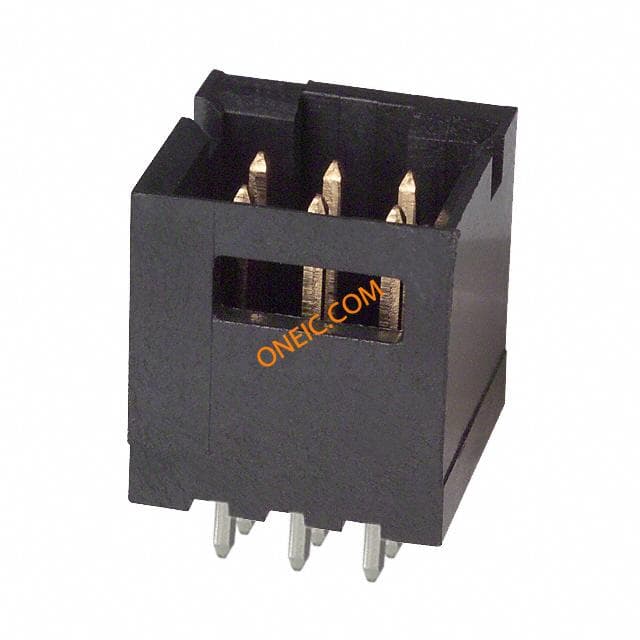

Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 6 POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 6WAY MODUTHRUDRHDRSHRD,06MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MODII HDR DRST SHRD .100CL
146257-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 6POS DL GOLD
3-87579-5
te connectivity / amp

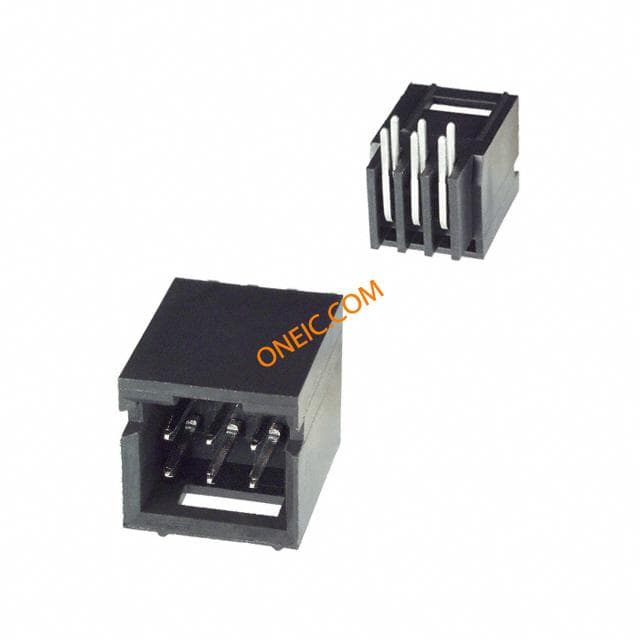

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 6POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded6 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRRA SHRD .100CL
103166-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 6POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUR/ADRHDRSHRD,06MODIIHDRDRRASHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MODII HDR DRRA SHRD .100CL
104353-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS R/A DUAL
104352-3
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS DUAL TIN
103168-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 6 POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUDRHDRSHRD,06MODIIHDRDRSTSHRD.100CL 06 MODII HDR DRST SHRD .100CL
5-146254-3
te connectivity / amp

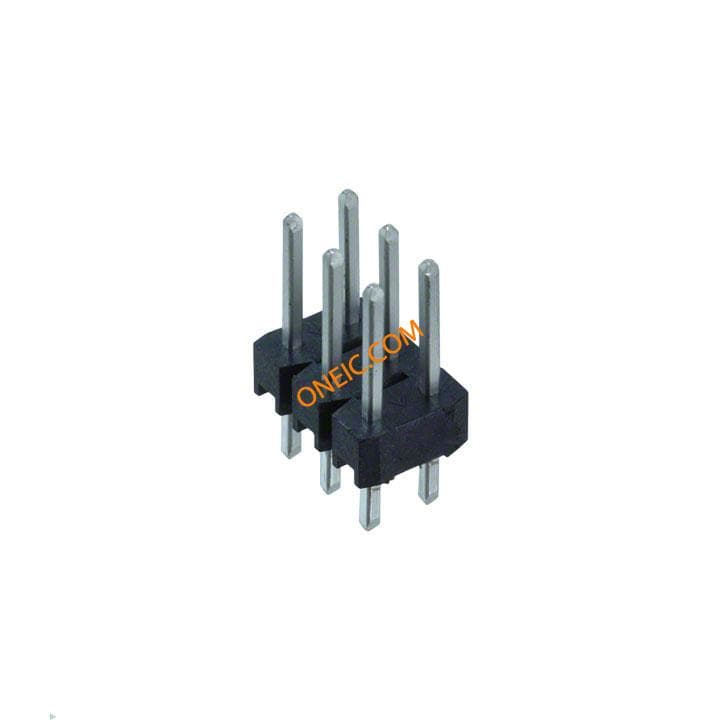

Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 6POS DL .100 Headers & Wire Housings 6P HEADER TIN double row Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Breakaway6 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRST B/A .100CL
