521780-1
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 7.11mm Crimp ST Cable Mount Loose Piece Positive Lock Connectors CONN RCPT HSG 5POS .250 NATURAL Pluggable Terminal Blocks POSI LOCK HSG MKIII Conn Housing RCP 5 POS 7.11mm Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IIIReceptacle Style = StraightPackaging Method = Loose PieceSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONNECTOR, PLUG, POSITIVE LOCK, 5WAY Housing,Receptacle,PositiveLock,5Position 5 Position 7.12mm Straight Style Positive Lock Receptacle PL MKIII 250 REC HSG 5P NYLON NAT |
| Category |
Business
| Product | Pluggable Terminal Blocks | Other Names | 5217801 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Mechanical
| Color | Natural | Depth | 24.91 mm |
| Pitch | 7.11 mm | Height | 17.78 mm |
| Weight | 0.02 | Material | Nylon 6/6 |
| Key Color | None | Packaging | Bulk |
| Tab Width | 6.35 [.250] | Polarization | Yes |
| Housing Color | Natural | Mounting Type | Straight |
| Terminal Size | 0.250" (6.35mm) | Terminal Type | Quick Connect, Disconnect |
| Number of Rows | 1 | Connector Style | Straight |
| Housing Material | Nylon | Length - Overall | 7.11 [0.280] |
| Package Quantity | Loose Piece | Primary Material | InterconnectSystem |
| Number of Contacts | 5 | Stacking Direction | Side to Side |
| Number of Positions | 5 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Style | Housing | Gender | RCP |
| Series | :Positive Lock Mark III | Coded, Keyed | No |
| Manufacturer | PositiveLock | Product Type | Receptacle Housing |
| For Use With/Related Products | 0.250" (6.35mm) Quick Connects | ||
Similar Parts
1217092-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Positive Lock Connectors CONN UNINS RCPT 12-16AWG 0.250 Headers & Wire Housings 250 POSI-LOCK RCPT 0157 TPBR Quick Disconnect Terminal 12-16AWG F 19.58mm 7.62mm Tin Strip Quick Disconnect Terminal 12-16AWG F 19.58mm 7.62mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IIIReceptacle Style = StraightWire Range = 1.25-3.00² [16-12] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL 250 TERMINAL REC 16-12 AWG TPBR

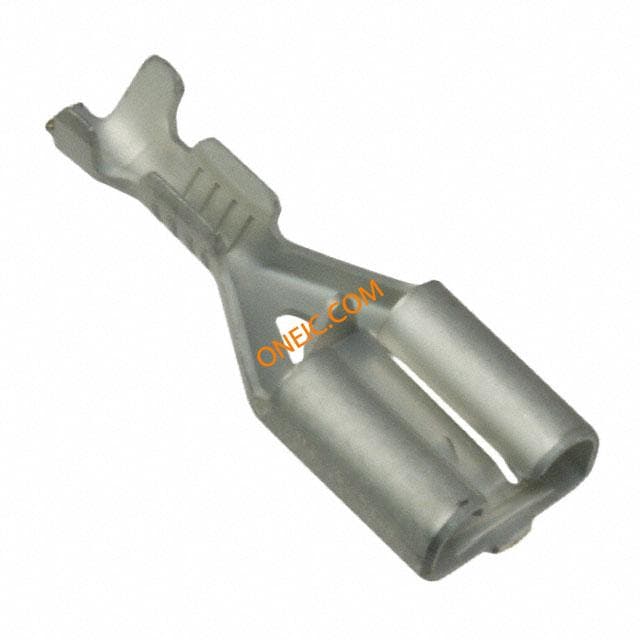

63933-2
