点击放大查看
5103310-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 16POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X008P R/A LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;16;Gold A/L LOW PRO HDR 16P RA BLACK |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 90 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Current Rating (Max) | 1A |
| Insulation Resistance | 5000 MOhms | ||
Mechanical
| Color | Black | Depth | 12.31 mm |
| Pitch | 2.54 mm | Height | 9.14 mm |
| Weight | 0.002 | Packaging | Tube |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 27.94 mm |
| Primary Material | InterconnectSystem | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 16 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 16 |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 3.43 mm |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMP LATCH | Manufacturer | AMP-LATCH |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
1658621-3
te connectivity / amp
Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 16POS W/POL 15 GOLD 16way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 16P NOVO Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 16WAY Connector;Novo;16;RibbonCable;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:16; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 16P, 1658621-3, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 16路 2.54mm节距 直角 电缆安装 母 IDC 连接器 16 NOVO MIL/CTR 15DP,LEAD FREE
102387-3
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings CNTR PLRZD HG 16 DBL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 16WAY Housing,Connector;ModIV;Dual;16;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 16 Double row / straight / with polarization AMPMODU MOD IV, 102387-3, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 16 MODIV HSG COMP DR .100 POL
1658620-3
te connectivity / amp
Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 16POS 15 GOLD Connector,Receptacle,Novo,16,Gold(15) Headers & Wire Housings MLTRY PLRZD RECPT 16 NOVO Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM Connector,Receptacle;Novo;16;Gold(15);Tin-Lead;0.100in.x0.100in. 16 NOVO MIL 15DP, LEAD FREE

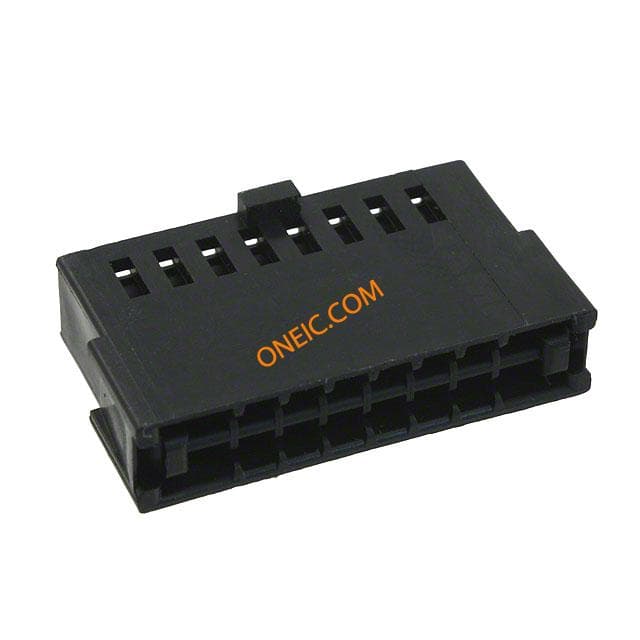

487223-3
