5-640441-0
| Manufacturer | |
| Description | Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 20POS 24AWG MTA100 Headers & Wire Housings 20P MTA100 CONN ASSY WHT Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 20Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 20WAY 20P MTA100 CONN ASSY WHT |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Range deg/s | :TE - MTA-100 Series | Voltage Rating | 250 VAC |
| Voltage - Rated AC | 250 | Contact Rating (Current) | :4A |
Mechanical
| Color | White | Pitch | 2.54 mm |
| Weight | 0.0369 | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Cable Exit | 90° | Wire Gauge | 24 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Lead Spacing | :2.54mm | 2nd Connector | With |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Closed End | Contact Finish | Tin Over Nickel |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | :Thermoplastic |
| Connector Usage | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Natural |
| Mating Orientation | Without | Number of Contacts | 20 |
| Contact Termination | :IDC / IDT | Number of Positions | 20 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.2² [24] |
| 1st Connector Mounting Type | :PC Board | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-100 | Features | Closed End |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Documents & Media
Similar Parts
58246-1
te connectivity / amp
Connector Accessories MTA100 Receptacle Connector Terminating Head Crimpers .100 INTRCHNG HEAD CLOSED END HEAD ASSEM TOOL FOR MTA-100 RECP AMP MTA termination head,0.1in pitch TOOL, RECEPTACLE HEAD, 0.1" AMP;HEADFORMTA-100 Head; Series: MTA-100; Size:22 AWG,24 AWG,26 AWG,28 AWG Mounting tool for MTA-100, 58246-1, TE Connectivity TE Connectivity MTA-100 系列 端接工具头部
58074-1
te connectivity / amp
Assembly Tools, Hand Tools For IDC Products Hand Tools HAND TOOL PISTL GRIP TOOL MANUAL FOR SHELL CONNECTORS AMPLIMITE HDE-20 pistol grip tool handle TOOL, HAND, IDC, MTA TOOL;PISTOLGRIPHANDLEONLY Tool: for crimping; Series: MTA-100,MTA-156 Pistol grip, manual handle, for IDC termination, 58074-1, TE Connectivity TE Connectivity 手工工具

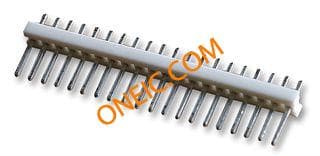

2-640452-0
