5-569552-4
| Manufacturer | |
| Description | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Bag Cat 5 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED CAT5 RJ45 MODULAR PLUG, 8POS, 1 PORT Modular UTP Plug RJ45 |
| Category |
Business
| Standard Package | 25 | ||
Compliance
| Tariff No | 85369010 | ||
Electrical
| Connector - Voltage Input | :Cat5 | ||
Mechanical
| Color | Translucent - Clear | Length | 0.915" (23.24mm) |
| Weight | 0.068 | Packaging | Bulk |
| Shielding | Shielded | Cable Type | Round Cable, Stranded Wires |
| Wire Gauge | 24-26 AWG | Termination | IDC |
| Connector Type | :RJ45 | Contact Finish | Gold |
| Shield Material | Copper Alloy | Contact Material | Phosphor Bronze |
| Housing Material | Polycarbonate (PC) | Number of Contacts | :8 |
| Contact Termination | :IDC / IDT | Number of Positions | :8 |
| Contact Finish Thickness | 50µin (1.27µm) | ||
Product Info
| Gender | :Plug | Number of Ports | :1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat5e | ||
Documents & Media
Similar Parts
1-569875-0
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Gray Modular Plugs and Accessories CONN ACCY BOOT HOODED GRAY Modular Connectors / Ethernet Connectors MOD PLUG BOOT GRAY Connector Accessories Modular Plugs Snagless Boot Gray Product Highlights:BootBoot Type = SnaglessBoot Color = GraySearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN
569875-1
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Black Modular Plugs and Accessories CONN ACCY BOOT HOODED BLACK Cable boot, cat3/5/5e modular plug,black Cable Boots MOD PLUG BOOT Connector Accessories Modular Plugs Snagless Boot Black Product Highlights:BootBoot Type = SnaglessBoot Color = BlackSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, 8WAY CableBoot;Snagless;Black;0.21in.;RoHSCompliant,ELVCompliant Modular Plug UTP Boot
569875-5
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Blue Modular Plugs and Accessories CONN ACCY BOOT HOODED BLUE Cable boot, cat3/5/5e modular plug, blue Cable Boots BLUE BOOT Connector Accessories Modular Plugs Snagless Boot Blue Product Highlights:BootBoot Type = SnaglessBoot Color = BlueSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Blue;0.21in.;RoHSCompliant,ELVCompliant 5.33 mm Cable Diameter Blue Snagless Boot
569875-3
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Red Modular Plugs and Accessories CONN ACCY BOOT HOODED RED Cable boot, cat3/5/5e modular plug, red Cable Boots RED BOOT Connector Accessories Modular Plugs Snagless Boot Red Product Highlights:BootBoot Type = SnaglessBoot Color = RedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Red;0.21in.;RoHSCompliant,ELVCompliant
558527-1
te connectivity / amp
Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Modular Plugs and Accessories CONN ACCY STRAIN RELIEF Modular Connectors / Ethernet Connectors STRAIN RELIEF Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Product Highlights:Strain ReliefSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, STRAIN RELIEF, BRASS
2-231652-1
te connectivity / amp
Modular Plug Hand Tool Crimpers HAND TOOL Hand Tools HAND TOOL TOOL CRIMP MOD 8POS WITH DIE AMP RJ45 modular plug termination tool CRIMP TOOL Crimper;Ratchet;ModularPlug;8-PosLineKeyed,Non-Keyed;853400-1Die Crimp tool, 2-231652-7, TE Connectivity TE Connectivity 8 Position Modular Plug RJ45 压接工具

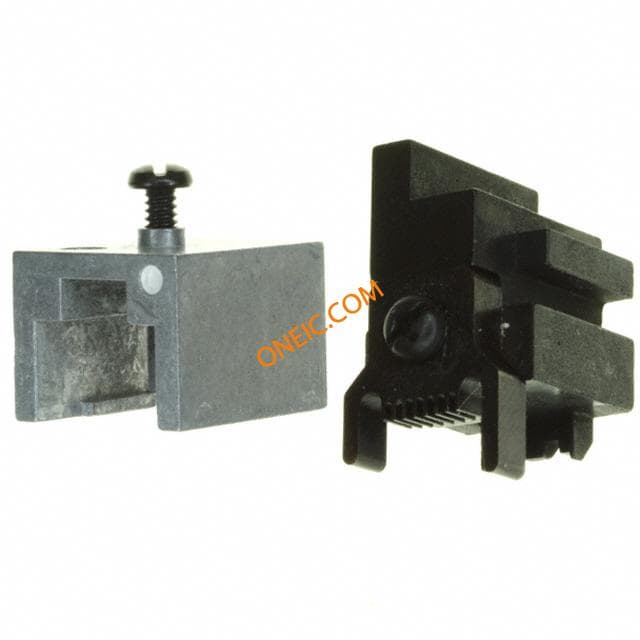

1-853400-0
