5-5175474-6
| Manufacturer | |
| Description | Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN RECEPT .050 50POS R/A 30AU Board to Board & Mezzanine Connectors R.A. RECPT 50P Series I standard Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 501.27 mm CenterlineStandard Profile |
| Category |
Business
| Other Names | A33468 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | Trays | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Switch Function | Without | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Sealed | Without | Packaging | Tray |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | High Density (HD) | Contact Finish | Gold (30) |
| Material - Tip | Brass | Mounting Style | Thru Hole |
| Number of Rows | 2 | Plating - Body | Tin over Nickel |
| Connector Style | Outer Shroud Contacts | Profile (W x H) | Standard |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 1.27 [0.050] | Number of Contacts | 50 |
| Number of Positions | 50 | Termination Post Length | 3.10 [0.122] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | SCSI | Gender | RCP |
| Series | CHAMP .050 I, AMP | Features | Board Lock |
| Main Purpose | Board Lock | Manufacturer | AMP |
| Product Type | Connector | Output Configuration | Through Hole, Right Angle |
| For Use With/Related Products | Board To Board Applications | ||
Environmental
| Temperature Rating | Standard | ||
Documents & Media
Similar Parts
1734100-5
te connectivity / amp
Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN PLUG 50POS VERT .050 T/H Board to Board & Mezzanine Connectors 050 SER I 50P PLUG ASSY Conn SCSI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorApplies To Printed Circuit BoardHousing Gender = Plug50 Positions1.27 mm Centerline Champ050 series,50pos,Au over PdNi

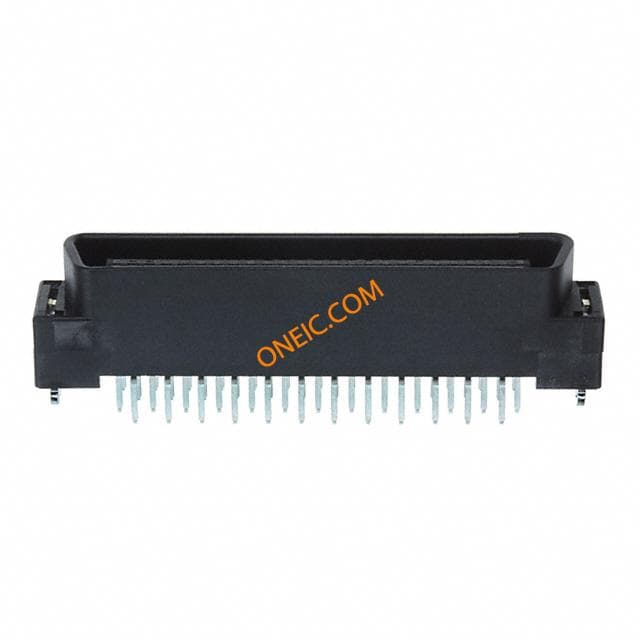

5-5175473-6
