5-147377-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN HEADER 20POS DUAL SMD GOLD TE Connectivity AMPMODU Series 1.27mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings HDR 2X10P VRT SMT 750 Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD T/R Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU Headervertsmt20w2row1.27mmAmpModu TE Connectivity AMPMODU System 50 系列 1.27mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 20 SYS50 SMT HDR DR SHD SN |
| Category |
Business
| Tradename | AMPMODU | Other Names | A105474CT |
| Product Category | Headers & Wire Housings | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 V ac | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 带有 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1 |
| Insulation Resistance | 5,000 | Voltage - Supply (Min) | 30VAC |
| Voltage - Protection Rating (VPR) | 500 V | ||
Mechanical
| Color | Black | Depth | 8.74 mm |
| Pitch | 1.27 mm | Height | 11.05 mm |
| Base Type | 带有 | Packaging | Tape & Reel (TR) |
| Shrouding | Yes | Body Color | 黑色 |
| Lead Style | 圆形 | Shaft Size | .022 |
| Orientation | 直 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| Lead Spacing | 0.100" (2.54mm) | 2nd Connector | With |
| Housing Color | Black | Mounting Type | Vertical |
| Connector Type | Shrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Surface Mount | Number of Rows | 2 |
| Height (Inches) | 0.435" (11.05mm) | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic Glass Reinforced |
| Length - Overall | 18.9 mm | Package Quantity | Tape & Reel |
| Panel Mount Type | 表面贴装 | Primary Material | Connector |
| Termination Rows | 焊接 | Pin Hole Diameter | .031 |
| Pitch - Connector | .1 | Termination Style | SMD |
| Height Above Board | 0.125" (3.18mm) | Number of Contacts | 20 |
| Termination Finish | 带罩 | Number of Positions | 20 |
| Contact Length - Post | 0.435" (11.05mm) | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | Number of Positions/Bay/Row | All |
| Termination Finish Thickness | 150 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU | Coverage | 覆盖 |
| Key Type | 是 | Manufacturer | AMP |
| Product Type | Header Assembly | Selectively Loaded | No |
| Output Configuration | Surface Mount | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65C to 105C | ||
Documents & Media
Similar Parts
2-487937-0
te connectivity / amp
Conn Housing RCP 20 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 20POS.050 DUAL W/LATCH FFC & FPC Connectors 20 RCPT 50CL DR LTCH Conn Housing RCP 20 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 20Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 020 HOUSING FFC 50CL DR LATCH

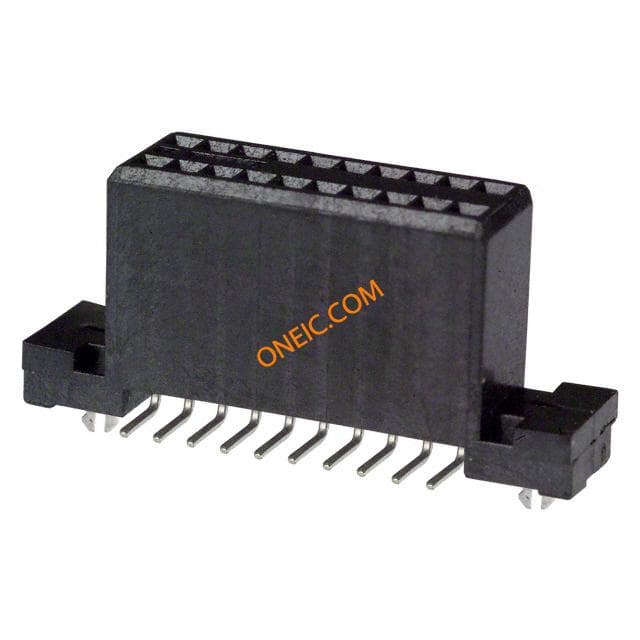

5-104550-2
te connectivity / amp
Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 20POS .050 DUAL SMD Board to Board & Mezzanine Connectors 20 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 20 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 20Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 20 SYS50 SURFMNT DRST RCPT SN

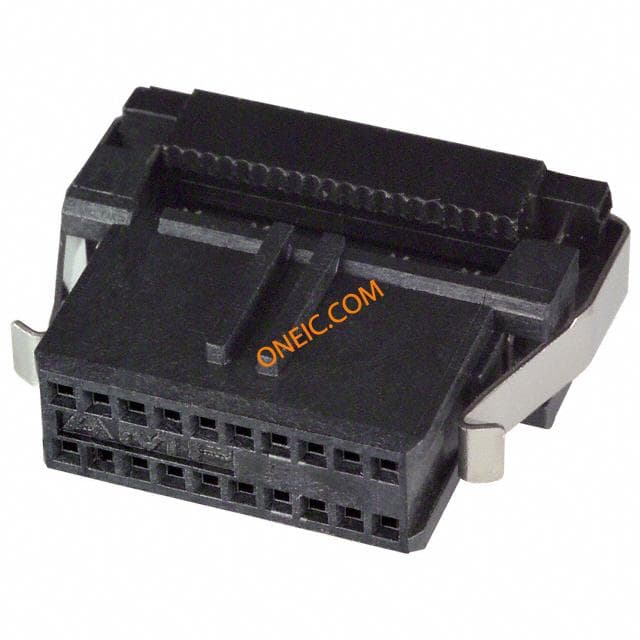

1-111196-8
