点击放大查看
5-147278-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 3POS R/A SMD GOLD Headers & Wire Housings 03 MTE HDR SRRA SFMNT .100CL Conn Shrouded Header HDR 3 POS 2.54mm Solder RA SMD T/R Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 3A , 表面安装 03 MTE HDR SRRA SFMNT .100CL |
| Category |
Business
| Tradename | AMPMODU | Other Names | A100890CT |
| Standard Package | Tape & Reel | Factory Pack Quantity | 300 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 600 V | Switch Function | Latched |
| Current Rating (Max) | 3 A | Insulation Resistance | 5000 MOhms |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.00136 | Packaging | Tape & Reel (TR) |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Thermoplastic | Termination Style | SMD |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Contact Termination | :Surface Mount Right Angle | Number of Positions | 3 |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MTE | Features | Board Lock, Solder Retention |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
5-103968-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR RIBBED .1010CL
5-103972-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip 8X3 MTE RCPT SR RIBBED .100CL 8X3 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103973-2
te connectivity / amp
8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL
5-103969-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL 8X3 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103971-2
te connectivity / amp
8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL
5-103959-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR LATCH .100CL Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103961-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR LATCH .100CL Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103960-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 26-30 GOLD Headers & Wire Housings HSG&REC 1X03C P/L 30-26AWG Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, IDC, 2.54MM, 3WAY 8X3 MTE RCPT SR LATCH .100CL
5-103970-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 8X3 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

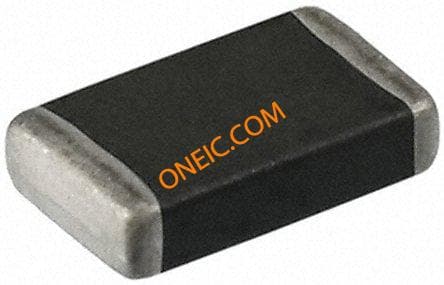

RN73C1J1K02BTG
