点击放大查看
5-104361-1
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 2POS 15AU TE Connectivity MTE Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADERHORIZ2WAYLATCH TE Connectivity AMPMODU MTE 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 02 MTE HDR SRRA LATCH W/HLDWN |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Contact Resistance | 15 mohm | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3A | Insulation Resistance | 5000 MΩ |
| Voltage - Protection Rating (VPR) | 600 V | ||
Mechanical
| Color | Black | Depth | 13.59 mm |
| Pitch | 2.54 mm | Height | 6.65 mm |
| Length | 7.62 mm [ .3 in ] | Packaging | Tube |
| Body Color | 黑色 | Lead Style | 直角 |
| Orientation | 直角 | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Plating - Body | Tin | Insert Material | 黄铜 |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 7.62 mm | Mounting Feature | 压具 |
| Package Quantity | 70 | Panel Mount Type | 直角 |
| Termination Rows | 焊接 | Termination Style | 插针 |
| Number of Contacts | 2 | Termination Finish | 带有 |
| Number of Positions | 2 | Compatible Shell Size | 母端护套组件 |
| Contact Length - Post | 3.3 mm [ .13 in ] | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Length - Mating | 0.230" (5.84mm) |
| Surface Mount Land Size | Without | Termination Post Length | 5.84 mm [ .23 in ] |
| Contact Finish Thickness | 15µin (0.38µm) | Static Discharge Shielding | 不带 |
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | MTE |
| Coverage | 覆盖 | Features | Board Lock |
| Product Type | 连接器 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -65C to 105C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
104257-1
te connectivity / amp
Conn Housing RCP 2 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .1" POL UNLOAD 2 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 2P Conn Housing RCP 2 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 2WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:2; w/o terminals; 2.54mm; for cable TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 2 路 直 母 PCB 壳体 02 MTE RCPT HSG SR LATCH .100
103961-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 2POS .100 26-30 30GOLD Headers & Wire Housings 10X2 MTE RCPT SR LATCH .100CL 10X2 MTE RCPT SR LATCH .100CL
103957-1
te connectivity / amp
Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 2P Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,10X2MTERCPTSRLATCH.100CL 10X2 MTE RCPT SR LATCH .100CL

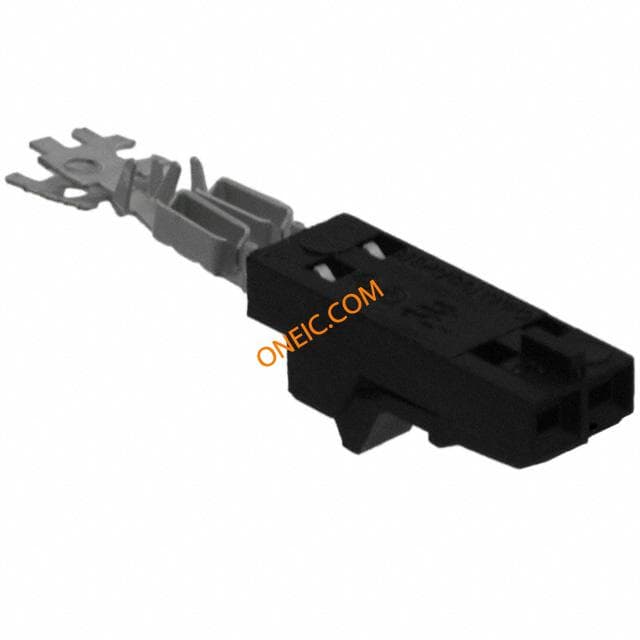

5-103959-1
