5-103961-8
| Manufacturer | |
| Description | Conn IDC Connector RCP 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 2X9 MTE RCPT SR LATCH .100CL Headers & Wire Housings 2X9 MTE RCPT SR LATCH .100CL 2X9 MTE RCPT SR LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 24 |
| Standard Package | 504 | Factory Pack Quantity | 24 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 267 V | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Voltage - Protection Rating (VPR) | 600 VAC | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 5.08 mm [ .2 in ] | Length | 45.72 mm [ 1.8 in ] |
| Lock Type | Latch | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Body Color | 黑色 |
| Wire Gauge | 26-30 AWG | Row Spacing | 2.54 mm |
| Termination | IDT | Contact Type | Female Socket |
| 2nd Connector | With | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Operating Force | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 24 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 9 | Insulation Diameter | 1.37 mm [ .054 in ] |
| Number of Positions | 9 | Compatible Shell Size | 与接头配合 |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 带有 |
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Type | IDC Connector |
| Gender | RCP | Series | AMPMODU MTE |
| Features | Closed End | Product Type | Headers |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts

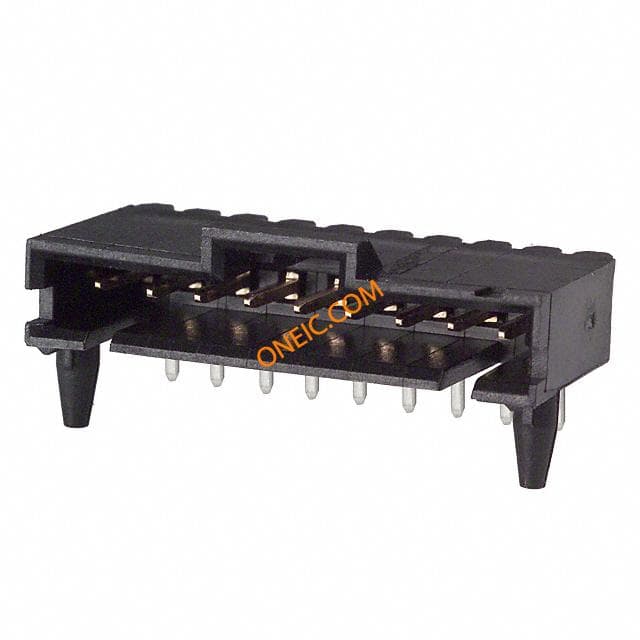

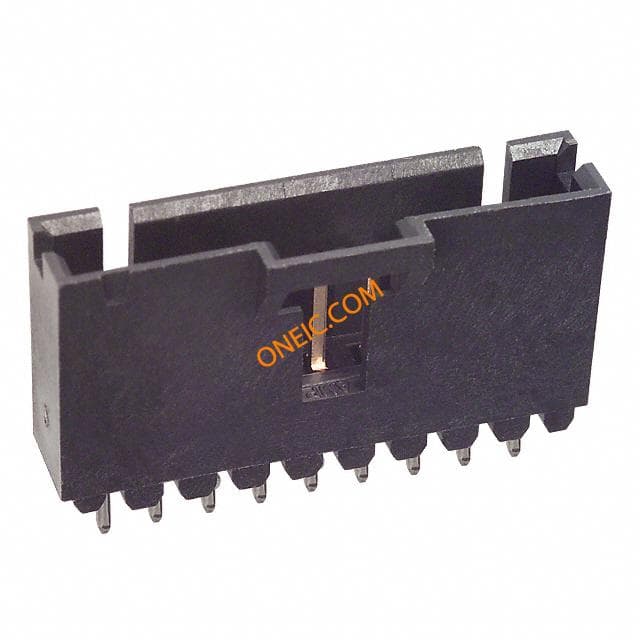

5-104362-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 9 Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 9POS, 2.54MM 09 MTE HDR SRST LATCH W/HLDWN
5-104361-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 9POS 15AU Headers & Wire Housings HDR HI TEMP 9 POS with swage 09 MTE HDR SRRA LATCH W/HLDWN 09 MTE HDR SRRA LATCH W/HLDWN Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

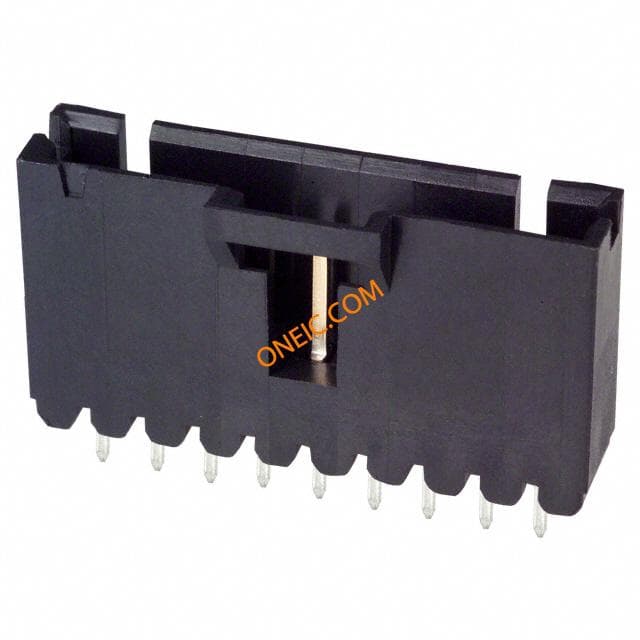

5-104363-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU TE Connectivity MTE Series 2.54mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 09 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 09 MTE HDR SRST LATCH .100CL
103653-8
te connectivity / amp
Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 9P Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 9 路 直 公 电缆安装 PCB 连接器外壳 09 MTE SHRD PIN HSG SR LATCH

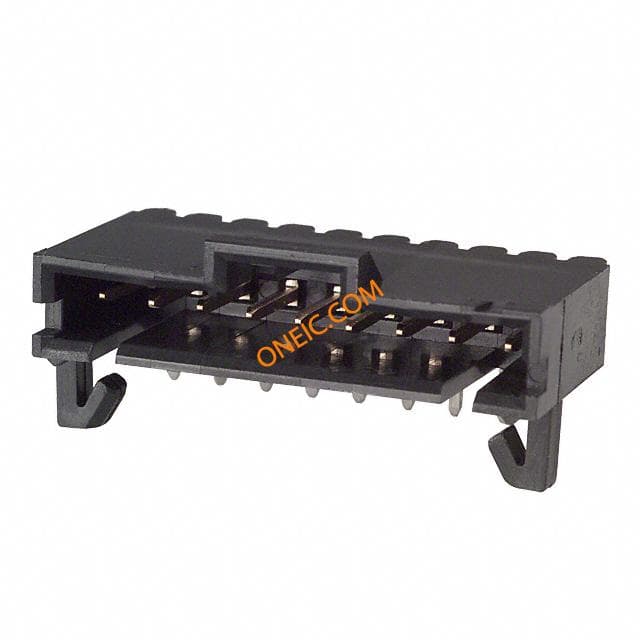

5-103673-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 9POS 15AU Header 9 way pin 2.54mm IDC AmpModu Headers & Wire Housings HDR PIN 1X09C R/A THRU HOLE Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 9POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 9 MTE HDR SRRA LATCH W/HLDWN

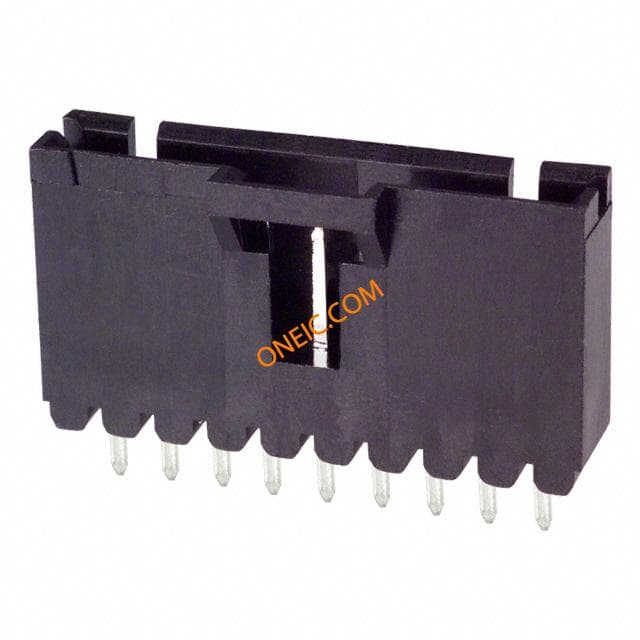

5-103639-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 9POS PCB TIN Headers & Wire Housings LTCH HDR W/O SWAGE 9 09 MTE HDR SRST LATCH .100CL 09 MTE HDR SRST LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-104809-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADR 9POS VERT LATCH 15AU Headers & Wire Housings 09 MTE HDR SRST LATCH W/HLDWN 09 MTE HDR SRST LATCH W/HLDWN 09 MTE HDR SRST LATCH W/HLDWN Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

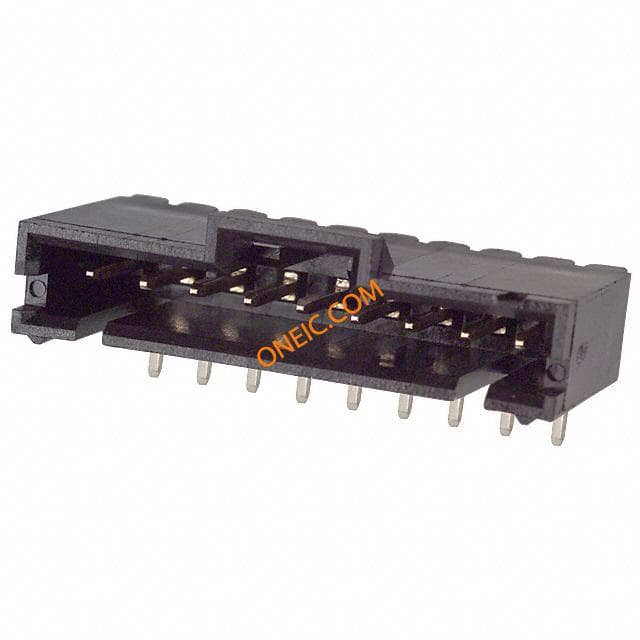

5-103635-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 9POS 15AU Headers & Wire Housings HDR R/A .100 9P 15AU Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm9 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE HDR SRRA LTCH.100CL LF
5-104935-9
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 9POS 30AU Headers & Wire Housings HDR R/A .100 9P 30AU Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE HDR SRRA LTCH.100CL LF
5-103944-8
te connectivity / amp
Conn IDC Connector RCP 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .100 POLAR TIN Headers & Wire Housings PIN ASSEMBLY 9P 5-103944-8 Conn IDC Connector RCP 9 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X9 MTE SHRD PIN SR POL .100CL
5-103946-8
te connectivity / amp
Conn IDC Connector PIN 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .100 POLAR 30AU Conn IDC Connector PIN 9 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X9 MTE SHRD PIN SR POL .100
5-103945-8
te connectivity / amp
Conn IDC Connector PIN 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .100 POLAR 15AU Conn IDC Connector PIN 9 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X9 MTE SHRD PIN SR LATCH .100
5-1375549-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 9POS IDC STR SMD TIN Headers & Wire Housings 09 MTE VERT SMT HDR FULL LF-PB 09 MTE VERT SMT HDR FULL LF-PB 09 MTE VERT SMT HDR FULL LF-PB Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103904-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 9POS 30AU Headers & Wire Housings 9 MTE HDR SRRA LATCH W/HLDWN .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 9 MTE HDR SRRA LATCH W/HLDWN
5-103949-8
te connectivity / amp
Conn IDC Connector PIN 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 2X9 MTE SHRD PIN SR LTCH .100 Headers & Wire Housings 2X9 MTE SHRD PIN SR LTCH .100 2X9 MTE SHRD PIN SR LTCH .100 Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

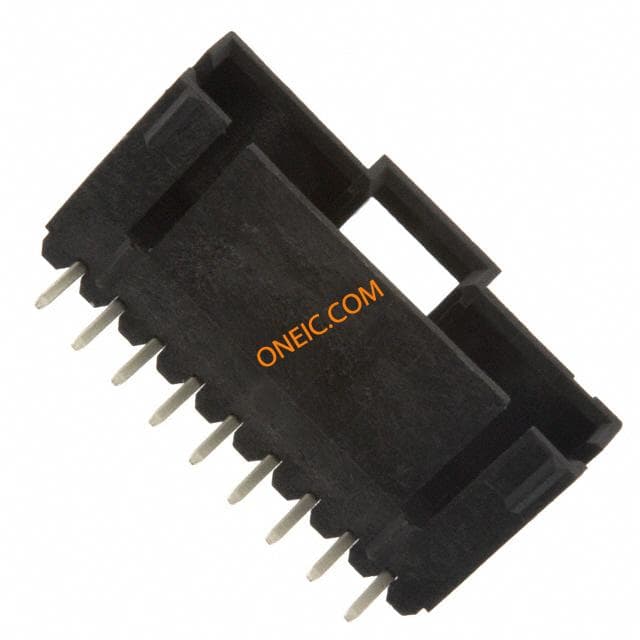

5-103634-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 9POS PCB TIN Headers & Wire Housings 09P HDR SRRA LATCH Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE HDR SRRA LATCH.100CL LF

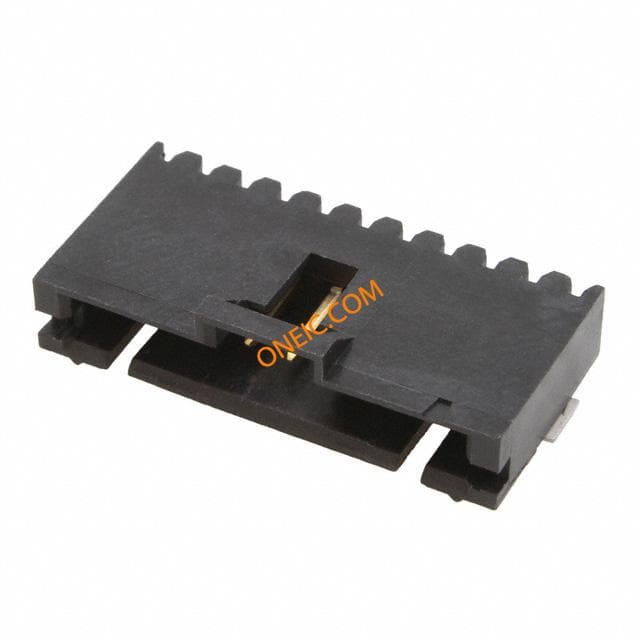

5-147278-8
