点击放大查看
487769-9
| Manufacturer | |
| Description | Conn Housing RCP 11 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 11POS HOUSING FFC .100 FFC & FPC Connectors 011 HOUSING FFC RCPT 100CL SR Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 11Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 011 HOUSING FFC RCPT 100CL SR |
| Category |
Business
| Standard Pack | 1 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | Yes |
Electrical
| Voltage Rating | 300V | Voltage - Supply | 300 VAC |
| Resistance - Input | 5000 | Voltage - Clamping | 720 |
| Connector Impedance | 制动器窗口 | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Cable Type | FFC |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Slimline |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Locking Feature | Detent | Housing Material | Thermoplastic |
| Length - Overall | 2.54 [0.100] | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Termination Style | 插座 | FFC, FCB Thickness | 0.05-0.13mm |
| Mating Orientation | Without | Number of Contacts | 11 |
| Number of Positions | 11 | Mounting Hole Diameter | 带有 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Features | Detent Lock |
| Product Type | Housing | Flat Flex Type | FFC |
| Connection Type | FFC Cable | ||
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Documents & Media
Similar Parts
5-103080-9
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 11POS PCB TIN Headers & Wire Housings 11 MODII HDR SRST SHRD .100CL 11 MODII HDR SRST SHRD .100CL 11 MODII HDR SRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
102202-8
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 11POS 15AU Headers & Wire Housings 11 MODII HDR SRST SH 136 11 MODII HDR SRST SHRD .100CL
5-102203-8
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 11POS 15AU Headers & Wire Housings 11 MODII HDR SRRA SHRD LF 11 MODII HDR SRRA SHRD LF 11 MODII HDR SRRA SHRD LF Search Keywords:board to board, AMPMODU, pcb connectors,
2-487406-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts FFC RCPT CONTACT STD PRESSURE Contact female IDC 2.54mm FFC FFC & FPC Connectors 100X100 SKT Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle, standard pressure2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableTin Contact Mating Area PlatingSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, SOCKET, IDC / IDT CONTACT,SOCKET,FLXIBLEFILM,2.54MMCENTERLINE TE Connectivity FFC 系列 压接接线端子, 压接, 镀金镀镍触点 FFC,RCPT CONTACT,STD PRESSURE
487117-9
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts CONN SOCKET FFC .100 HI PRESSURE FFC & FPC Connectors FFC RCPT CONTACT HIGH PRESSURE 487117-9 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle, high pressure2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableTin Contact Plating, Mating Area, MaterialSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, FFC,RCPT CONTACT,HIGH PRESSURE
487406-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip FFC & FPC Connectors RECPT CONTACT AU 56000 Flexible Film Contacts CONTACT 30AU CRIMP FLAT FLEX Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle, standard pressure2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (30) Contact Mating Area PlatingSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, FFC RCPT CONT SP 30AU RL
487117-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts CONN SOCKET FLEX FLAT CABLE 15AU FFC & FPC Connectors FFC RCPT HP 15AU RL Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle, high pressure2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (15) Contact Mating Area PlatingSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, SOCKET, IDC / IDT FFC.100CLRECPTCON,FFCRCPTHP15AURL FFC RCPT HP 15AU RL
487117-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts CONN SOCKET FLEX FLAT CABLE 30AU FFC & FPC Connectors FFC RCPT HP 30AU RL 487117-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle, high pressure2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (30) Contact Mating Area Plating MaterialSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, FFC RCPT HP 30AU RL

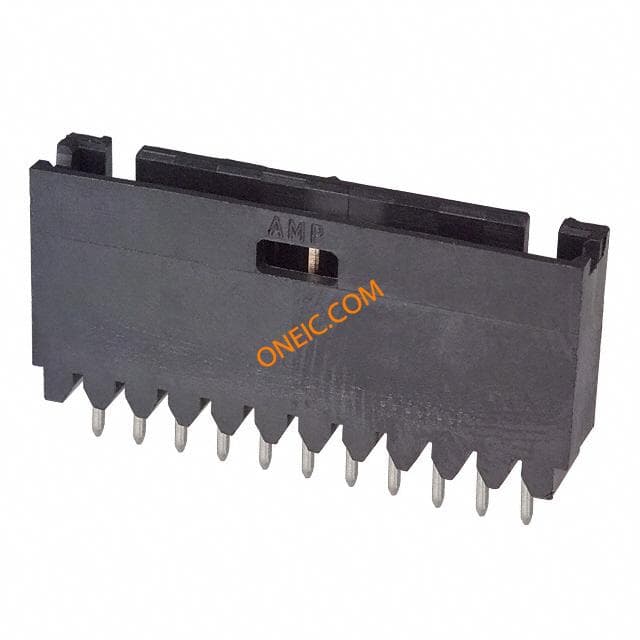

5-102202-8
