487545-2
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 1.27mm Crimp ST .050 X .100 AMPMODU System 50 CONN RECEPT 5POS .050 W/LATCH FFC & FPC Connectors 5P RCPT HOUSING Conn Housing RCP 5 POS 1.27mm Crimp ST Product Highlights:HousingHousing Type = Housing - Receptacle5 PositionsNumber of Rows = SingleWith Mating Connector LockSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU FFC/FPC CONNECTOR, RECEPTACLE, 5POS 1ROW 005 HOUSING FFC RCPT 050CL SR |
| Category |
Business
| Other Names | 4875452 | Product Category | FFC & FPC Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 100V | Voltage - Breakdown | 300 |
| Current Rating (Max) | 1.5A | Insulation Resistance | 5,000 |
Mechanical
| Color | Black | Depth | 14.86 mm |
| Pitch | 1.27 mm | Height | 6.22 mm |
| Weight | 0 | Packaging | Bulk |
| Cable Type | Flexible Flat Conductor Cable | 2nd Connector | With |
| Edge Contacts | No | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Housing for Female Contacts |
| Contact Finish | Gold | Number of Rows | 1 |
| Connector Usage | Receptacle | Insertion Force | Normal |
| Locking Feature | Latch | Contact Material | :- |
| Housing Material | Thermoplastic | Length - Overall | 7.44 mm |
| FFC, FCB Thickness | 0.05-0.08mm | Number of Contacts | 5 |
| Contact Termination | :- | Number of Positions | 5 |
| Center Contact Material | 1.27 [0.050] | ||
Product Info
| Type | Housing | Gender | RCP |
| Series | 487 | Features | Latch Lock |
| Product Type | Housing | ||
Environmental
| Temperature Range | -55 â +105 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
Similar Parts
104071-2
te connectivity / amp
Conn Shrouded Header HDR 5 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 5POS .050 VERT GOLD Headers & Wire Housings 05 SYSTEM 50 HDR SRST SHRD .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 5Number of Rows = SingleShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 05 SYSTEM 50 HDR SRST SHRD

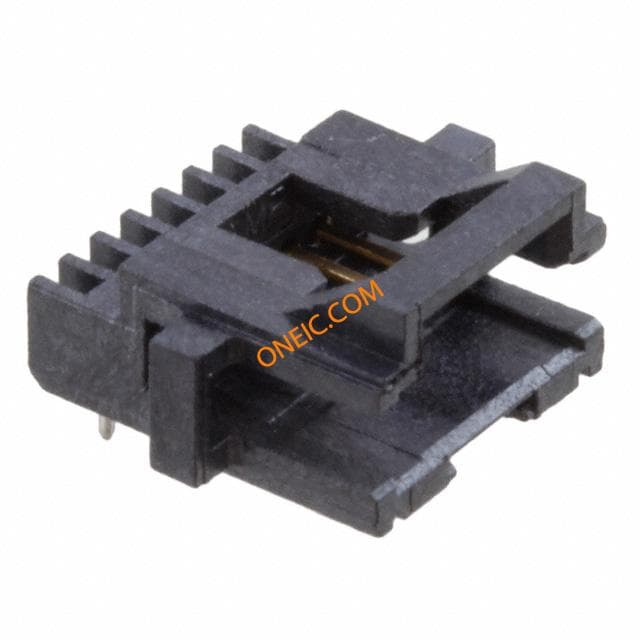

5-104074-2
te connectivity / amp
Conn Shrouded Header HDR 5 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 5POS .050 R/A GOLD Headers & Wire Housings 050X100 HDR 1X05P R/A T/H Conn Shrouded Header HDR 5 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Connector Type = Header - Pin5 PositionsNumber of Rows = SingleShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU CONNECTOR, HEADER, THT, 2.54MM, 5WAY TE Connectivity AMPMODU System 50 系列 1.27mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 1A , 通孔 05 SYSTEM 50 HDR SRRA SHRD SN
1-487547-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts CONN RECEPT .050 CRIMP LONG GOLD .050 Contact,rcp,IDC,1.27mm FFC & FPC Connectors 050X100 SKT Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle1.27 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (30) Contact Mating Area PlatingSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, CRIMP, RECEPTACLE, IDC/IDT CONTACT,RECEPTACLE,FLXIBLEFILM,1.27MMCENTERLINE TE Connectivity FFC 系列 压接接线端子, 压接, 镀金镀镍触点 FFC,RCPT CONTACT,.050" CNTRLIN

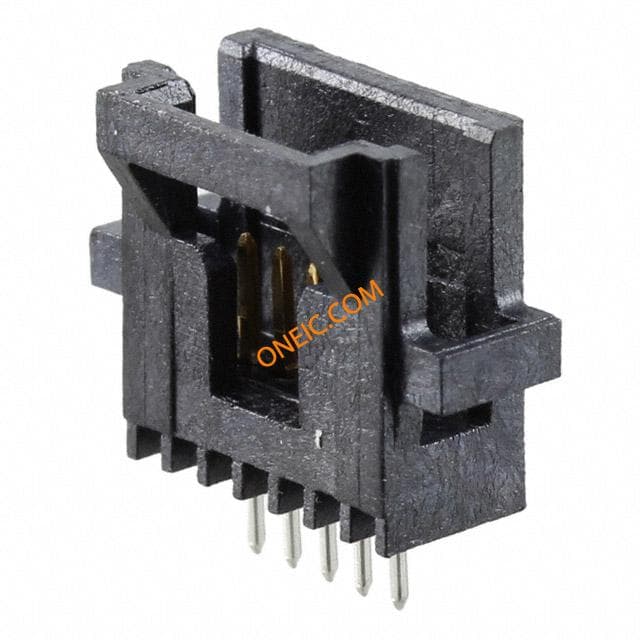

5-104071-2
