446405-4
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 25 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | Qualification | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | Not ELV/RoHS compliant |
| Approval Agency Marking | No | ||
Electrical
| Connector Impedance | Yes | ||
Mechanical
| Color | Blue | Material | Stainless Steel |
| Packaging | Bulk | Shell Size | 4 |
| Termination | Solder | Contact Size | 20 |
| Contact Type | Coax or Power | Non-Magnetic | No |
| Mounting Type | Cable Mount | Shell Plating | Tin over Copper |
| Connector Type | Plug for Male Contacts | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Wire | Number of Pins | Without |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub, Combo | Insertion Angle | 8C8 |
| Number of Contacts | 8Power/8Signal POS | Dielectric Material | Polyester |
| Number of Positions | 8 (Coax or Power) | Bushing, Grommet Type | No |
| Mounting Hole Diameter | 3.05 [.120] | Shell Finish Thickness | 200µin (5.08µm) |
| Shell Material, Finish | Steel, Tin Plated | Shell Size, Connector Layout | 4 (DC, C) - 8W8 |
Product Info
| Note | Cable clamp/strain relief hardware cannot be used with these arrangements. | Type | D-Subminiature |
| Gender | PL | Series | 109 |
| Density | Standard | Features | Grounding Indents |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | Coaxial Cable, Printed Circuit Board, Wire | ||
Documents & Media
Online Document
Similar Parts
211159-2
te connectivity / amp
$451.2480
Details
228618-1
te connectivity / amp
$149.3450
Details
228618-2
te connectivity / amp
$311.2360
Details
5-228618-1
te connectivity / amp
$124.1000
Details
5-228618-4
te connectivity / amp
$207.7400
Details
212013-1
te connectivity / amp
$37.9440
Details
212007-1
te connectivity / amp
$154.4642
Details
228618-4
te connectivity / amp
$103.9516
Details
211159-1
te connectivity / amp
$30.6000
Details
445730-5
te connectivity / amp
$46.2094
Details
449379-2
te connectivity / amp
$101.0834
Details
449379-1
TE Connectivity / AMP
$59.7788
Details
447720-1
TE Connectivity / AMP
$154.4960
Details
445730-1
TE Connectivity / AMP
$28.1190
Details
445730-6
TE Connectivity
$570.3690
Details
5-228618-2
te connectivity / amp
$174.3520
Details
445730-7
te connectivity / amp
$252.7478
Details

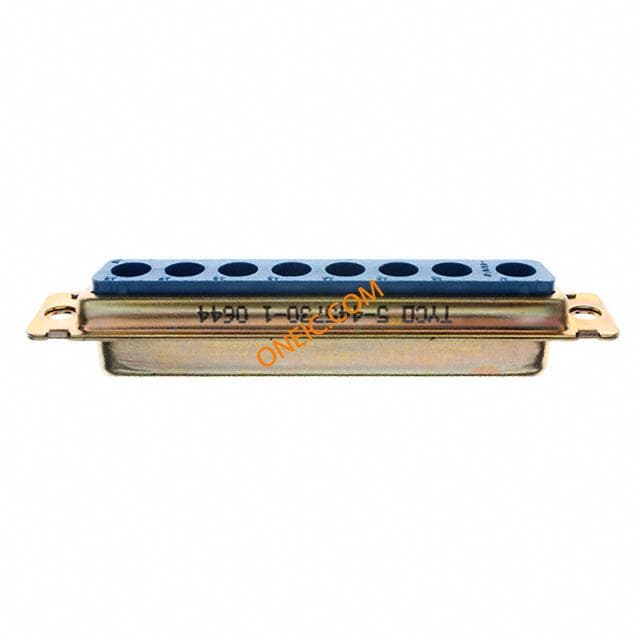

5-445730-1
