440146-3
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 1.25mm Crimp ST Bag High Performance Interconnects (HPI) CONN RCPT 3POS SGL 1.25MM NATRL Headers & Wire Housings 3 POS RCPT SCKT WHT 1.25mm Conn Housing RCP 3 POS 1.25mm Crimp ST Bag Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleAccepts Contact Gender = ReceptacleHousing Color = WhiteSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 1.25mm WTB Socket,Housing,3p |
| Category |
Business
| Other Names | A98723 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 100 VAC | Resistance - Input | 100 |
| Connector Impedance | 压接 | Current Rating (Max) | 3/Contact A |
| Voltage - Supply (Min) | 250VAC | Voltage - Protection Rating (VPR) | 250 VAC |
Mechanical
| Color | Natural | Depth | 3.95 mm |
| Pitch | 1.25 mm | Width | .156 in, 3.95 mm |
| Height | 3.15 mm | Length | 5.5 mm [ .217 in ] |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 自然 | Wire Gauge | 24-30 AWG |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Receptacle | Mounting Style | Wire |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Housing Material | Thermoplastic | Length - Overall | 5.5 mm |
| Package Quantity | 2000 | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | Compatible Shell Size | 1734260-x、1734261-x、1734598-x、1734829-x |
| Mounting Hole Diameter | 带有 | Center Contact Material | 1.25 [0.049] |
| Contact Layout, Typical | 同轴 | Static Discharge Shielding | 不带 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | HPI |
| Sealable | 否 | Product Type | Receptacle |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -20C to 105C |
Similar Parts
1734260-3
te connectivity / amp
Conn High Performance Interconnect HDR 3 POS 1.25mm Solder ST SMD T/R High Performance Interconnects (HPI) CONN HEADER 3POS VERT SMD TIN Headers & Wire Housings 3 POS HDR VT SMT Conn High Performance Interconnect HDR 3 POS 1.25mm Solder ST SMD T/R Product Highlights:1.25 mm CenterlineConnectorConnector Type = Header - Pin3 PositionsHousing Color = NaturalSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 1.25 WTB HDR SMT, 3 POS

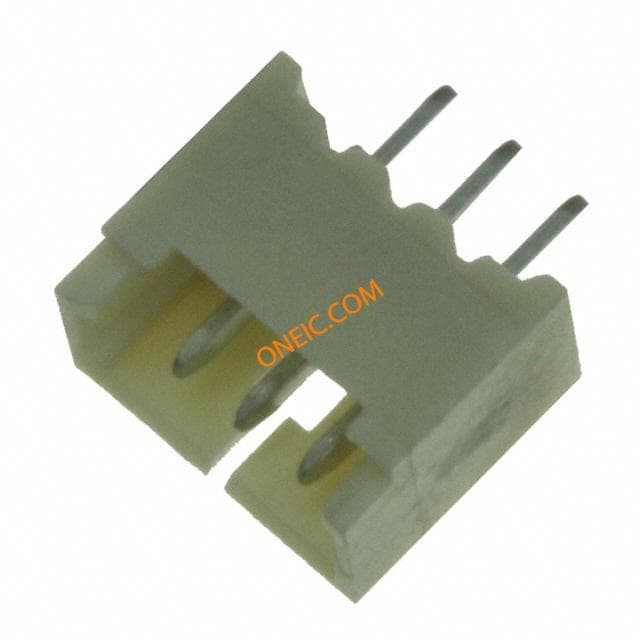

1734598-3
