440129-4
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount Bag High Performance Interconnects (HPI) CONN RCPT HOUSING 4POS 2.0MM Headers & Wire Housings 4 POS RECPT 2.0mm Conn Housing RCP 4 POS 2mm Crimp ST Cable Mount Bag Product Highlights:2.00 mm CenterlineReceptacleNumber of Positions = 4Housing Color = NaturalNumber of Rows = SingleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HSG,4pos |
| Category |
Business
| Tradename | Common Termination | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 VAC | Resistance - Input | 1000 |
| Connector Impedance | 压接 | Current Rating (Max) | 3 |
| Voltage - Protection Rating (VPR) | 1000 VAC | ||
Mechanical
| Color | Natural | Pitch | 2 mm |
| Width | .272 in, 6.9 mm | Height | 4.5 mm [ .177 in ] |
| Length | 9.8 mm [ .386 in ] | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 自然 |
| Wire Gauge | 30 – 24 | Contact Type | Female Socket |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Mounting Style | Wire |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Locking Feature | 带有 | Housing Material | Nylon 66 |
| Package Quantity | 1000 | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Insulation Diameter | .9 – 1.5 mm [ .0354 – .059 in ] | Number of Positions | 4 |
| Compatible Shell Size | 440054-x- 440205-x- 1775470-x- 440055-x- 1734827-x- 1775469-x | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.00 [0.079] | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMP CT |
| Sealable | 否 | Product Type | Receptacle |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -25 – 85 °C [ -13 – 185 °F ] |
Documents & Media
Similar Parts

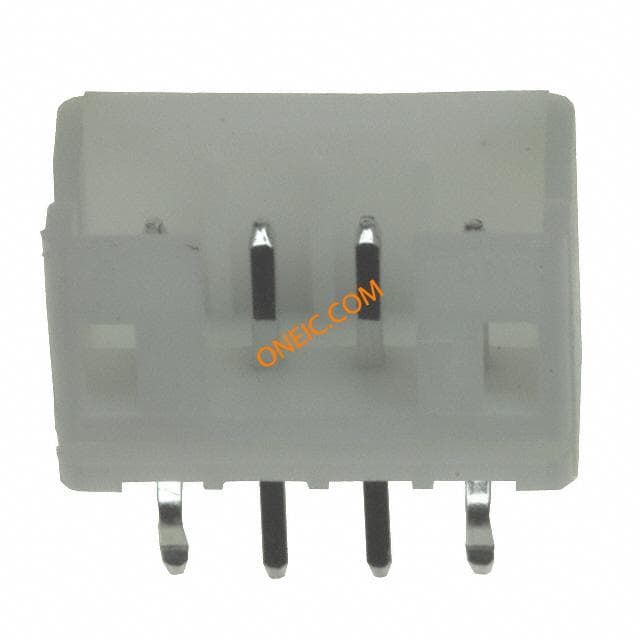

440054-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Bag High Performance Interconnects (HPI) CONN HEADER 4POS 2MM VERT T/H TE Connectivity HPI Series 2mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 4 POS HDR VERT 2.0mm High Performance Interconnects (HPI) Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 4Housing Color = NaturalVertical Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal HPIVerticalPostHeader,4way TE Connectivity HPI 系列 2mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 2.0mm,HDR,4pos,Vertical

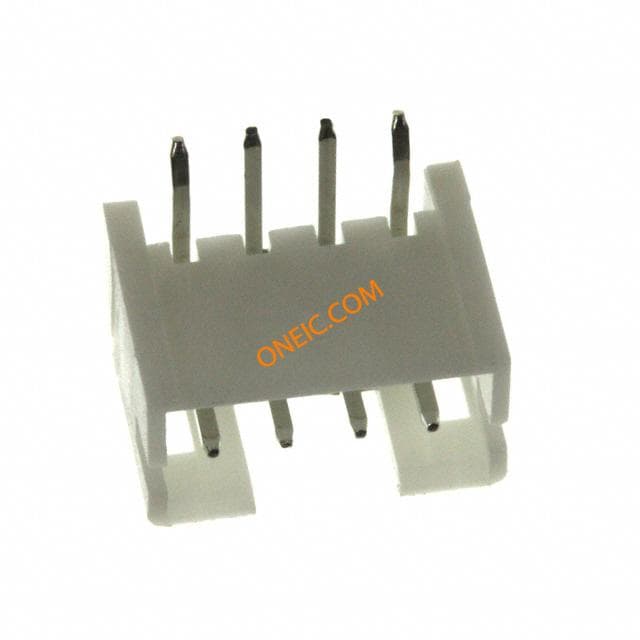

440055-4
te connectivity / amp
Conn High Performance Interconnect HDR 4 POS 2mm Solder RA Thru-Hole High Performance Interconnects (HPI) CONN HEADER 4POS R/A 2MM T/H Headers & Wire Housings 4 POS HDR R/A 2.0mm High Performance Interconnects (HPI) Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 4Housing Color = NaturalRight Angle Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,4pos,R/A
1735801-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG TIN Headers & Wire Housings 2mm CRIMP SOCKET 24-30 AWG Contact SKT Crimp ST Cable Mount Reel Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal Contact,Socket,250VAC/250VDC;30-24AWG CONN SOCKET 24-30AWG 2.0mm,Crimp,Contact
1734827-4
te connectivity / amp
Conn High Performance Interconnect HDR 4 POS 2mm Solder RA SMD Reel Headers & Wire Housings 4 POS HDR R/A SMT 2.0mm CONN HEADER 4POS 2MM R/A SMD Headers & Wire Housings 4 POS HDR R/A SMT 2.0 WTB HDR .5 SQ RA SMT 4P 2.0 WTB HDR .5 SQ RA SMT 4P Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal
1775470-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Reel Miscellaneous Wire to Board Products CONN HEADER 4POS 2MM VERT SMD Headers & Wire Housings 4 POS HDR VERT SMT 2.0mm HPI CONN., 2.0mm, V/T, SMT, 4P, 80u" HPI CONN., 2.0mm, V/T, SMT, 4P, 80u" Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal
2-440054-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Bag High Performance Interconnects (HPI) CONN HEADER 4POS VERT T/H BLUE Headers & Wire Housings HPI 2.0mm HDR 4P VERTICAL BLU HPI 2.0mm,HDR,4posVertical,Blu

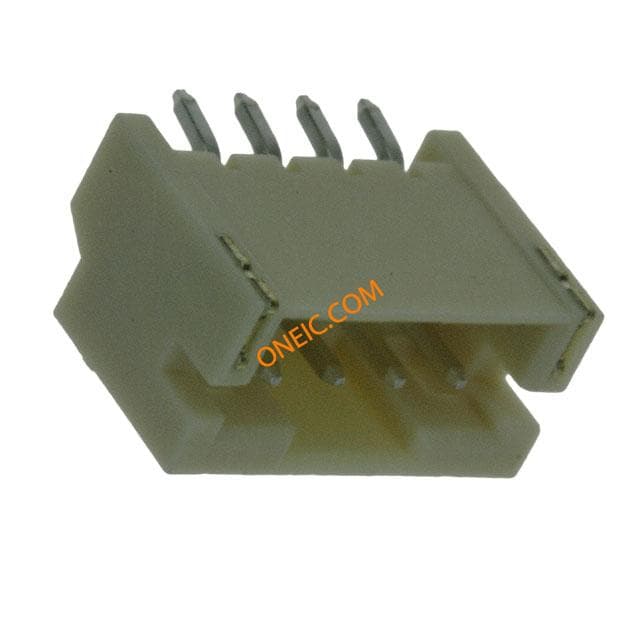

1775469-4
