440129-3
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Bag High Performance Interconnects (HPI) CONN RCPT HOUSING 3POS 2.0MM Housing 3 way socket 2.0mm HPI Headers & Wire Housings 3 POS RECPT 2.0mm Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Bag Product Highlights:2.00 mm CenterlineReceptacleNumber of Positions = 3Housing Color = NaturalNumber of Rows = SingleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal Housing3waysocket2.0mmHPIÂ Housing3waysocket2.0mmHPI TE Connectivity HPI 系列 2mm 节距 3 路 直 母 电缆安装 压接连接器外壳 2.0mm,HSG,3pos |
| Category |
Business
| Tradename | Common Termination | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V ac | Voltage - Supply | 250 VAC |
| Resistance - Input | 1000 | Connector Impedance | 压接 |
| Current Rating (Max) | 3A | Voltage - Protection Rating (VPR) | 1000 VAC |
Mechanical
| Color | Natural | Depth | 6.9mm |
| Pitch | 2 mm | Width | 4.5mm |
| Height | 4.5 mm [ .177 in ] | Length | 6.7mm |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 自然 | Wire Gauge | 30 – 24 |
| Orientation | 直 | Termination | Solder |
| Contact Type | Female Socket | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Mounting Style | Wire | Number of Rows | 1 |
| Insert Material | 铜合金 | Locking Feature | 带有 |
| Contact Material | Copper Alloy | Housing Material | Nylon 66 |
| Package Quantity | 1000 | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Insulation Diameter | .9 – 1.5 mm [ .0354 – .059 in ] | Number of Positions | 3 |
| Compatible Shell Size | 440054-x- 440205-x- 1775470-x- 440055-x- 1734827-x- 1775469-x | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.00 [0.079] | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMP HPI |
| Sealable | 否 | Product Type | Receptacle |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -25 – 85 °C [ -13 – 185 °F ] |
Similar Parts

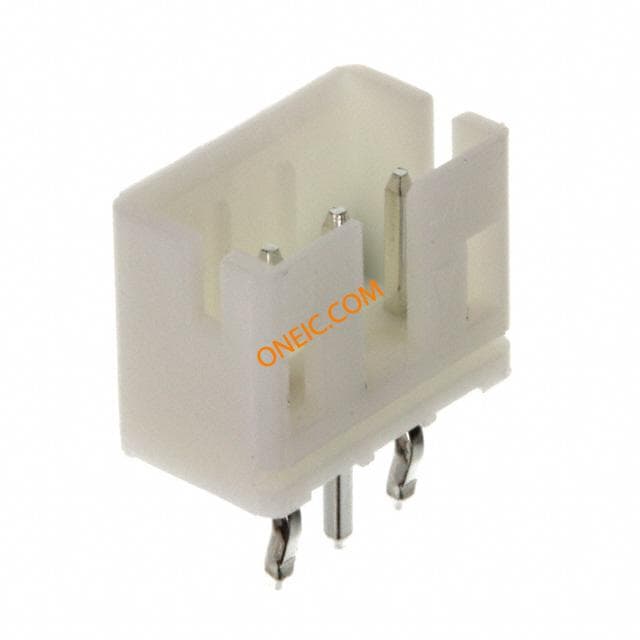

440054-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Bag High Performance Interconnects (HPI) CONN HEADER 3POS 2MM VERT T/H Headers & Wire Housings 3 POS HDR VERT 2.0mm 440054-3 Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Bag Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 3Housing Color = NaturalVertical Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,3pos,Vertical
1734827-3
te connectivity / amp
Conn High Performance Interconnect HDR 3 POS 2mm Solder RA SMD Reel Headers & Wire Housings 3 POS HDR R/A SMT 2.0mm CONN HEADER 3POS 2MM R/A SMD Headers & Wire Housings 3 POS HDR R/A SMT 2.0 WTB HDR .5 SQ RA SMT 3P 2.0 WTB HDR .5 SQ RA SMT 3P Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal

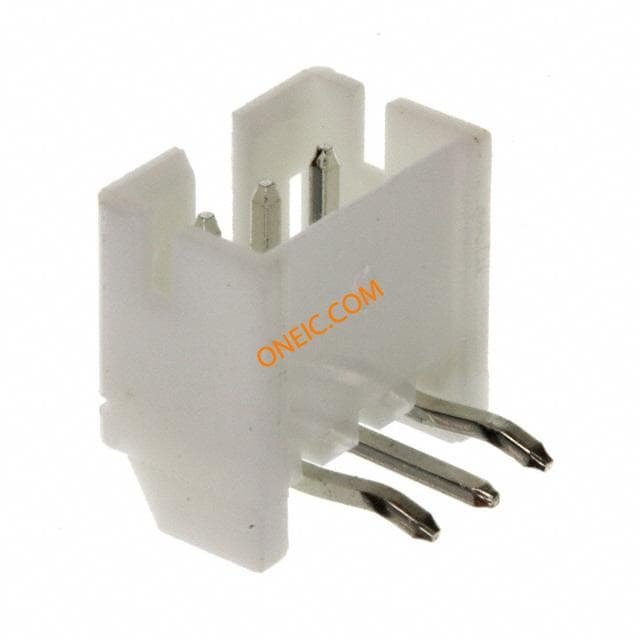

440055-3
te connectivity / amp
Conn High Performance Interconnect HDR 3 POS 2mm Solder RA Thru-Hole High Performance Interconnects (HPI) CONN HEADER 3POS R/A 2MM T/H Headers & Wire Housings 3 POS HDR R/A 2.0mm Conn High Performance Interconnect HDR 3 POS 2mm Solder RA Thru-Hole Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,3pos,R/A
1735801-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG TIN Headers & Wire Housings 2mm CRIMP SOCKET 24-30 AWG Contact SKT Crimp ST Cable Mount Reel Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal Contact,Socket,250VAC/250VDC;30-24AWG CONN SOCKET 24-30AWG 2.0mm,Crimp,Contact
2-440055-3
te connectivity / amp
Conn High Performance Interconnect HDR 3 POS 2mm Solder RA Thru-Hole High Performance Interconnects (HPI) CONN HEADER 3POS R/A TIN T/H BLU Headers & Wire Housings HPI 2.0mm HDR 3P R/A Blu HPI 2.0mm,HDR,3pos R/A,Blu
1775470-3
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2mm Solder ST SMD Reel Miscellaneous Wire to Board Products CONN HEADER 3POS 2MM VERT SMD Headers & Wire Housings 3 POS HDR VERT SMT 2.0mm HPI CONN., 2.0mm, V/T, SMT, 3P, 80u"

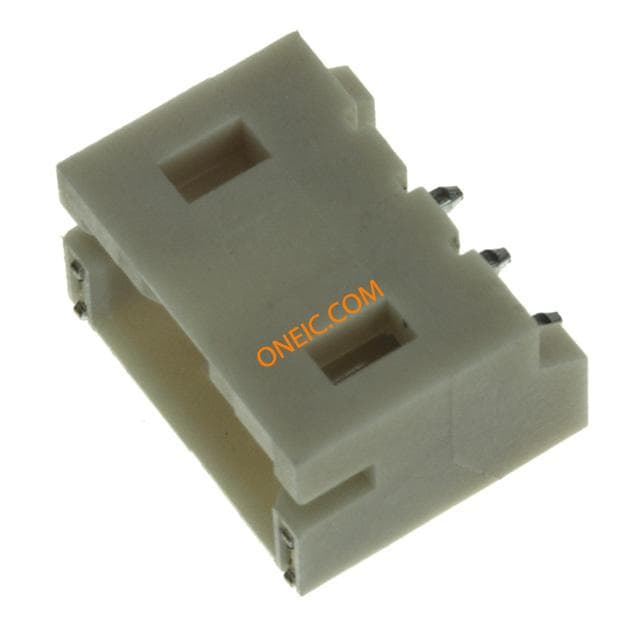

1775469-3
