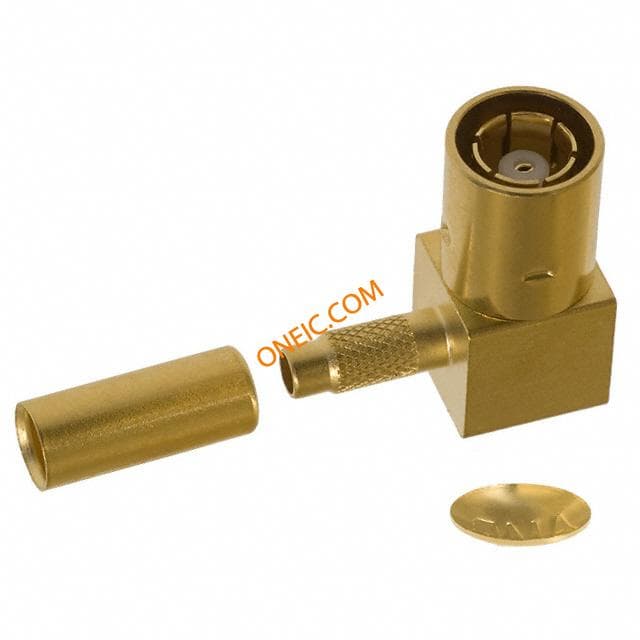

414026-3
| Manufacturer | |
| Description | Conn SMB F 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold SMB RF Connectors CONN SMB JACK R/A 50 OHM PCB SMB r/a PCB mount Jack 50ohm RF Connectors / Coaxial Connectors JACK R.A. NICKEL Conn SMB F 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorJackStandardTerminate To Printed Circuit BoardCoupler Style = Quick Connect/DisconnectSearch Keywords:RF, MIL-C-39012, BS9210 F0022, subminiature, JACK, SMB R/A, GOLD, PCB Connector;SMB;50Ohms;RightAngle;Nickel;Zinc;Teflon;Gold(Center);PCB TE Connectivity 直角 50Ω 通孔安装 SMB 连接器, 插座, 焊接端接 JACK ASSY,SMB,RT ANG |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PCB Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Frequency - Max | 4GHz | Connector Impedance | 50 |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Size | Standard | Weight | 0.005 |
| Plating | Nickel | Packaging | Bulk |
| Cable Type | :- | Body Finish | Nickel |
| Orientation | Right Angle | Termination | Solder |
| Coupler Type | Quick Connect/Disconnect | Body Material | Brass |
| Mounting Type | Through Hole | Angle of Throw | RightAngle |
| Connector Type | Without | Contact Finish | Gold |
| Fastening Type | Snap-On | Housing Finish | Nickel |
| Mounting Style | Thru Hole | Plating - Body | Nickel |
| Connector Style | SMB | Profile (W x H) | Standard |
| Contact Material | Brass | Housing Material | Brass |
| Panel Mount Type | Without | Primary Material | SMB |
| Termination Style | Solder | Mating Orientation | QuickConnect/Disconnect |
| Number of Contacts | With | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | TEFLON |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Right Angle | 1st Connector Mounting Type | :PCB |
Product Info
| Type | SMB | Grade | Mil-Type |
| Gender | F | Series | Standard |
| Mat Type | MIL-C-39012 | Polarity | Standard |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | PCB | RF Family/Standard | 414026 |
| Application Specifics | TrueMIL | ||
Environmental
| Ingress Protection | Without | Operating Temperature | - 65 C to + 165 C |
| Environment Protection | Without | ||
