4-87977-8
| Manufacturer | |
| Description | Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings 50 MODIV HSG COMP DR .100 POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 MODIV HSG COMP DR .100 POL |
| Category |
Business
| Tradename | AMPMODU | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Detent Latching |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 250VAC |
| Voltage - Protection Rating (VPR) | 750 V | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 6.1 mm [ .24 in ] |
| Length | 63.5 mm [ 2.5 in ] | Lock Type | 带有 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 20-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Insert Material | 铍铜 | Housing Material | Nylon |
| Length - Overall | 63.5 mm | Package Quantity | 1 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 50 | Contact Termination | Crimp |
| Number of Positions | 50 | Compatible Shell Size | 公端 |
| Mounting Hole Diameter | 带有 | Static Discharge Shielding | 不带 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Product Type | Receptacles / Sockets - Housings | Other Specifications | 否 |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts

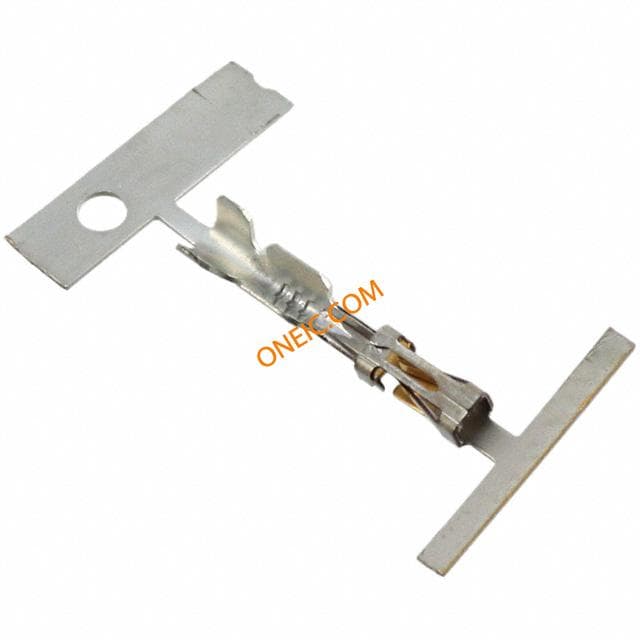

6-87756-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-22AWG CRIMP GOLD AMP Modu IV contact,rcp,0.12-0.40mm2 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ContactReceptacle;TerminatetoWire;Diameter=1.55mm;Range0.12-0.40mm TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP PLTD 15 DPLX LF

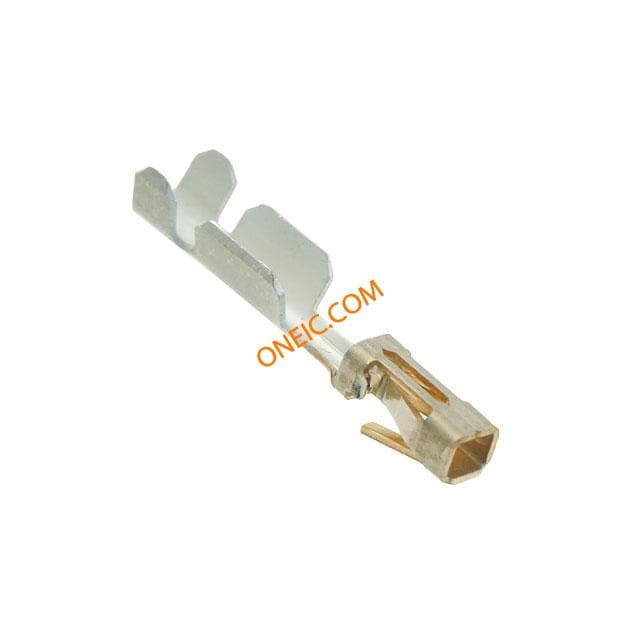

2-87195-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG CRIMP GOLD Headers & Wire Housings INTERMEDIATE 24-20 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP MOD IV RECP LP, 30 Au, TIN, RoHS
2-87195-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings SKT 24-20 PHCU/AU .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 30AU CRIMP 2-87195-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD IV RECP PLTD 30 DPLX
2-87195-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings SKT 24-20 CU/AU .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 15AU CRIMP Contact female crimp 24-20AWG AmpModu Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP Contactfemalecrimp24-20AWGAmpModu TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP PLTE 15 DPLX

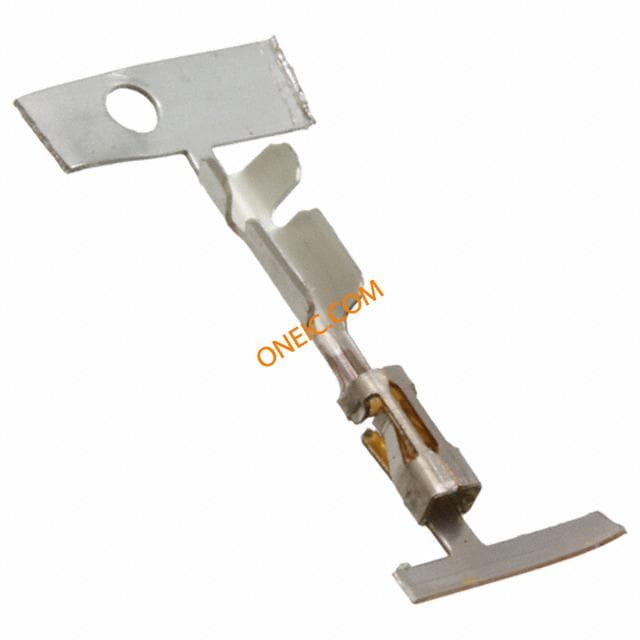

2-87195-5
