4-641216-5
| Manufacturer | |
| Description | Conn Wire to Board HDR 15 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 15POS .100 30AU Headers & Wire Housings 15P MTA100 HDR ASSY FL/RA LF Conn Wire to Board HDR 15 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 Connectors15 PositionsMating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA100 HDR ASSY FL/RA LF |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Switch Function | Friction Lock |
| Voltage - Supply | 250 | Voltage - Rated AC | 250 |
| Connector Impedance | 焊接 | Current Rating (Max) | 5 |
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Height | 7.87 mm [ .31 in ] | Length | 38.1 mm [ 1.5 in ] |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Lead Style | 正方形 |
| Termination | Solder | Contact Type | Male Pin |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | White | Mounting Type | Right Angle |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Contact Timing | Without | Fastening Type | Friction Lock |
| Mounting Style | 不带 | Number of Rows | 1 |
| Shell Material | 摩擦锁 | Connector Usage | Header |
| Insert Material | 铜合金 | Locking Feature | Friction Lock |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Without | Number of Contacts | 15 |
| Termination Finish | 不带 | Number of Positions | 15 |
| Actuator Orientation | 前部 | Backshell Interrupts | Without |
| Bushing, Grommet Type | 不带 | Compatible Shell Size | MTA .100 连接器组件 |
| Contact Length - Post | 3.56 mm [ .14 in ] | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 同轴 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Material - Post | Copper Alloy |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 30µin (0.76µm) |
| Small Diameter Recovered | No | Static Discharge Shielding | 不带 |
| Jacket (Insulation) Thickness | 1.27 µm, 50 µin | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Printed Circuit Board | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts

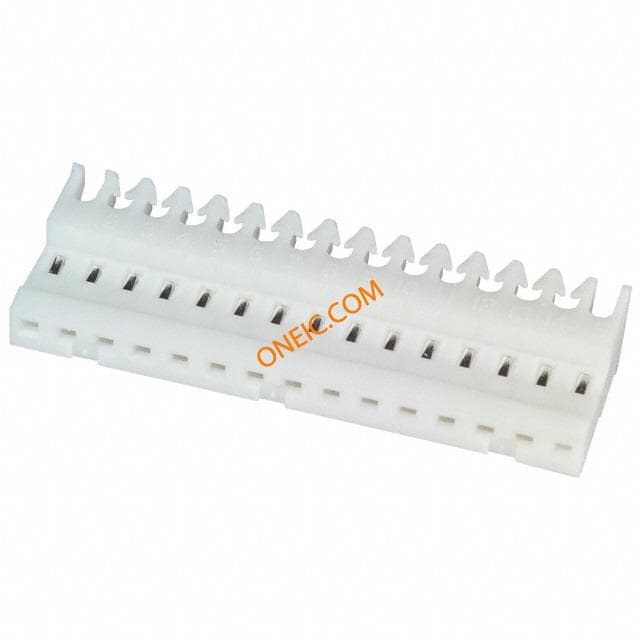

1-640440-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 22AWG MTA100 Headers & Wire Housings 22AWG 15 POSITION 1000 Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA100 CONN ASSY 22AWG RED
1-640622-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS MTA-100 26AWG
1-641190-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 15POS 22AWG MTA-100 Headers & Wire Housings 15P MTA100 CONN ASSY RED 22AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector Assembly15 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-640442-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 26AWG MTA100 Headers & Wire Housings REC 15P C/E 26AWG W/O TABS Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector15 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA100 CONN ASSY BLU

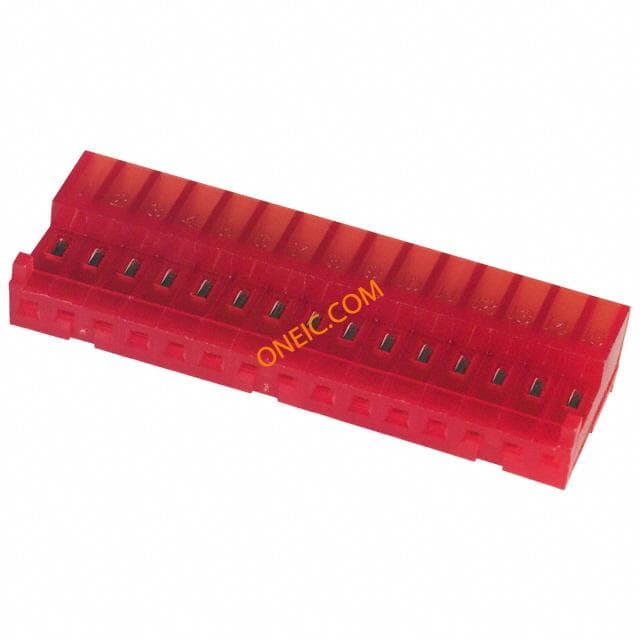

4-643813-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 22AWG MTA100 Headers & Wire Housings REC 15P C/E 22AWG W/ TABS Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 Connectors15 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 15POS, 2.54MM MTA-100CONNECTORTIN,15PMTA100CONNASSYPOLRIB 15P MTA100 CONN ASSY POL RIB
1-644565-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RECEPT 15POS 28AWG MTA100

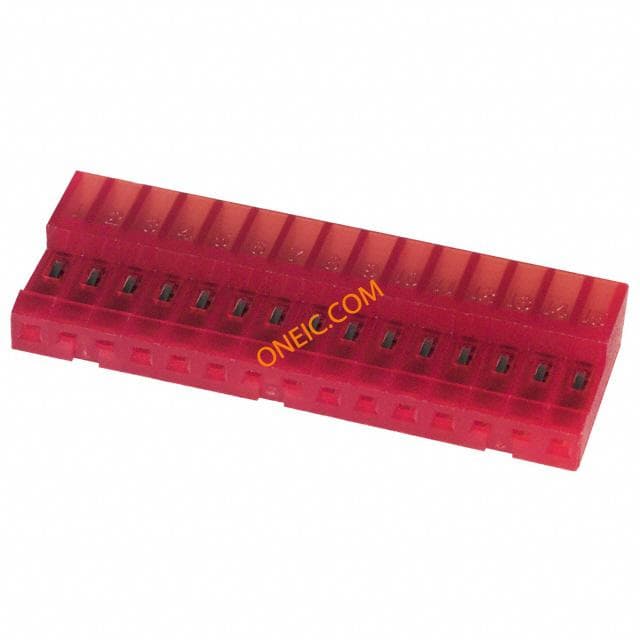

4-640440-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 22AWG MTA100 Headers & Wire Housings REC 15P C/E 22AWG W/O TABS Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 15POS, 2.54MM MTA-100CONNECTORTIN,15PMTA100CONNASSY22AWGRED TE Connectivity MTA-100 系列 15路 2.54mm节距 母 IDC 连接器 , 电缆安装 15P MTA100 CONN ASSY 22AWG RED
1-1375820-5
te connectivity / amp
Conn Housing RCP 15 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HOUSING 15POS .100 Headers & Wire Housings CST-100 II HOUSING 1 Conn Housing RCP 15 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 15Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 15 POS
4-640621-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 24AWG MTA100 Headers & Wire Housings 15P MTA100 CONN ASSY F/T NATL Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA100 CONN ASSY F/T NATL
1-640441-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 24AWG MTA100 Headers & Wire Housings MTA 100 CONN 24-15 Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:15 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA100 CONN ASSY WHT

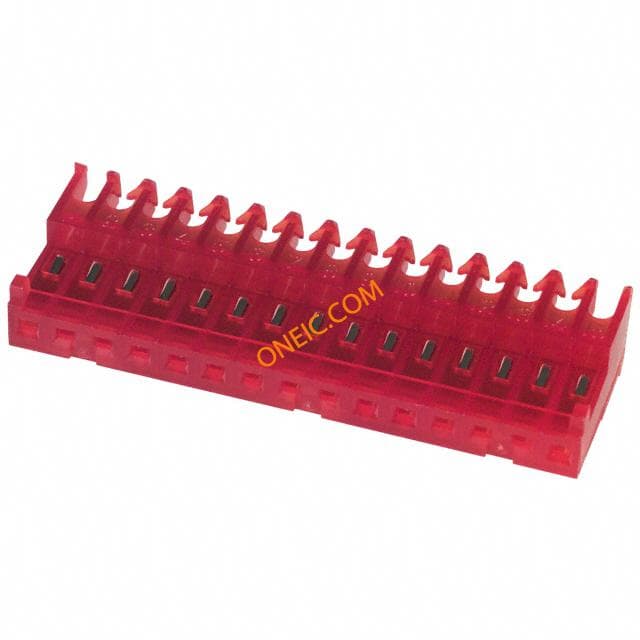

1-644540-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RECEPT 15POS 22AWG MTA100
1-644563-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 24AWG MTA100 Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA100 CONN ASSY F/T 24AWG

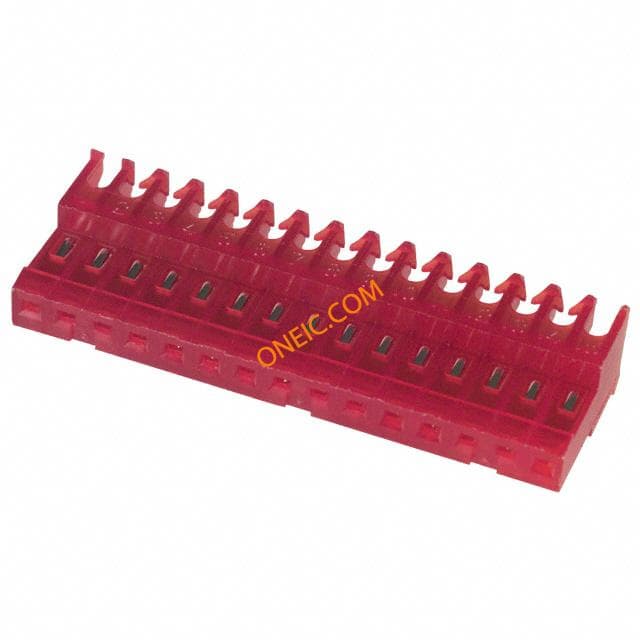

4-640620-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 22AWG MTA100 Headers & Wire Housings 15P MTA100 CONN ASSY F/T RED 15P MTA100 CONN ASSY F/T RED 15P MTA100 CONN ASSY F/T RED Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-640441-5
te connectivity / amp
Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 24AWG MTA100 Receptacle,2.54mm IDT,r/a,3way Headers & Wire Housings REC 15P C/E 24AWG W/O TABS Conn IDC Connector F 15 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 15WAY RCP,2.54MMIDT,R/A,3W TE Connectivity MTA-100 系列 3路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 15P MTA100 CONN ASSY WHT

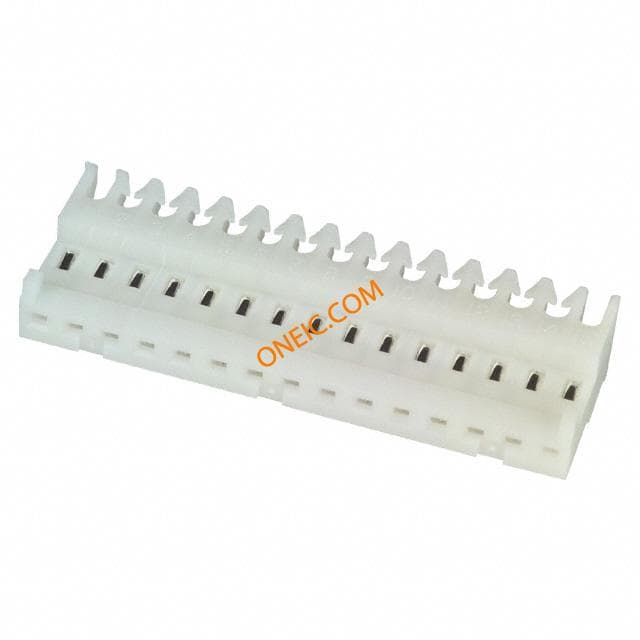

4-644563-5
