点击放大查看
4-641199-0
| Manufacturer | |
| Description | Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers 10P MTA100 CONN ASSY WHT LF Headers & Wire Housings 10P MTA100 CONN ASSY WHT LF 10P MTA100 CONN ASSY WHT LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 500 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | White | Pitch | 2.54 mm |
| Height | 7.75 mm [ .305 in ] | Length | 25.4 mm [ 1 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Exit | 90° | Cable Type | 分离式导线, 绞线 |
| Wire Gauge | 24 AWG | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Feed Thru | Contact Finish | Gold Over Nickel |
| Contact Timing | Without | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Shell Material | 标准 | Connector Usage | Receptacle |
| Insert Material | 铜合金 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 10 | Termination Finish | 带有 |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 10 |
| Bushing, Grommet Type | 不带 | Compatible Shell Size | MTA .100 头和 MTA .100 IDC 柱形连接器 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 15µin (0.38µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.2² [24] |
| Static Discharge Shielding | 带有 | Jacket (Insulation) Thickness | 1.27 – 1.77 µm, 50 – 69.685 µin |
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-100 | Features | Feed Through |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
1-640456-0
te connectivity / amp
Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 10POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 10P Straight Post tin Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,FrictionLock;MTA-100;10;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header 10P, 1-640456-0, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 10P MTA100 HDR ASSY F/L SQ STR
1-640455-0
te connectivity / amp
Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 10POS .100 TIN Headers & Wire Housings POLARIZED HEADER 10P Right Angle Post tin Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 HDR ASSY SQ R/A POL
1-641215-0
te connectivity / amp
Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 10POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 10P Straight Post gold Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 HDR ASSY FL/ST 30AU
643879-8
te connectivity / amp
Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 10POS STR .100 TIN Headers & Wire Housings 10P MTA100 HDR ASSY F/L OMIT#2 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Header10 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 HDR ASSY F/L OMIT#2

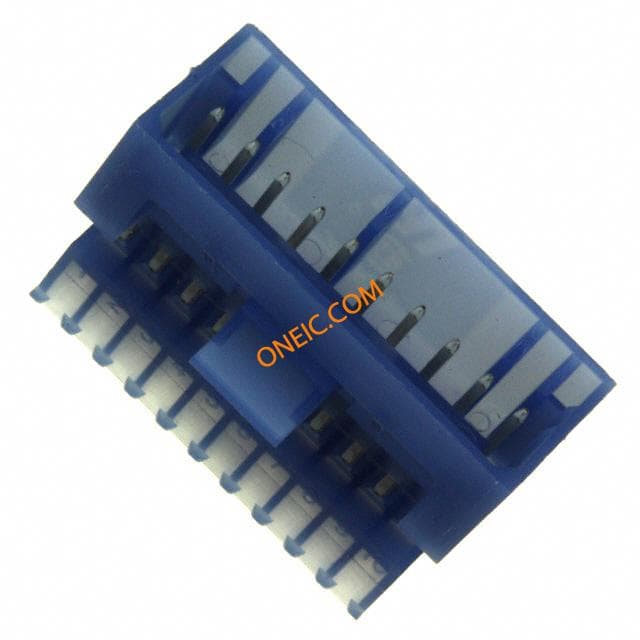

4-647002-0
