4-640600-1
| Manufacturer | |
| Description | Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS 20AWG MTA156 Headers & Wire Housings 11P MTA156 CONN ASSY 20AWG LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 CONN ASSY 20AWG LF |
| Category |
Business
| Other Names | A31664 | Standard Pack | 250 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Classification | 已认证 |
| UL Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 600 VAC | Switch Function | Locking Ramp |
| Voltage - Supply | 600 | Connector Impedance | 刺破式压接 (IDC) |
| Current Rating (Max) | 7 A | ||
Mechanical
| Color | Yellow | Pitch | 3.96 mm |
| Height | 9.78 mm [ .385 in ] | Length | 43.59 mm [ 1.716 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Body Color | 黄色 |
| Cable Type | 分离式导线 | Wire Gauge | 20 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Contact Timing | Without |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Pins | 11 | Number of Rows | 1 |
| Plating - Body | Nickel | Shell Material | 标准外形 |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Package Quantity | 250 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 11 | Insulation Diameter | 2.41 mm [ .095 in ] |
| Number of Positions | 11 | Shell Size - Insert | 母端, 母端 |
| Compatible Shell Size | MTA .156 公端 | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 直插式 |
| Contact Finish Thickness | 80µin (2.03µm) | Static Discharge Shielding | 带有 |
| Jacket (Insulation) Thickness | 30 µm [ .762 µin ] | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-156 | Features | Feed Through |
| Product Type | Connector Assemblies | Installation Type | Feed Through |
| Output Configuration | 90° | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
1-640385-1
te connectivity / amp
Conn Unshrouded Header HDR 11 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 11POS .156 TIN Headers & Wire Housings 11P HDR ASSY SQ R/A 11P MTA156 HDR ASSY SQ R/A
1-640445-1
te connectivity / amp
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Headers & Wire Housings MTA 156 HDR ASSY-11P MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 11POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 11 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156HEADER-TIN,11PMTA156HDRASSYFL/STRSN TE Connectivity MTA-156 系列 3.96mm节距 11路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 11P MTA156 HDR ASSY FL/STR SN
4-641208-1
te connectivity / amp
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 11POS .156 30 GOLD Headers & Wire Housings 11P MTA156 HDR ASSY FL ST LF Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Product Highlights:11 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 HDR ASSY FL ST LF
1-640383-1
te connectivity / amp
Conn Unshrouded Header HDR 11 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 11POS .156 TIN Headers & Wire Housings 11P HDR ASSY STR SQ SN Conn Unshrouded Header HDR 11 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 HDR ASSY STR SQ SN
1-643071-1
te connectivity / amp
Connector Accessories 11 POS Strain Relief Feed Thru Cover Nylon White MTA, CST and SL Accessories CONN STRAIN RELIEF COVER 11POS Headers & Wire Housings 11P FD-THRU COVER Connector Accessories 11 POS Strain Relief Feed Thru Cover Nylon White Product Highlights:AccessoryAccessory Type = Strain Relief CoversWithout Panel AttachmentCover Style = Feed Thru11 PositionsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP 11P MTA156 FD-THRU COVER
1-640643-1
te connectivity / amp
Connector Accessories 11 POS Feed Thru Dust Cover Polyester White MTA, CST and SL Accessories CONN DUST COVER 11POS FEED THRU Headers & Wire Housings 11P MTA156 COVER F/T Connector Accessories 11 POS Feed Thru Dust Cover Polyester White Product Highlights:Dust CoverWithout Panel AttachmentCover Style = Feed ThruNumber of Positions = 11Used For MTA-156 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP 11P MTA156 COVER F/T
1-641208-1
te connectivity / amp
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 11POS .156 30AU Headers & Wire Housings 11P MTA156 HDR ASSY FL ST 30AU Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 HDR ASSY FL ST 30AU
1-640389-1
te connectivity / amp
Conn Wire to Board HDR 11 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 11POS .156 TIN Headers & Wire Housings RA SQ POST 11P HDR Conn Wire to Board HDR 11 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 11P MTA156 HDR ASSY SQ R/A F/L
1-640388-1
te connectivity / amp
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 11POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 11 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings ROUND HDR 11P Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 11Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,MTA156,straight,2.54mm,11way TE Connectivity MTA-156 系列 3.96mm节距 11路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 11P MTA156 HDR ASSY RN STR F/L
1-641119-1
te connectivity / amp
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 11POS STR GOLD .156 Headers & Wire Housings 11P MTA156 HDR ASSY FL/ST 15AU 11P MTA156 HDR ASSY FL/ST 15AU 11P MTA156 HDR ASSY FL/ST 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-644752-1
te connectivity / amp
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 11POS TIN Headers & Wire Housings 11P MTA156 HDR ASSY 11P MTA156 HDR ASSY SQ STR F/L 11P MTA156 HDR ASSY SQ STR F/L Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
59804-1
te connectivity / amp

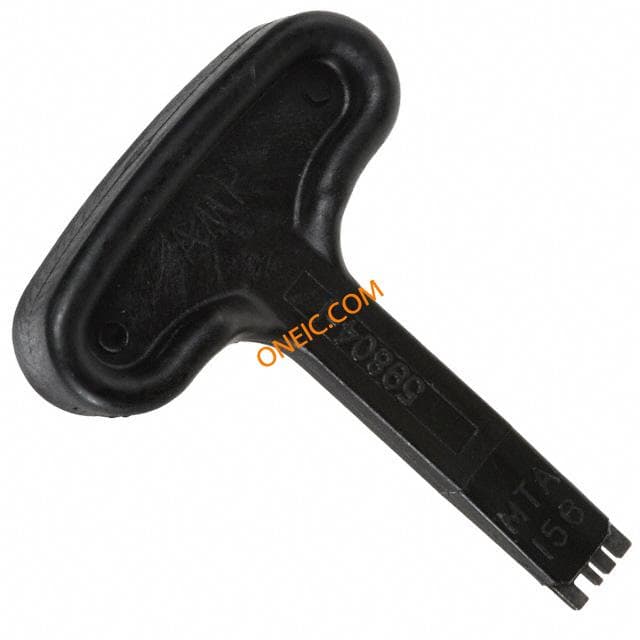

Insertion Tools For Mass Termination Assembly Connectors Hand Tools 156 T HANDL MAINT TL T-HANDLE TOOL MTA-156 AMP;MAINT T-HANDLE TOOL;MTA-156 TOOL, T HANDLE, 0.156" CrimpT-HandleTool;MTA-156 Tool: for crimping; Series: MTA-156; 65mm Mounting tool, 59804-1, TE Connectivity TE Connectivity
