36151
| Manufacturer | |
| Description | Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Terminals 22-16 AWG Ring and Spade Tongue Terminals CONN RING 16-22 AWG #6 PIDG Ring terminal, PIDG,red, AWG 22-16, M3.5 Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 3MM, RED AMP;TERMINAL;RINGTONGUE;22-16AWG;RED;STUDSIZE6 Ring terminal; M3,5; Ø:3.68mm; 0.3÷1.42mm2; crimped; for cable PIDG 22-16 AWG Straight Closed Barrel Ring Tongue Terminal Ring terminal, 0.3...1.5 mm², 22...16 AWG, PIDG, 36151, TE Connectivity TE Connectivity PIDG 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M3.5 螺栓 PIDG R 22-16 COMM 22-18 MIL 6 |
| Category |
Business
| Product | Ring Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | No | ||
Electrical
| Drive Type | ring terminal | Voltage Rating | 300 VAC |
| Voltage - Supply | 300 | ||
Mechanical
| Color | Red | Shape | RING-041 |
| Finish | Tin | Length | 20.24 mm |
| Weight | 0.083 | Material | Copper |
| Packaging | Bulk | Thickness | 0.031" (0.79mm) |
| Cable Type | Regular Wire | Heavy Duty | No |
| Insulation | Insulated | Screw Size | 6 |
| Wire Gauge | 16-22 AWG | Termination | Crimp |
| Contact Shape | Ring Tongue | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3.5 mm | Terminal Type | Circular |
| Angle of Throw | Straight | Connector Type | :Ring Tongue |
| Contact Finish | Tin | Mounting Style | for cable |
| Connector Style | Straight | Width - Overall | 0.281" |
| Contact Material | Copper | Ferrule Material | insulated |
| Insulation Color | :Red | Length - Overall | 20.24 [0.797] |
| Package Quantity | Loose Piece | Primary Material | Ring |
| Diameter - Inside | 3.68mm | Insulation Height | Insulation Support |
| Color - Connectors | Red | Contact Tail Length | 0.79 [0.031] |
| Insulation Diameter | 2.03-3.18 [.080-.125] | Insulation Material | Nylon |
| Width - Outer Edges | 0.281" (7.14mm) | Material - Insulation | Polyamide (PA), Nylon |
| Mounting Hole Diameter | M3,5 | Supplier Device Package | PIDG |
| Wire Gauge or Range - AWG | 509 â 3,260 | Wire Gauge or Range - mm2 | 0.30-1.40² [22-16] |
| Contact Material - Plating | tinned | Diameter - Outside, Non-Expanded | :3.18mm |
Product Info
| Spg | 1 | Type | Ring Tongue Terminal |
| Gender | Female | Series | 361 |
| Features | Serrated Termination | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Number of Units | 1 |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
217202-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED
47386
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT
59826-1
te connectivity / amp
TETRA-CRIMP DIE 22-18 Crimpers TETRA-CRIMP DIE 22-1 TOOL TETRA-CRIMP DIE 22-18AWG Application Tooling Lead Free Solder Processes
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
69151-1
te connectivity / amp
DAHT PIDG S EXP 22-16 Crimpers DAHT PIDG S EXP 22-16 TOOL HAND PIDG S EXP 16-22AWG DAHT Pidg S Exp 22-16 TE Connectivity CERTI-CRIMP 系列 PIDG Butt Splices 压接工具 , 适用于22 → 16 AWG 线规格
47386-5
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL PIDG 22-16 HAND TOOL PIDG 16-26AWG
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
314270-3
te connectivity / amp
Penumatic Crimoing Head Red Hand Tools 22-16 PIDG IS9586 PNEU HD PNEU HEAD 22-16AWG PIDG IS9586 Pneumatic crimping head, PIDG, 22-16 AWG Connector Accessories Terminal Head Red PNEUHD22-16PIDGIS9586
91964-2
te connectivity / amp
S.D.E.PREM.DIE ASSY 22-16 PIDG Punches & Dies S.D.E.PREM.DIE ASSY 22-16 PIDG
46282
TE Connectivity / AMP
Crimpers PNEU HD PIDG 69010 22-16 Hand Tools PNEU HD PIDG 69010 22-16 PNEU HEAD PIDG 69010 22-16AWG
47806-2
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Punches & Dies DIE PIDG 22-16 DIE PIDG 69365 46110 22-16AWG Crimping dies, 47806-2, TE Connectivity DIE PIDG 69365 46110 22-16
679305-1
te connectivity / amp
Connector Accessories Crimping Head Hand Tools PLATFORM & TETRA CRMP HD ASSY TOOL HEAD TETRA CRIMP ADPT ASSY
MC29568
Avnet, Inc.
TERMINAL, RING TONGUE, #6, CRIMP, RED
MC29549
Avnet, Inc.
TERMINAL, RING TONGUE, #6, CRIMP, RED
MC29574
Avnet, Inc.
TERMINAL, RING TONGUE, #6, CRIMP, RED
RVE1-3.2
Avnet, Inc.
CRIMP TERMINAL, RING, 3.2MM, RED

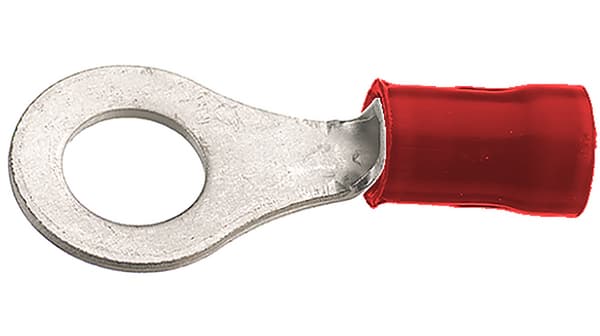

RVE1-3.2
