353908-7
| Manufacturer | |
| Description | Conn Housing RCP 7 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 7POS 1.5MM CRIMP Headers & Wire Housings RCPT 7 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 7 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 7Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CT REC HSG 7P CRIMP TYPE WHITE |
| Category |
Business
| Tradename | Common Termination | Other Names | A98658 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | CSA File Number | LR 7189-133 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 50 VAC, 50 VDC | Resistance - Input | 500 |
| Connector Impedance | 压接 | Current Rating (Max) | 3 |
Mechanical
| Color | White | Pitch | 1.5 mm |
| Shape | 矩形 | Width | .141 in, 3.6 mm |
| Height | 6 mm [ .236 in ] | Length | 12 mm [ .472 in ] |
| Packaging | Bulk | Body Color | 自然 |
| Wire Gauge | 24-28 AWG | Contact Type | Female Socket |
| 2nd Connector | Without | Mounting Type | Straight |
| Connector Type | Crimp | Mounting Style | Wire |
| Number of Rows | 1 | Housing Material | Nylon 66 |
| Length - Overall | 1.50 [0.059] | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 7 |
| Contact Termination | Crimp | Insulation Diameter | .85 – 1.05 mm [ .0334 – .041 in ] |
| Number of Positions | 7 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMP CT |
| Sealable | 否 | Product Type | Receptacle Housing |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -30 – 105 °C [ -22 – 221 °F ] |
Documents & Media
Similar Parts
353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE
292227-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 7POS R/A SMD TIN Headers & Wire Housings 7P SMT HDR R/A MINI Conn Shrouded Header HDR 7 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIP7 PositionWithout Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONNECTOR TYPE 1.5 MINI CT SGL H SMT W BOSS 7
292207-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 7POS VERT 1.5MM TIN Headers & Wire Housings 7P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 7 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:ConnectorWire-to-BoardApplies To Printed Circuit Board1.50 mm CenterlineHeaderSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, MINI CT SGL DIP V 7P NAT

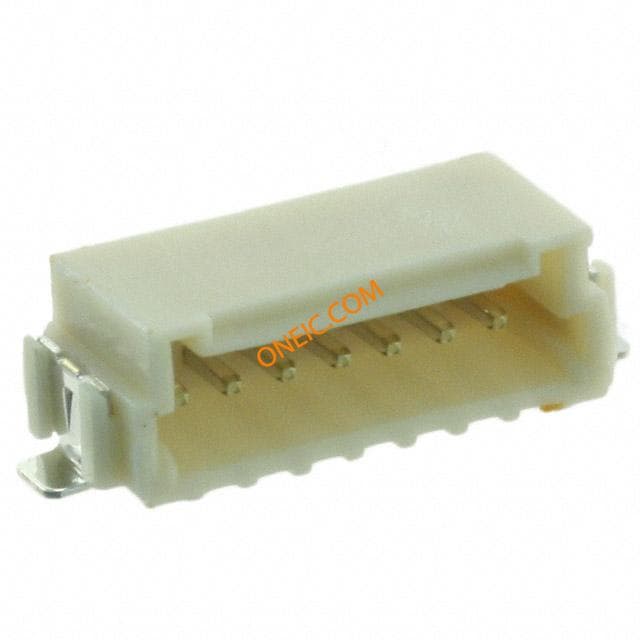

292228-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 7POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H 1.5 MINI CT SGL H SMT W/O BOSS 1.5 MINI CT SGL H SMT W/O BOSS Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors,

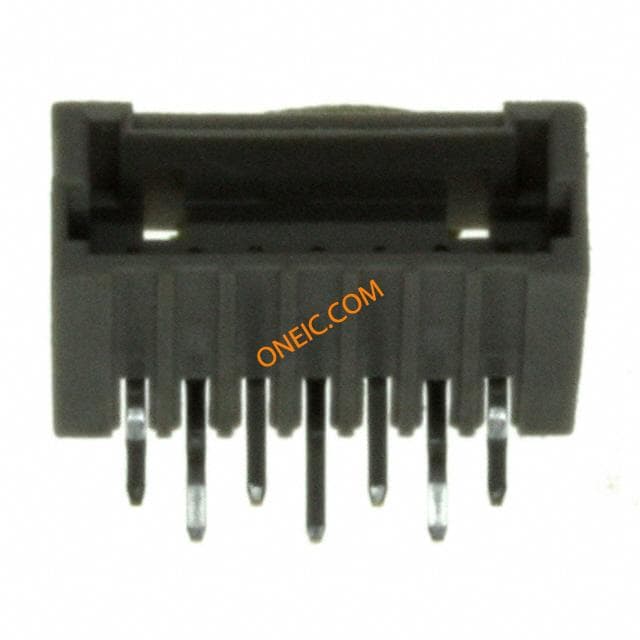

292206-7
