350986-4
| Manufacturer | |
| Description | Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN Power to the Board PCB SOCKET HDR 2P Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL HDR ASSY LNG/TL |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Voltage - Supply (Min) | 600VDC/600VAC |
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Width | 13.97 | Height | 14.73 mm |
| Length | 13.97 | Sealed | Not Sealed |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Female Socket | Mounting Type | Through Hole |
| Connector Type | Header | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Mounting Style | Through Hole |
| Number of Pins | 2 | Number of Rows | 1 |
| Package / Case | Receptacle | Height (Inches) | 7.62 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Package Quantity | 100 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | 插针 | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 2 | Number of Positions | 2 |
| Compatible Shell Size | 与插头护套插接（使用插针端子） | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 预镀锡 | Contact Layout, Typical | 直插式 |
| Termination Post Length | 3.18 mm [ .125 in ] | Contact Finish Thickness | 2.54 µm [ 100 µin ] |
| Static Discharge Shielding | 不带 | Jacket (Insulation) Thickness | 1.27 µm [ 50 µin ] |
Product Info
| Type | Power | Gender | SKT |
| Product Type | Headers | Number of Ports | 1 Port |
| Application Specifics | Power | Assembly Configuration | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
| Thermal Resistance of Package | 1.57 mm [ .062 in ] | ||
Documents & Media
Similar Parts
1-480698-5
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L GREEN Power to the Board 02P PLUG HSG GRN Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG GRN
1-480698-6
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L BLUE Power to the Board 02P PLUG HSG BLU Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG BLU
1-480698-9
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 2POS 94V-2 BLK Housing FH 2 way Pin/sckt UMNL Power to the Board PLUG HOUSE 2 POS BLACK UL94V-2 Conn Housing PL 2 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;PlugHsg;2Pos;UnivMATE-N-LOK;Black 02P UMNL PLUG HSG BLK
350848-2
te connectivity / amp
Conn Power SKT 2 POS 6.35mm ST Cable Mount 2 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-MATE-N-LOK Pin & Socket Connectors 2P PLUG TEST ASSY 94V0 Conn Power SKT 2 POS 6.35mm ST Cable Mount 2 Terminal 1 Port Loose Piece Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG TEST ASSY 94VO
1-480698-0
te connectivity / amp
Conn Housing PL 2 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS 94V-2 UNI-MATE Housing,plug,free hanging,2way Pin & Socket Connectors PLUG HOUSE 2 POS Conn Housing PL 2 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 2WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Plug;Nylon;Natural;19A Plug; wire-wire; male/female; 6.35mm; PIN:2; UL94V-2; Locking: lock Crimp housing Pitch6.35 mm Poles 2 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480698-0, TE Connectivity 02P UMNL PLUG HSG NATL

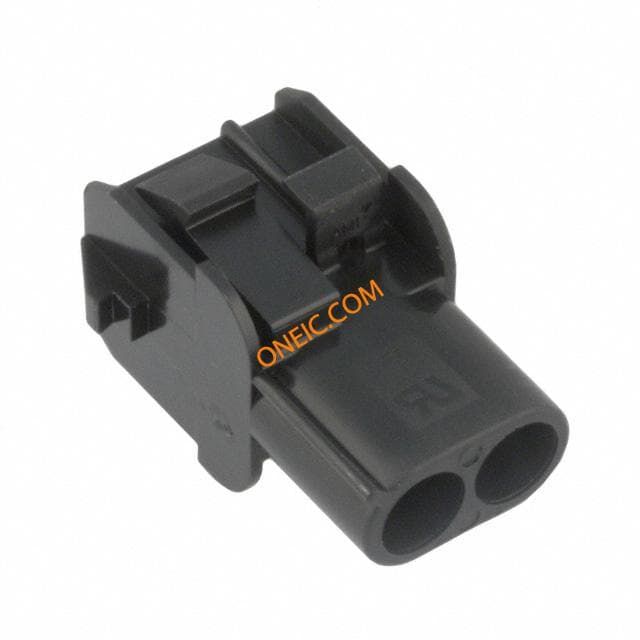

794815-1
