3-647066-3
| Manufacturer | |
| Description | Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 28AWG .100 GREEN |
| Category |
Business
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage - Rated AC | 250 | ||
Mechanical
| Color | Green | Pitch | 2.54 mm |
| Packaging | Tape & Reel (TR) | Shrouding | Yes |
| Wire Type | Discrete or Ribbon Cable | Wire Gauge | 28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | Green |
| Mounting Type | No | Connector Type | Closed End |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Locking Feature | Locking Ramp | Contact Material | Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Panel Mount Type | Without | Cable Termination | IDC |
| Mating Orientation | Without | Number of Contacts | 3 |
| Number of Positions | 3 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Finish Thickness | 80µin (2.03µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.08-0.09² [28] | ||
Product Info
| Type | IDC Connector | Gender | F |
| Features | Closed End | Manufacturer | Tyco Electronics |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Documents & Media
Similar Parts

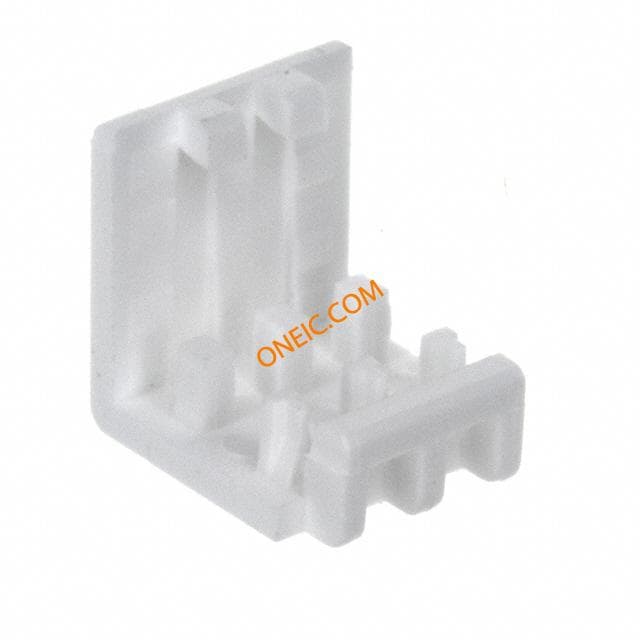

643075-3
