3-647017-8
| Manufacturer | |
| Description | Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 24AWG .100 WHITE Headers & Wire Housings 08P MTA100 PSTD CONN ASSY LF 08P MTA100 PSTD CONN ASSY LF |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | White | Pitch | 2.54 mm |
| Height | 12.55 mm [ .494 in ] | Length | 22.86 mm [ .9 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 24 AWG |
| Termination | IDT | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | Wire | Number of Rows | 1 |
| Plating - Body | Nickel | Connector Usage | Receptacle |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | 100 | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 8 | Termination Finish | 带有 |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 8 |
| Compatible Shell Size | 标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 15µin (0.38µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.2² [24] |
| Static Discharge Shielding | 带有 | Jacket (Insulation) Thickness | 1.27 µm, 50 µin |
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-100 | Features | Closed End |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
640550-8
te connectivity / amp
Connector Accessories 8 POS Closed End Dust Cover Polyester White MTA, CST and SL Accessories CONN DUST COVER 8POS CLOSED Headers & Wire Housings DUST COVER 8P Closed End Connector Accessories 8 POS Closed End Dust Cover Polyester White Product Highlights:Dust CoverWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 8Used For MTA-100 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP DUST COVER, 8WAY DustCover;ClosedEnd;8;White;AMPBrand;MTA-100Connector Protection cover; MTA-100; PIN:8; Mat: polyester; UL94V-0 Cover 8P, 640550-8, TE Connectivity TE Connectivity IDC 连接器 08P MTA100 COVER

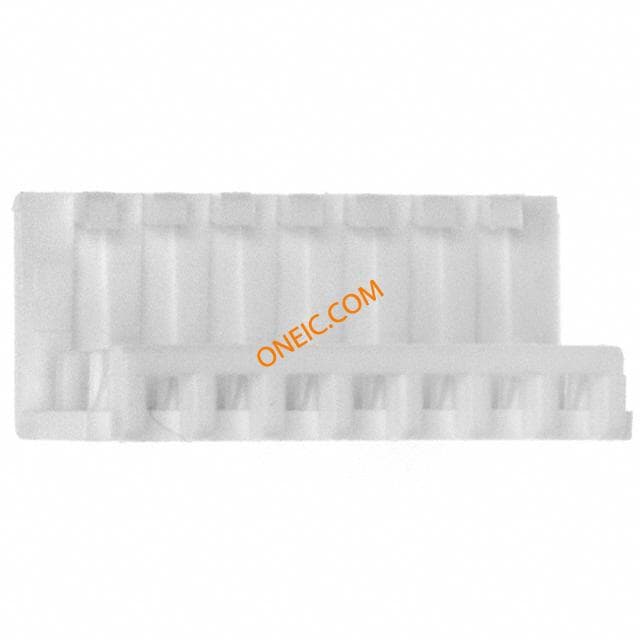

643075-8
