3-535542-1
| Manufacturer | |
| Description | Conn Socket Strip SKT 62 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 62POS .100 VERT DUAL 62 MODIV VRT DR CE 100/130 |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL-C-55032 | 否 |
| Standard Number | CSA LR7189, UL E28476 | Material Flammability Rating | UL 94V-0 |
Electrical
| Contact Resistance | 12 | Resistance - Input | 5000 |
| Voltage - Clamping | 750 | Voltage - Rated AC | 333 |
| Connector Impedance | 不带 | Current Rating (Max) | 3 |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 5.03 mm [ .198 in ] | Packaging | Tube |
| Body Color | 黑色 | Lead Style | 正方形 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Female Socket | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | 低 | Number of Rows | 2 |
| Pressure (PSI) | 标准 | Terminal Style | 短点 |
| Connector Usage | 底部或顶部 | Insert Material | 磷青铜 |
| Housing Material | 聚酯 - GF | Package Quantity | 7 |
| Panel Mount Type | 通孔 - 焊接 | Pitch - Connector | .15 |
| Termination Style | 插座 | Number of Contacts | 62 |
| Contact Tail Length | 3.18 | Number of Positions | 62 |
| Bushing, Grommet Type | 不带 | Compatible Shell Size | 与接头配合 |
| Termination Post Length | 3.3 mm [ .13 in ] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Note | TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。 | Type | Socket Strip |
| Gender | SKT | Series | AMPMODU, MOD IV |
| Sealable | 否 | Stackable | 是 |
| Product Type | 连接器 | Assembly Configuration | 板支座 |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 否 | Operating Temperature | -65 – 125 |
| Thermal Resistance of Package | 1.57 mm [ .062 in ] | ||
Similar Parts
4-103801-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
9-103326-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
4-103330-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
9-103330-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
4-102979-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
9-146309-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
4-102975-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
9-102975-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
4-103324-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
9-103324-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
9-146258-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS STR
4-103328-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS STR
9-146254-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS STR
4-103322-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS STR
9-146250-0-31
TE Connectivity
CONN HDR BRKWAY .100 62POS VERT
9-103795-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS R/A
9-146252-0-31
TE Connectivity
CONN HEADR BRKWAY .100 62POS STR

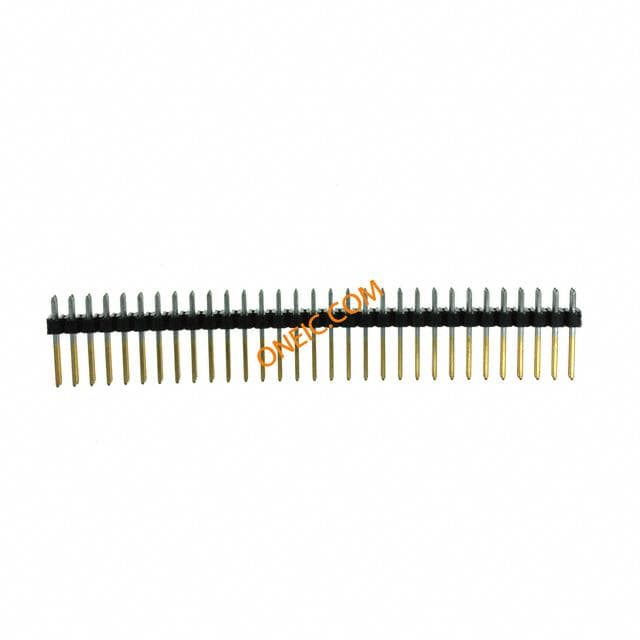

4-102977-0-31
