3-350819-2
| Manufacturer | |
| Description | Quick Disconnect Terminal 14-16AWG F 21.71mm 10.38mm Tin Strip on Reel Terminals .250 FASTON Ultra-Fast Receptacles & Tabs CONN RECEPT FAST 14-16 AWG .250 Receptacle terminal,Ultra-Fast 250, blue Terminals .250 FASTON Reel of 2200 Quick Disconnect Terminal 14-16AWG F 21.71mm 10.38mm Tin Strip on Reel Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, FEMALE DISCONNECT, 6.35MM, 16-14AWG, BLUE TERMINAL, FEMALE DISCONNECT, 6.35MM, 16-14AWG, BLUE, FULL REEL CONNECTOR,RECEPTACLE,ULTRAFASTPLUS250,16-14AWG Ultra Fast 16-14 AWG Straight Fully Insulated Receptacle Assembly ULTRA-FAST 250 ASY REC 16-14 AWG TPBR |
| Category |
Business
| Product | Faston Terminals | Other Names | A27824CT |
| Product Category | Terminals | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2200 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Mechanical
| Color | Blue | Depth | 10.38 mm |
| Finish | Tin | Weight | 0.002 |
| Plating | Tin | Material | Brass |
| Packaging | Reel | Tab Width | 5.16 mm² |
| Insulation | Insulated | Wire Gauge | 14-16 AWG |
| Termination | Crimp | Body Material | Brass |
| Mounting Type | Free Hanging (In-Line) | Stud/Tab Size | 0.25 in x 0.032 in |
| Tab Thickness | 0.032" (0.81mm) | Terminal Type | Standard |
| Connector Type | :Female Disconnect | Contact Finish | Tin |
| Plating - Body | Tin | Connector Style | Straight |
| Contact Material | Brass | Insulation Color | :Blue |
| Length - Overall | 0.855" (21.72mm) | Package Quantity | Strip |
| Insulation Height | Non-Insulation Support | Insulation Diameter | 4.06 [.160] Max. |
| Insulation Material | Nylon | Material - Insulation | Yes |
| Wire Gauge or Range - AWG | :16AWG | Wire Gauge or Range - mm2 | 1.25-2.00² [16-14] |
Product Info
| Type | Quick Disconnect Terminal | Gender | F |
| Series | 250 | CAD Drawing | 3D CAD Model |
| Applications | Standard | Product Type | Receptacle |
| Proprietary Name | Ultra-Fast | ||
Documents & Media
Similar Parts
60465-2
te connectivity / amp
Quick Disconnect Terminal M 15.14mm 7.49mm Tin Loose Piece Terminals .250 FAST TAB Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FASTON .250 TIN PL BR Tab terminal, stud mount,FASTON 250, 45° Quick Disconnect Terminal M 15.14mm 7.49mm Tin Loose Piece Product Highlights:TabTab Type = Stud MountConnection Type = SingleTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL, FASTON TAB, 6.35 X 0.81MM FASTONTABSLP,.250FASTTABTPBR Terminal: flat; 6.35mm; 0.8mm; male; Ø:4.3mm; angled 45° Faston Single Non-Insulated Quick Disconnect Tab Stud Mount TE Connectivity FASTON .250 系列 45° 螺栓安装插片接线端子, 6.35 x 0.81mm, 镀锡触芯 FASTON .250 SERIES (6.3 MM) TAB TPBR
63824-1
te connectivity / amp
Quick Disconnect Terminal M 13.63mm 7.92mm Tin Over Copper/Tin Over Nickel Strip Terminals .25 PCB TAB 032TPBR Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FAST TIN PCB .250 Tab terminal, PCB, FASTON 250, straight Terminals .25 PCB TAB 032TPBR Reel of 10000 Quick Disconnect Terminal M 13.63mm 7.92mm Tin Over Copper/Tin Over Nickel Strip Product Highlights:TabTab Type = Printed Circuit BoardTab Fit = 6.35 x 0.81 mmBrass MaterialTin FinishSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL, MALE DISCONNECT, 6.35MM, CRIMP PCBTABSSTRIP,250PCBTAB032TPBR 6.35 x 0.83mm 非绝缘 焊接焊头端子, 镀镀锡铜/镍触点 FASTON 250 PCB TAB TPBR
58269-3
te connectivity / amp
DIE ASSY ULTRA FAST 16-14 Punches & Dies DIE ASSY ULTRA FAST 16-14 DIE ASSY ULTRA FAST 16-14AWG

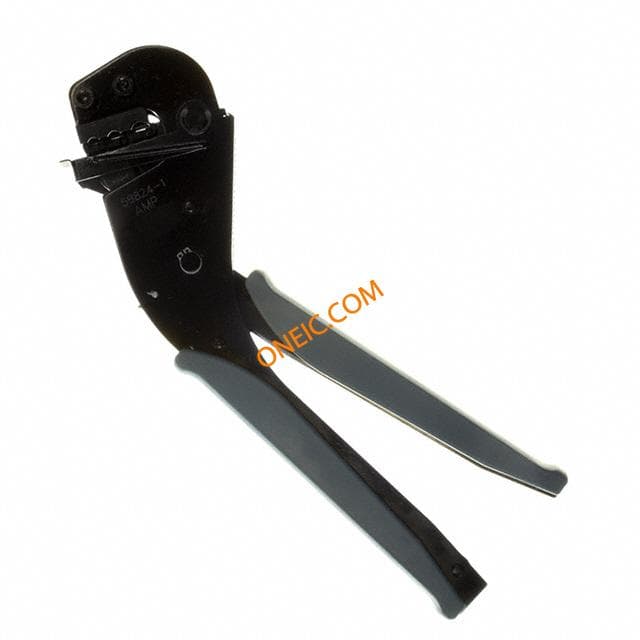

59824-1
