3-1761605-5
| Manufacturer | |
| Description | Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS 30AU Headers & Wire Housings HDR R/A 50P 30 AU LOW PRO Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 50P RA BLUE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 | Resistance - Input | 1000 – 5000 |
| Connector Impedance | Top | Current Rating (Max) | 1 |
| Link Range, Low Power | 带有 | ||
Mechanical
| Color | Blue | Pitch | 2.54 mm |
| Height | 8.89 mm [ .35 in ] | Length | 71.12 mm [ 2.8 in ] |
| Base Type | 不带 | Packaging | Bulk |
| Shrouding | Yes | Body Color | 蓝色 |
| End - Size | 3.81 mm [ .15 in ] | Lead Style | 直角 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Blue |
| Mounting Type | Right Angle | Connector Type | Pin Header |
| Contact Finish | Gold Over Nickel | Mounting Style | 低 |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Shell Material | 4 面 | Actuation Force | 不带 |
| Insert Material | 磷青铜 | Profile (W x H) | Low |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 3.81 [0.150] | Package Quantity | 50 |
| Panel Mount Type | 通孔 | Size / Dimension | 0.64 [.025] |
| Termination Style | 插针 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Mating Orientation | With |
| Number of Contacts | 50 | Number of Positions | 50 |
| Compatible Shell Size | AMP 锁闩母端 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 2.60 [0.102] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMP-LATCH | Polarity | 带有 |
| Product Type | Headers | Other Specifications | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Rating | Standard | Operating Temperature | 高 |
Documents & Media
Similar Parts
1-1658622-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 50POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,50way Headers & Wire Housings 50PIN RIB CBL RCPT Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Connector,Receptacle;Novo;50position,Gold(30);LeadFree TE Connectivity AMP-LATCH Novo 系列 2行 50路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 50 NOVO MIL/CTR 30DP,LEAD FREE

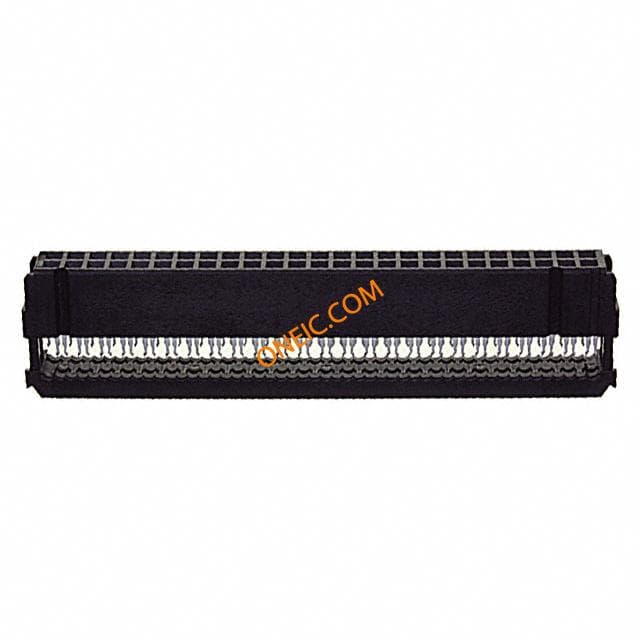

1-1658623-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS GOLD AMP-LATCHNOVOConnector,Receptacle,50Pos. AMP-LATCH NOVO Connector; Receptacle; 50 Pos.; Military Polarization; Black Headers & Wire Housings .1CL IDC REC 2X25P 30AU Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle50 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board AMP-LATCHNOVOConnector,Receptacle,50Pos.,MilitaryPolarization,Black 50 NOVO MIL 30DP, LEAD FREE

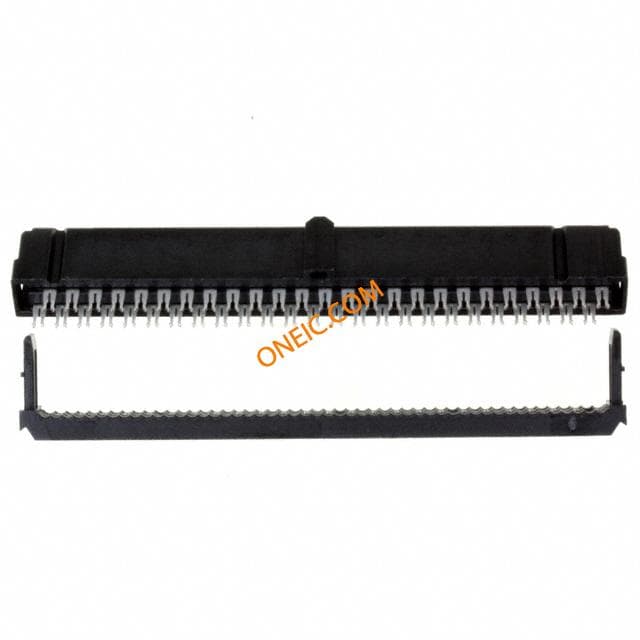

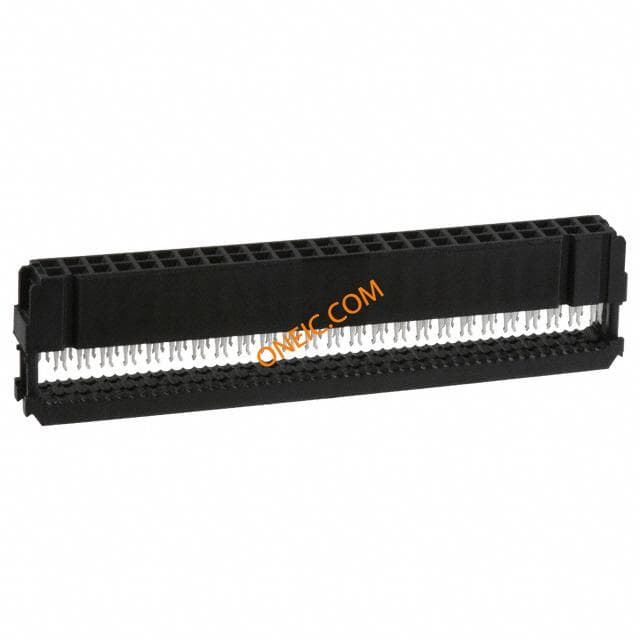

1-1658620-0
te connectivity / amp
Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS 15 GOLD Connector,Receptacle,Novo,50,Gold(15) Headers & Wire Housings MLTRY PLRZD RECPT 50 NOVO Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Connector,Receptacle;Novo;50;Gold(15);Tin-Lead;0.100in.x0.100in. 50 NOVO MIL 15DP, LEAD FREE

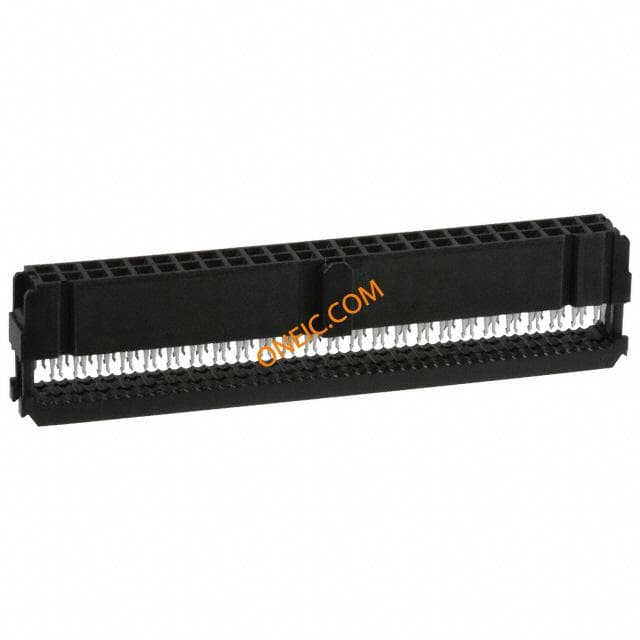

1-1658621-0
