284513-8
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 3.81mm Solder RA Thru-Hole Pluggable Terminal Blocks HDR 08P R/A GRN C/E Terminal Block Connectors TERM BLOCK HDR 8POS R/A 3.81MM Conn Shrouded Header HDR 8 POS 3.81mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 3.81mm 节距 8 路 公 绿色 直 PCB 管座, 印刷电路板安装, 螺钉端接 8 POS TERMI-BLOK HDR 900 POL. |
| Category |
Business
| Product | Pluggable Terminal Blocks | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 11A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current Rating (Max) | 11 A | Voltage - Supply (Min) | 300VAC |
Mechanical
| Color | Green | Depth | 9.2 mm |
| Pitch | 3.81 mm | Width | 9.2mm |
| Height | 7.3 mm | Length | 32.77mm |
| Material | 尼龙 | End Style | 带有 |
| Packaging | Bulk | Body Color | 绿色 |
| Lead Style | Right angle | Orientation | 直 |
| Termination | Solder | Length - Pin | 3.4 mm [ .134 in ] |
| 2nd Connector | 否 | Housing Color | Green |
| Mounting Type | Right | Connector Type | 公插 |
| Contact Finish | Tin | Flange Feature | 是 |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA) | Length - Overall | 32.77 mm |
| Package Quantity | 100 | Termination Rows | 螺钉 |
| Termination Style | Screw | Header Orientation | 90°, Right Angle |
| Number of Contacts | 8 | Number of Positions | 8 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | Thread/Screw/Hole Size | 不带 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | Buchanan | Number of Levels | 1 |
| Interconnect System | 不带 | Positions Per Level | 8 |
| Side-by-Side Stacking | 否 | ||
Documents & Media
Similar Parts
284509-8
te connectivity / amp
Conn Terminal Block F 8 POS 3.81mm Screw RA Cable Mount 11A/Contact Pluggable Terminal Blocks 8P TERMI-BLOK PLUG STACK 3,8 Terminal Block Connectors TERM BLOCK PLUG 8POS STR 3.81MM 8P TERMI-BLOK PLUG STACK 3,8 8P TERMI-BLOK PLUG STACK 3,8 Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end

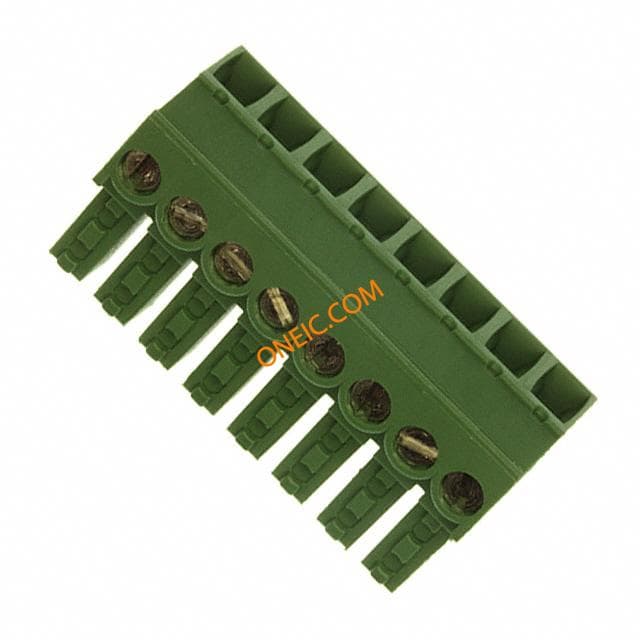

284507-8
te connectivity / amp
Conn Terminal Block PL 8 POS 3.81mm Solder RA Thru-Hole 11A/Contact Terminal Block Connectors TERM BLOCK PLUG 8POS STR 3.81MM Pluggable Terminal Blocks 8 POS TERMI-BLOK PLU Conn Terminal Blocks PL 8 POS 3.81mm Solder RA Thru-Hole 11A/Contact Conn Terminal Block PL 8 POS 3.81mm Solder RA Thru-Hole 11A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 3.81mm 节距 8 路 公 绿色 直 插头, 电缆安装, 螺钉夹端接 8 POS TERMI-BLOK PLUG STAC 3,8

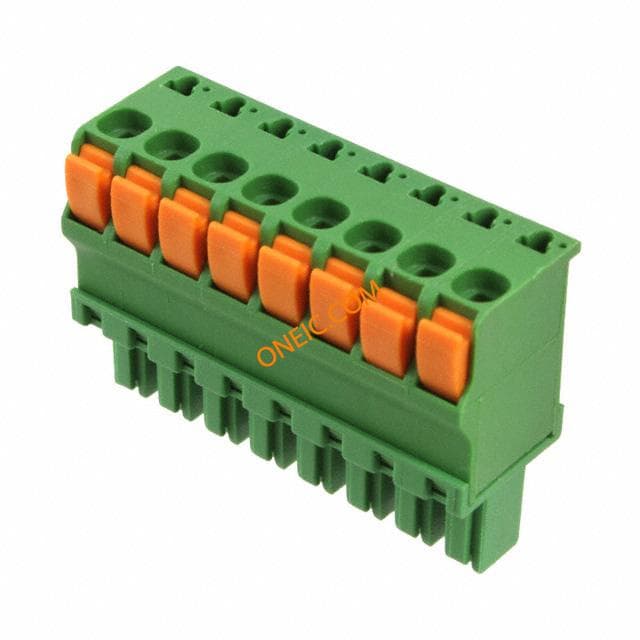

1986720-8
TE Connectivity
プラグ着脱可能ターミナルブロック 3.81MM R/HAND 8 POS STR SPRING PLG TERM BLOCK PLUG 8POS STR 3.81MM Pluggable Terminal Blocks 3.81MM R/HAND 8 POS STR SPRING PLG STR PLUG SPRING TYPE RH 8P, 3.81mm STR PLUG SPRING TYPE RH 8P, 3.81mm Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUG, 8POS, 30-14AWG

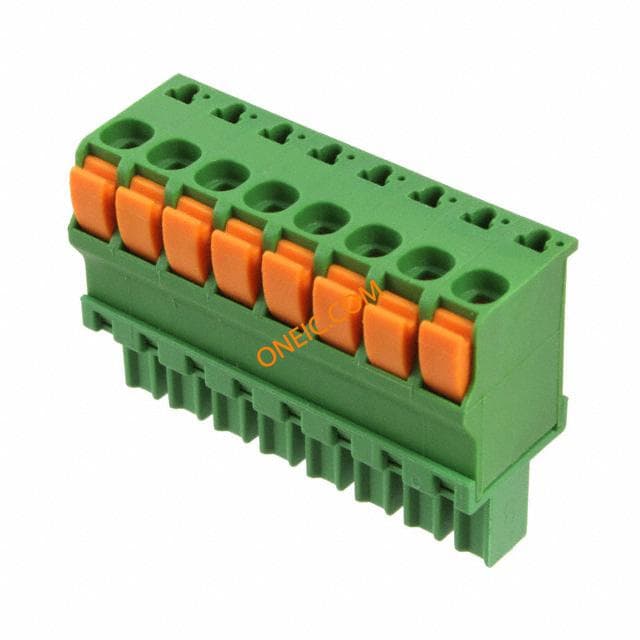

1986722-8
